Description

Price

6

Socket Screw M10 x 30 | XT

205003044

$3.17

8

Socket Head Screw M8 X 20

205082044

$1.15

9

HEX. SCREW M4 X 10 - Call your local BRP dealership | XT

207141044

Unavailable

10

Hex. Screw M4 X 25

207142544

$2.00

11

Hex. Cap Screw M6 X 12

207161260

$1.26

13

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

15

Hex. Flange Screw M6 X 20

207662044

$2.00

16

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

18

Hex. Nut M6

232061600

$1.15

19

Elastic Stop Nut M4

232541414

$0.58

22

Elastic Stop Nut M6

232561434

$1.99

23

Elastic Stop Nut M6

232561434

$1.99

24

Hex. Flange Nut M6

233061414

$1.68

25

Hex. Flange Elastic Nut M10

233201414

$1.58

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Flat Washer M5

234051410

$0.53

31

Flat Washer 6 mm

234062410

$0.77

32

Lock Washer 4 mm

234141601

$1.15

34

Lock Washer Helical M6

234161601

$1.15

35

Lock Washer 8 mm

234181401

$0.92

36

External Serrated Lock Washer 6 mm

234461608

$1.15

37

Hex. Screw K50 X 45

241154540

$2.11

38

Panel Nut M6 X 1.0

250100198

$2.11

40

Phillips Screw K40 X 16

250000723

$0.98

43

Torx Screw K50 X 16

250000720

$1.69

44

Torx Screw M6 X 16

250000223

$2.11

53

Clevis Pin

250400021

$13.18

54

Cotter Pin

250400022

$9.69

55

Clip

270000141

$11.49

56

NEGATIVE CABLE - Call your local BRP dealership | XT

710004386

Unavailable

60

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

75

Diagnostic Connector

278002704

$19.49

79

Starter Relay

278003012

$42.49

80

Pop Rivet 3/16"

293150103

$0.55

82

Mount Dart

293730040

$1.04

130

Tie Wrap 368 mm

293750008

$1.04

130

Tie-Rap 180 mm

414115200

$0.11

149

Tie-Rap 173 mm

293750009

$1.04

164

Pop Rivet 3/16"

390402400

$0.35

197

Clip

414227300

$1.67

198

Electrical Winch Cable | XT

710004387

$49.99

210

Winch Hook Kit

705014949

$24.99

211

WINCH - Call your local BRP dealership | XT

705003944

Unavailable

215

WINCH CABLE GUIDE - Call your local BRP dealership | XT

715001119

Unavailable

256

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

257

Flat Washer 6 mm

234062410

$0.77

261

Clip

710000992

$4.29

265

Winch Connector

710001023

$51.99

269

LH High Light Support

710001036

$5.29

269

RH High Light Support

710001115

$5.29

270

LH Low Light Support

710001037

$9.09

270

RH Low Light Support

710001094

$9.09

275

RH Low Front Housing

710001081

$19.99

275

LH Low Front Housing

710001083

$19.99

276

RH Low Rear Housing

710001082

$12.99

276

LH Low Rear Housing

710001084

$12.99

279

RH High Front Housing

710001085

$19.99

279

LH High Front Housing

710001087

$19.99

280

RH High Rear Housing

710001086

$12.99

280

LH High Rear Housing

710001088

$12.99

284

Setting Screw

710001147

$12.71

285

Setting Screw

710001147

$12.71

291

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

292

DC Outlet

710001248

$37.99

298

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

303

Bulb

520000758

$9.10

309

Hi/Low Switch | Except Europe

710001725

$21.49

314

4X4 Switch

710001737

$31.99

315

Switch DPS

710001781

$22.99

317

Battery Holder

710001916

$21.99

322

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

334

Switch Winch

710002052

$28.49

335

Switch, Over ride

710002053

$19.49

343

Solenoid Kit | XT

715007084

$202.49

357

Positive Cable

710004390

$36.99

358

Positive Cable | Model-DPS

710004393

$35.99

362

CABLE NEG POS - Call your local BRP dealership | Model-XT

710004394

Unavailable

363

POSITIVE CABLE - Call your local BRP dealership | STD, X

710002148

Unavailable

374

Ignition Switch

710008400

$78.49

380

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

380a

Halogen Bulb

415129249

$41.49

381

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

381a

Halogen Bulb

415129249

$41.49

435

Engine Start Button

710002594

$60.49

445

Rear Harness | Except Europe

710003219

$159.99

507

Fuse Holder

710003335

$10.11

543

Cablage Ass. *Harness-Assy.

710004333

$1,029.99

546

Speedometer

710005087

$399.99

546a

Trim Ring Ass'y

710001183

$19.99

546b

BRP Logo13 mm

704904615

$13.49

546c

Button

715900265

$13.71

552

Speedometer Ass'y | Model-XT

710005116

$439.99

552a

Gauge Ring

415129348

$13.99

552b

Lens | XTP

415129349

$24.49

552c

Speedometer Button | XTP

415129355

$15.80

553

Switch PPS Sport

710003541

$19.49

554

Cap

710003582

$11.99

556

Battery Rubber Pad

710003602

$12.99

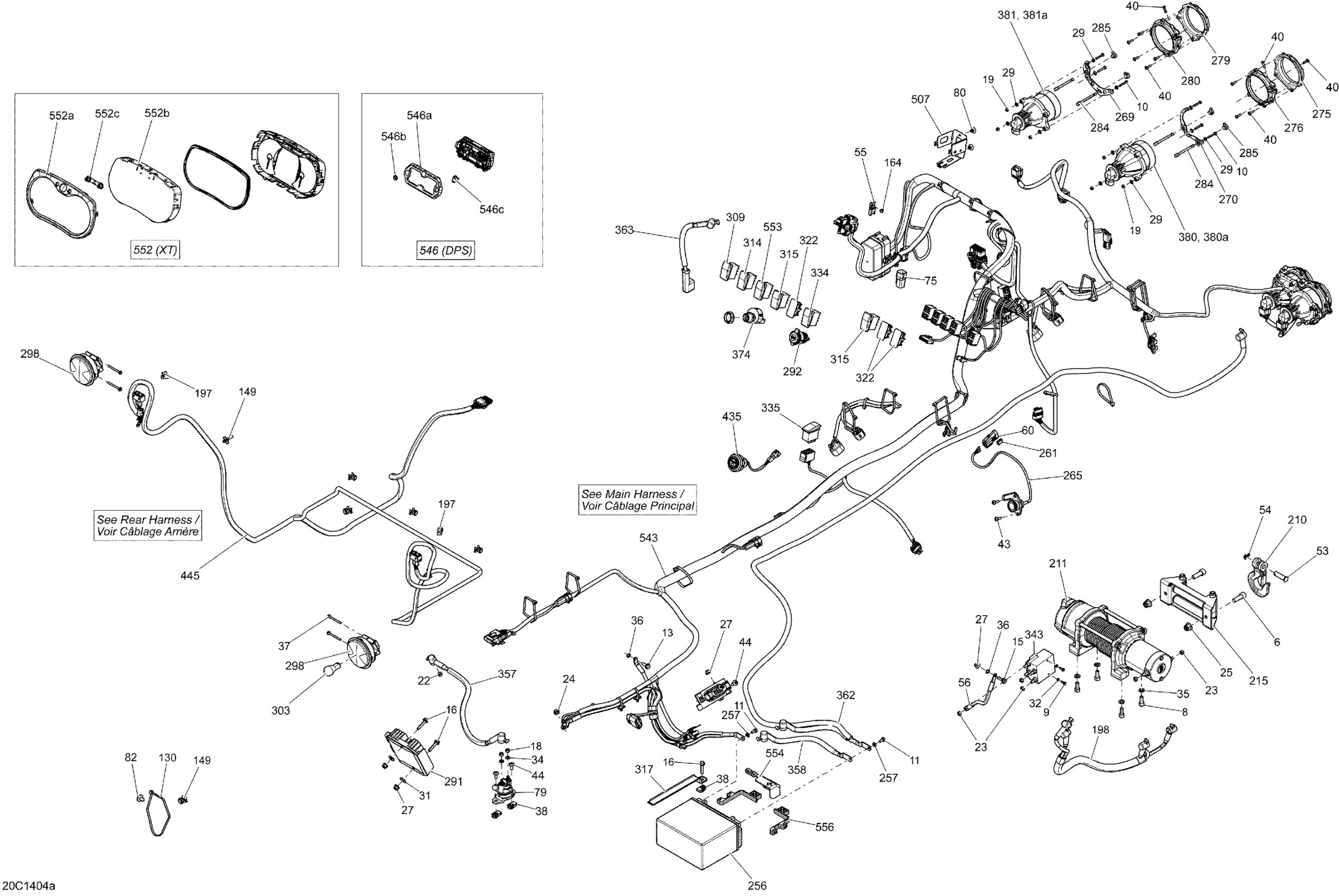

Can-Am Commander MAX 1000_DPS, XT, 2014 10- Electrical System _20C1404 Diagram
