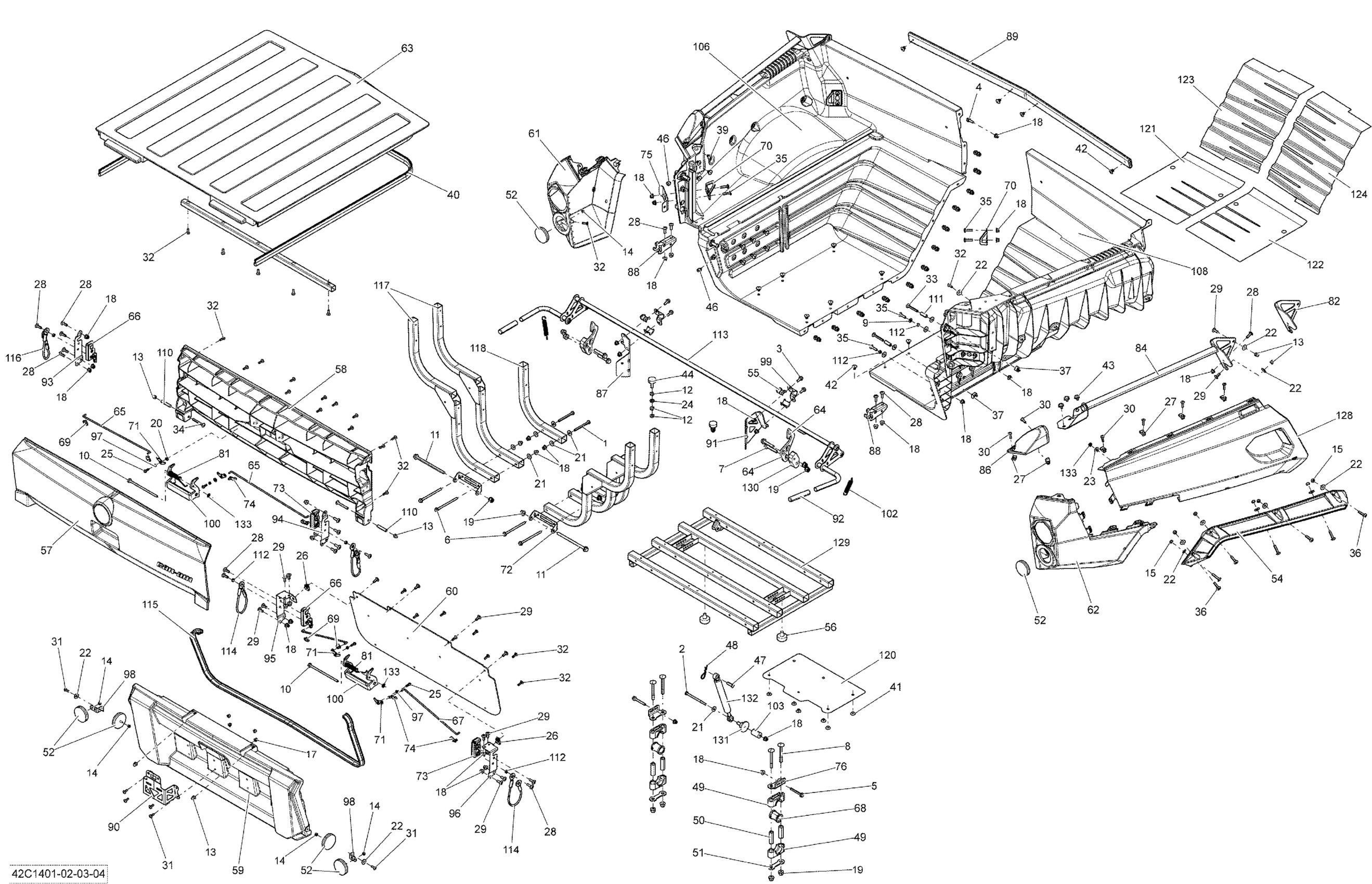

Can-Am Commander MAX 1000_DPS, XT, 2014 09- Rear Cargo Box _42C1404 Diagram

Hex. Screw M6 X 65

207066544

$0.46

Hex. Screw M6 X 90

207069044

$4.87

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M6 X 50

207665044

$4.12

Hex. Flange Screw M6 X 95

207669584

$3.38

Hex. Flange Screw M8 X 45

207684586

$3.17

Carriage Bolt M8 X 70

207787044

$1.37

Flat Washer

224061121

$0.53

Hex. Flange Screw M6 X 130

230663084

$3.38

Hex. Flange Screw M8 X 130

230683034

$7.51

Hex. Jam Nut M8

232180600

$0.67

Domed Nut M6

232361493

$2.11

Elastic Stop Nut M5

232551414

$0.87

Elastic Stop Nut M6

232561434

$1.99

Hex. Elastic Stop Nut M6

232561600

$1.15

Not Available As Spare Parts

XXX

Unavailable

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Elastic Nut M8

233281414

$1.47

Flat Washer 6 mm

234061410

$1.36

Flat Washer 6 mm

234062410

$0.77

Stainless Steel Flat Washer

234062670

$2.11

Flat Washer 8 mm, Nylon

234081100

$1.39

Lock Washer 8 mm

234181401

$0.92

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

Panel Nut M6 X 1.0

250100198

$2.11

Panel Nut M5 X 0.8

250000958

$4.23

Torx Screw M6 X 20

250000722

$1.68

Torx Truss Screw M6 X 16

250000721

$1.69

Torx Screw M5 X 20

250000724

$1.69

Not Available As Spare Parts

XXX

Unavailable

Torx Screw K50 X 16

250000720

$1.69

Torx Screw M6 X 45

250000215

$1.90

Torx Truss Screw M6 X 50

250000749

$3.17

Torx Screw M6 x 25

250000284

$2.11

Stainless, Torx Screw M6 X 30

250000842

$2.11

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

Pop Rivet 3/16"

293150100

$1.09

Was 293250240 Neoprene Seal

219704451

$60.49

Pop Rivet 3/16"

293150103

$0.55

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Pop Rivet 3/16 | XT

293150190

$5.89

Frame Rubber Bumper

293720091

$9.39

Rubber Bumper

293830005

$8.09

Pin

414079100

$2.39

Hair Pin

414575600

$1.89

Housing Half

506150400

$7.62

Housing Bushing

506150500

$7.99

Stopper Plate

506150600

$4.39

Red Reflector

705011221

$14.49

LH Upper Rear Mudguards | LTD

705008671

$34.99

RH Upper Rear Mudguards | LTD

705008673

$34.99

Half Ring

705500033

$8.29

Rubber Stopper

708000884

$6.89

Yellow Outside Top Pannel | X, Yellow

708301256

$164.99

CAMO OUTSIDE TOP PANNEL - Call your local BRP dealership | XT Camo

708300442

Unavailable

MAGNESIUM OUTSIDE TOP PANNEL - Call your local BRP dealership

708300552

Unavailable

Inside Top Pannel

708300053

$139.99

Outside Bottom Pannel Ass'y

715002365

$154.99

INSIDE BOTTOM PANNEL - Call your local BRP dealership

708300073

Unavailable

LH Rear Facia

708301383

$23.99

RH Rear Facia

708301384

$23.99

Separator Pannel Ass'y | Includes 16 to 17

708300131

$279.99

Box Retainer

708300136

$8.69

Top Rod

708300160

$3.39

LH Latch

708300162

$23.99

Lower Bottom Rod

708300164

$3.39

Pivot Bushing

708300172

$4.79

LH Tie Rod Clip

708300182

$2.89

Retaining Plate

708300183

$9.69

Activator

708300184

$9.29

Bracket Pivot

708300185

$4.79

RH Latch

708300201

$23.99

RH Tie Rod Clip

708300202

$2.89

Retaining Plate Support

708300206

$5.19

Adjustable Stopper Plate

708300210

$4.79

LH Rear Facia

708301383

$23.99

Not Available As Spare Parts

XXX

Unavailable

RH Rear Facia

708301384

$23.99

Not Available As Spare Parts

XXX

Unavailable

Spring

708300219

$4.79

LH Painted Rail Cap | Except XT

708300333

$15.99

LH Welded Rail | XT

708300231

$74.99

RH Welded Rail | XT

708300232

$74.99

LH RAIL COVER - Call your local BRP dealership | XT

708300233

Unavailable

RH RAIL COVER - Call your local BRP dealership | XT

708300234

Unavailable

LH Latch Lever Support

708300278

$9.69

Upper Pivot Support

708300345

$4.79

Front Support

708301633

$28.99

Not Available As Spare Parts

XXX

Unavailable

RH Latch Lever Support

708300351

$9.69

Cap Latch Lever

708300358

$6.59

LH Upper Support

708300359

$10.49

RH Upper Support

708300360

$9.49

LH Lower Support

708300361

$10.99

RH Lower Support

708300362

$9.69

Bushing

708300365

$5.89

Not Available As Spare Parts

XXX

Unavailable

Clamp Reatiner

708300392

$2.68

Handle

708300398

$13.99

Not Available As Spare Parts

XXX

Unavailable

Spring

708300454

$4.79

Spacer

708300470

$7.73

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Left Box Kit

715002361

$214.99

RH Box Ass'y

715001257

$129.99

Bushing

708300735

$13.49

Spacer

708300736

$9.69

Bushing

708300737

$5.99

Cargo Handle Ass'y

708300751

$72.99

Lower Retainer Cable

708300762

$16.99

Was 293250240 Neoprene Seal

219704451

$60.49

Upper Retainer Cable

708300763

$33.99

Black Welded Lateral Support

708300879

$49.99

Black Lateral Support

708300877

$184.99

Heat Deflector

708300780

$13.99

Heat Deflector Sheet

708300809

$10.99

Heat Deflector Sheet

708300810

$10.99

Heat Deflector Sheet

708300811

$9.69

Heat Deflector Sheet

708300812

$10.99

Yellow LH Rear Fender | STD

708301242

$139.99

FENDER REAR L B-005 - Call your local BRP dealership | XT Camo

708300834

Unavailable

FENDER REAR L B-321 - Call your local BRP dealership | LTD Model

708300838

Unavailable

YELLOW RH REAR FENDER - Call your local BRP dealership | STD

708301243

Unavailable

FENDER REAR R B-005 - Call your local BRP dealership | XT Camo

708300835

Unavailable

FENDER REAR R B-321 - Call your local BRP dealership | LTD Model

708300839

Unavailable

Yellow LH Rear Fender | STD

708301242

$139.99

YELLOW RH REAR FENDER - Call your local BRP dealership | STD

708301243

Unavailable

Black Box Support

708300875

$309.99

Spacer

708300902

$9.69

Spacer

708301059

$19.49

Gaz Shock

708301136

$39.99

Push Nut

732610072

$2.19
