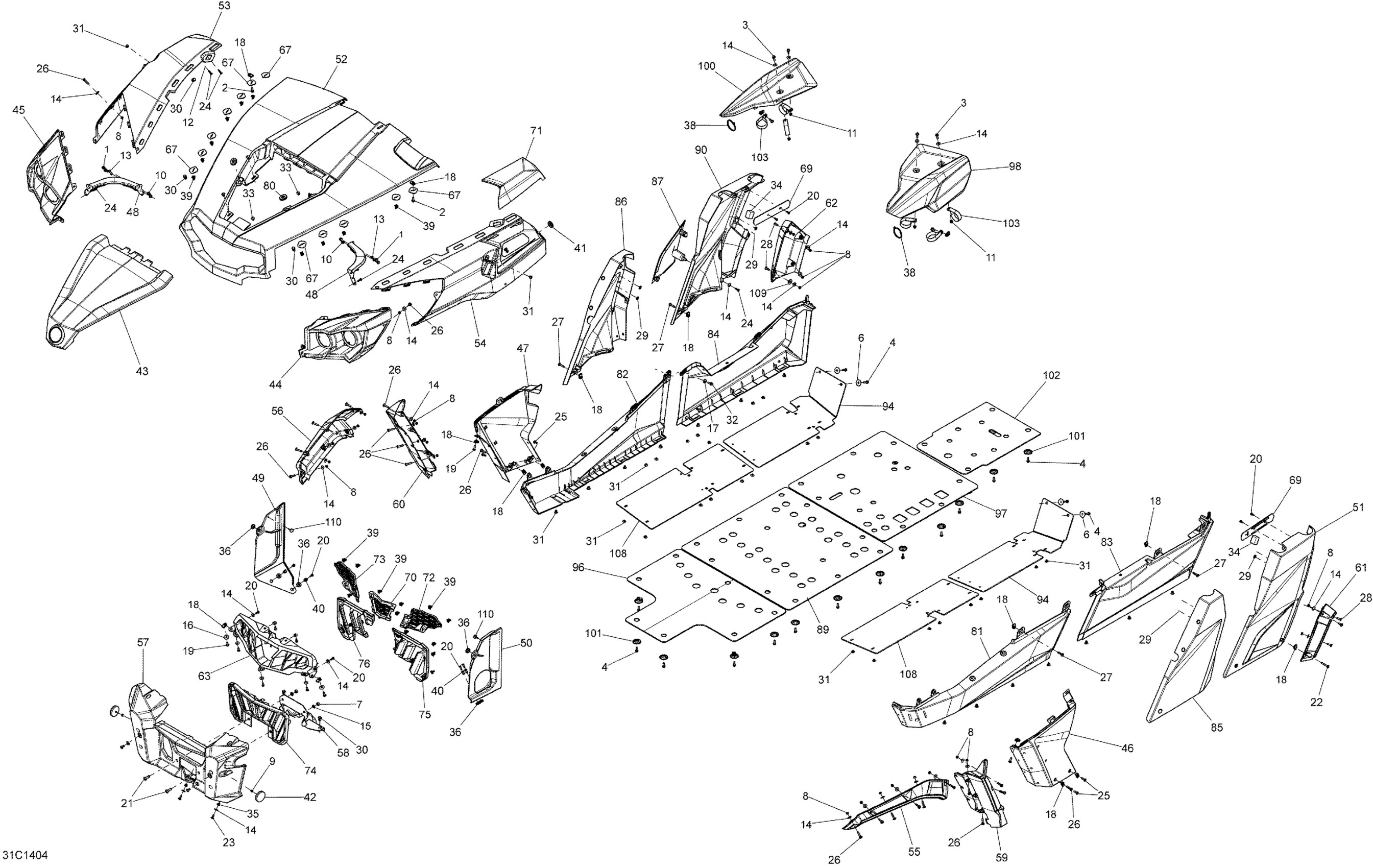

Can-Am Commander MAX 1000_DPS, XT, 2014 09- Body And Accessories _31C1404 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Hex. Flange Screw M6 X 20

207662044

$2.00

3

Hex. Flange Screw M6 X 20

207662084

$1.69

4

Hexagonal Head Screw

210262050

$2.11

6

Flat Washer

224081301

$0.88

7

Hex. Nut M8

232081414

$0.72

8

Elastic Stop Nut M6

232561434

$1.99

9

Flange Elastic Nut M5

233251434

$2.00

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Hex. Flange Elastic Nut M6

233261494

$1.58

12

Flat Washer M5

234051410

$0.53

13

Stainless Flat Washer M6

234061600

$0.33

14

Stainless Steel Flat Washer

234062670

$2.11

15

Flat Washer 8 mm

234081410

$0.83

16

Flat Washer 8 mm

234082410

$1.47

17

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

18

Panel Nut M6 X 1.0

250100198

$2.11

19

Torx Screw M6 X 20

250000722

$1.68

20

Torx Screw K50 X 16

250000720

$1.69

21

Hex Torx Truss M8 X30

250000745

$3.17

22

Torx Screw M6 X 45

250000215

$1.90

23

Torx Screw M6 X 16

250000755

$0.87

24

Truss Head Torx Screw K50 X 20

250000297

$2.11

25

Torx Truss Screw M6 X 20

250000350

$5.29

26

Stainless, Torx Screw M6 X 30

250000842

$2.11

27

Torx Truss Screw M6 X 30

250000843

$2.11

28

Torx Truss Screw M6 X 20

250000488

$2.11

29

Oval Washer

705005156

$4.97

30

Tuflok Plastic Rivet

293150230

$1.47

31

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

32

Washer M5

250200025

$0.74

33

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

34

SEAL TRAY - Call your local BRP dealership

293250318

Unavailable

35

Threaded Insert M6 X 1.0

250100242

Unavailable

36

Grommet

709000582

$4.69

38

Tie Wrap 368 mm

293750008

$1.04

39

Edge Clip

517302785

$0.88

40

Knob

517303439

$4.55

41

Grommet

517303756

$4.09

42

Amber Reflector | Except Europe Model

705011222

$14.49

43

YELLOW REMOVABLE HOOD - Call your local BRP dealership | Yellow Models

705007072

Unavailable

43

HOOD B-005 - Call your local BRP dealership | Camo Models

705007075

Unavailable

43

MAGNESIUM REMOVABLE HOOD - Call your local BRP dealership

705007076

Unavailable

44

LH Front Facia

705002885

$74.99

45

RH Front Facia

705002886

$74.99

46

YELLOW LH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007846

Unavailable

46

PANEL_BODY FL B-005 - Call your local BRP dealership | Camo Models

705006378

Unavailable

46

LEFT PANEL - Call your local BRP dealership

705009306

Unavailable

47

YELLOW RH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007845

Unavailable

47

PANEL_BODY FR B-005 - Call your local BRP dealership | Camo Models

705006379

Unavailable

47

MAGNESIUM RH FRONT LATERAL PANNEL - Call your local BRP dealership

705006383

Unavailable

48

Facia Front Support

705002891

$38.99

49

RH Deflector

705002894

$19.99

50

LH Deflector | Except XT Models

705002895

$19.99

50

LH Deflector | XT

705005113

$16.99

51

YELLOW LH REAR LATERAL PANEL - Call your local BRP dealership | Yellow Models

705007864

Unavailable

51

PANEL_BODY REAR L B-005 - Call your local BRP dealership | Camo Models

705006122

Unavailable

51

MAGNESIUM LH REAR LATERAL PANNEL - Call your local BRP dealership

705006126

Unavailable

52

HOOD B-190 - Call your local BRP dealership | Yellow Models, Black Models

705008187

Unavailable

52

HOOD B-005 - Call your local BRP dealership | Camo Models

705004380

Unavailable

52

HOOD - Call your local BRP dealership

705009304

Unavailable

53

YELLOW RH FRONT FENDER - Call your local BRP dealership | Yellow Models

705008195

Unavailable

53

FENDER FR B-005 - Call your local BRP dealership | Camo Models

705006769

Unavailable

53

FRONT FENDER - Call your local BRP dealership

705009301

Unavailable

54

YELLOW LH FRONT FENDER - Call your local BRP dealership | Yellow Models

705008194

Unavailable

54

FENDER FL B-005 - Call your local BRP dealership | Camo Models

705006768

Unavailable

54

FRONT FENDER - Call your local BRP dealership

705009299

Unavailable

55

Black, LH Upper Front Mudguard | LTD

705008666

$34.99

56

Black, RH Upper Front Mudguard | LTD

705008667

$34.99

57

Black Front Facia

705008689

$104.99

58

Bottom Deflector | Except XT Models

705003399

$14.99

59

Black, LH Lower Mudguard | LTD

705008668

$34.99

60

Black, RH Lower Mudguard | LTD

705008669

$34.99

61

Black, LH Rear Lower Mudguard | LTD

705008670

$34.99

62

RH Rear Lower Black Mudguard | LTD

705008672

$34.99

63

FASCIA UP B-160 - Call your local BRP dealership

705003629

$20.99

67

Support Plate

705003841

$0.99

69

Support Plate

705004261

$13.49

70

Center Upper Facia Protector

705004336

$4.09

71

Yellow CVT Inlet Cover | Yellow Models

705004337

$16.49

71

CAMO CVT INLET COVER - Call your local BRP dealership | Camo Models

705004382

Unavailable

71

CVT INLET COVE - Call your local BRP dealership

705009302

Unavailable

72

LH Upper Facia Protector

705004350

$4.09

73

RH Upper Facia Protector

705004351

$4.09

74

Lower Front Facia Protector

705004755

$18.49

75

LH Lower Rear Facia Protector

705004819

$18.49

76

RH Lower Rear Facia Protector

705004820

$18.49

80

Oval Washer

705005156

$4.97

81

Black, LH Lower Panel | Model-DPS

705005423

$63.99

81

Black, LH Lower Panel | Model-XT

705007035

$63.99

82

Black, RH Lower Panel | Model-DPS

705005424

$62.99

82

Black, RH Lower Panel | Model-XT

705007036

$62.99

83

Black, LH Rear Lower Panel

705005425

$109.99

84

Black, RH Rear Lower Panel

705005426

$114.99

85

PANEL_CAGE CTRL L B-190 - Call your local BRP dealership | Model-Yellow

705005427

Unavailable

85

CAMO LH CENTER CAGE PANEL - Call your local BRP dealership | Model-Camo

705007022

Unavailable

85

MAGNESIUM LH CENTER CAGE PANEL - Call your local BRP dealership | Model-Magnesium

705007023

Unavailable

86

Yellow RH Center Cage Panel | Model-Yellow

705005428

$73.99

86

CAMO RH CENTER CAGE PANEL - Call your local BRP dealership | Model-Camo

705007024

Unavailable

86

MAGNESIUM RH CENTER CAGE PANEL - Call your local BRP dealership | Model-Magnesium

705007025

Unavailable

87

YELLOW RH PANEL COVER - Call your local BRP dealership | Model-Yellow

705005437

Unavailable

87

CAMO RH PANEL COVER - Call your local BRP dealership | Model-Camo

705007027

Unavailable

87

MAGNESIUM RH PANEL COVER - Call your local BRP dealership | Model-Magnesium

705007028

Unavailable

89

Skid Plate

705009447

$121.49

90

YELLOW RH REAR LATERAL PANNEL - Call your local BRP dealership | Model-DPS

705005948

Unavailable

90

YELLOW RH REAR LATERAL PANNEL - Call your local BRP dealership | Model-XT Yellow

705006874

Unavailable

90

CAMO RH REAR LATERAL PANNEL - Call your local BRP dealership | Model-Camo

705007621

Unavailable

90

MAGNESIUM RH REAR LATERAL PANNEL - Call your local BRP dealership | Model-Magnesium

705007622

Unavailable

94

RH Lateral Skid Plate

705007038

$64.49

96

Middle Protector Plate

705007055

$80.49

97

Rear Protector Plate

705007056

$121.49

98

YELLOW LH TOP CENTER CAGE COVER - Call your local BRP dealership | Model-XT Yellow

705007058

Unavailable

98

Black, LH Top Center Cage Cover | Model-Camo

705008452

$38.99

98

KIT CAGE COVER - Call your local BRP dealership | Model-Magnesium

705008451

Unavailable

100

YELLOW RH TOP CENTER CAGE COVER - Call your local BRP dealership | Model-XT Yellow

705007059

Unavailable

100

Black, RH Top Center Cage Cover | Model-Camo

705008453

$38.99

100

KIT CAGE COVER - Call your local BRP dealership | Model-Magnesium

705008451

Unavailable

101

Cup | Package Hunter

705007171

$7.89

102

Rear Protector Plate

705007227

$31.99

103

"P" Bracket, 2" Dia.

705005626

$27.99

108

Side Protector Plate

705008421

$51.99

109

Hardened Washer

706200281

$2.85

110

Rubber Stopper

708000759

$4.19
