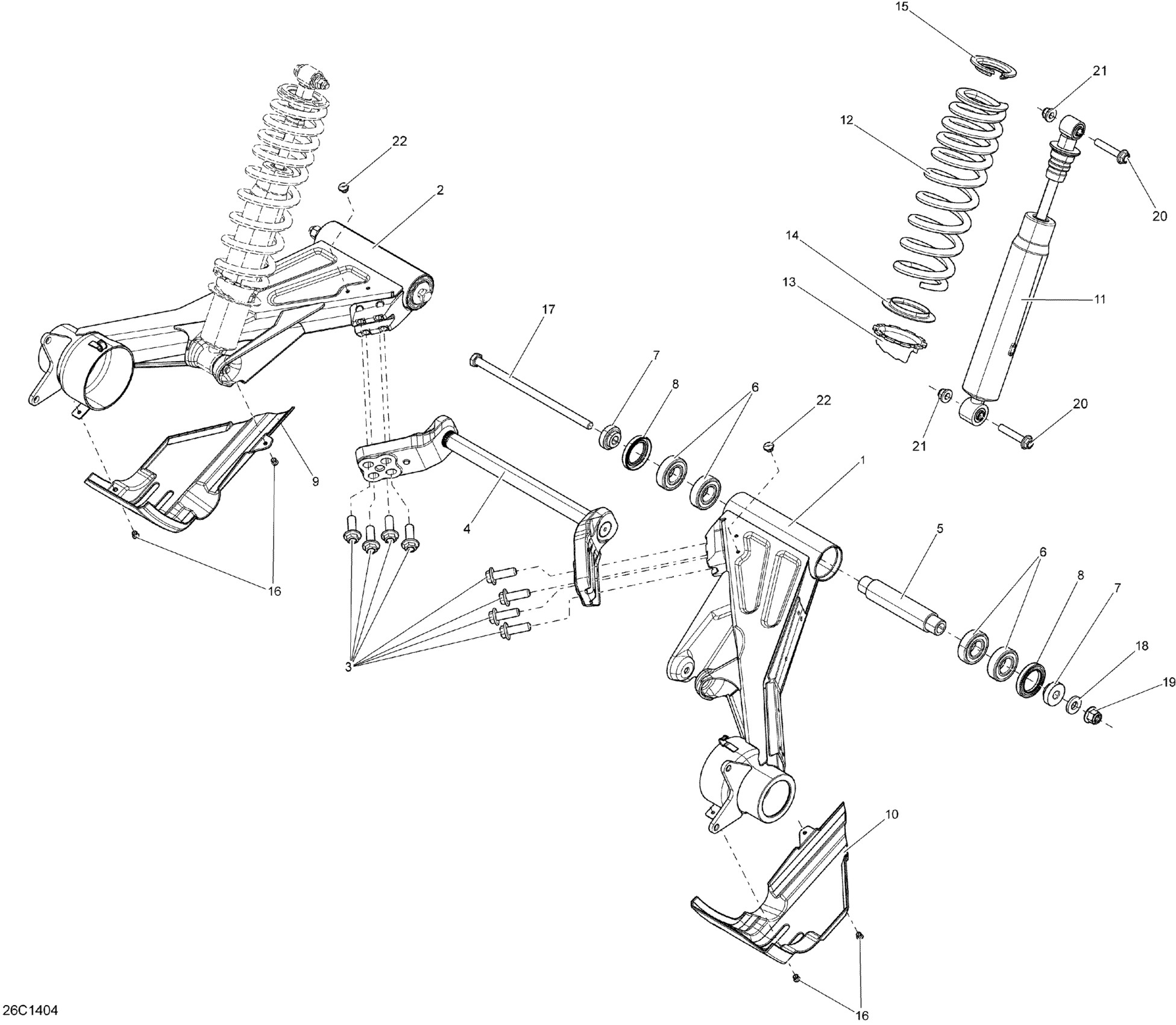

Can-Am Commander MAX 1000_DPS, XT, 2014 08- Rear Suspension _26C1404 Diagram

#

Description
Price

1

RH Swing Arm

706001513

$190.99

2

LH Swing Arm

706001514

$190.99

3

Hex. Flange Screw M12 X 35, Scotch Grip

207523544

$3.91

4

Sway Bar

706001718

$190.99

5

Bushing

706001529

$34.99

6

Ball Bearing

293350115

$12.11

7

Spacer

706001350

$10.49

8

Seal

293200094

$10.33

9

LH Joint Protector

706000630

$8.85

10

RH Joint Protector

706000814

$8.85

11

Rear Shock

706001509

$206.49

12

YELLOW REAR SPRING - Call your local BRP dealership | Model-DPS Yellow, XT Yellow

706001997

Unavailable

12

BLACK REAR SPRING - Call your local BRP dealership | Model-XT Magnesium, XT Camo

706001998

Unavailable

13

Adjustment Ring

706000910

$16.49

14

Protector Ring | STD, XT

706000911

$13.99

15

Spring Stopper

706000567

$15.99

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

17

Hex. Cap Screw M12 X 241

250001031

$3.81

18

Flat Washer M12

250200120

$2.61

19

Elastic Flange Nut M12

233221416

$2.85

20

Hex. Flange Screw M10 X 55

207605546

$2.11

21

Hex. Flange Elastic Nut M10

233201436

$2.11

22

Pop Rivet 3/16"

390406500

$0.88
