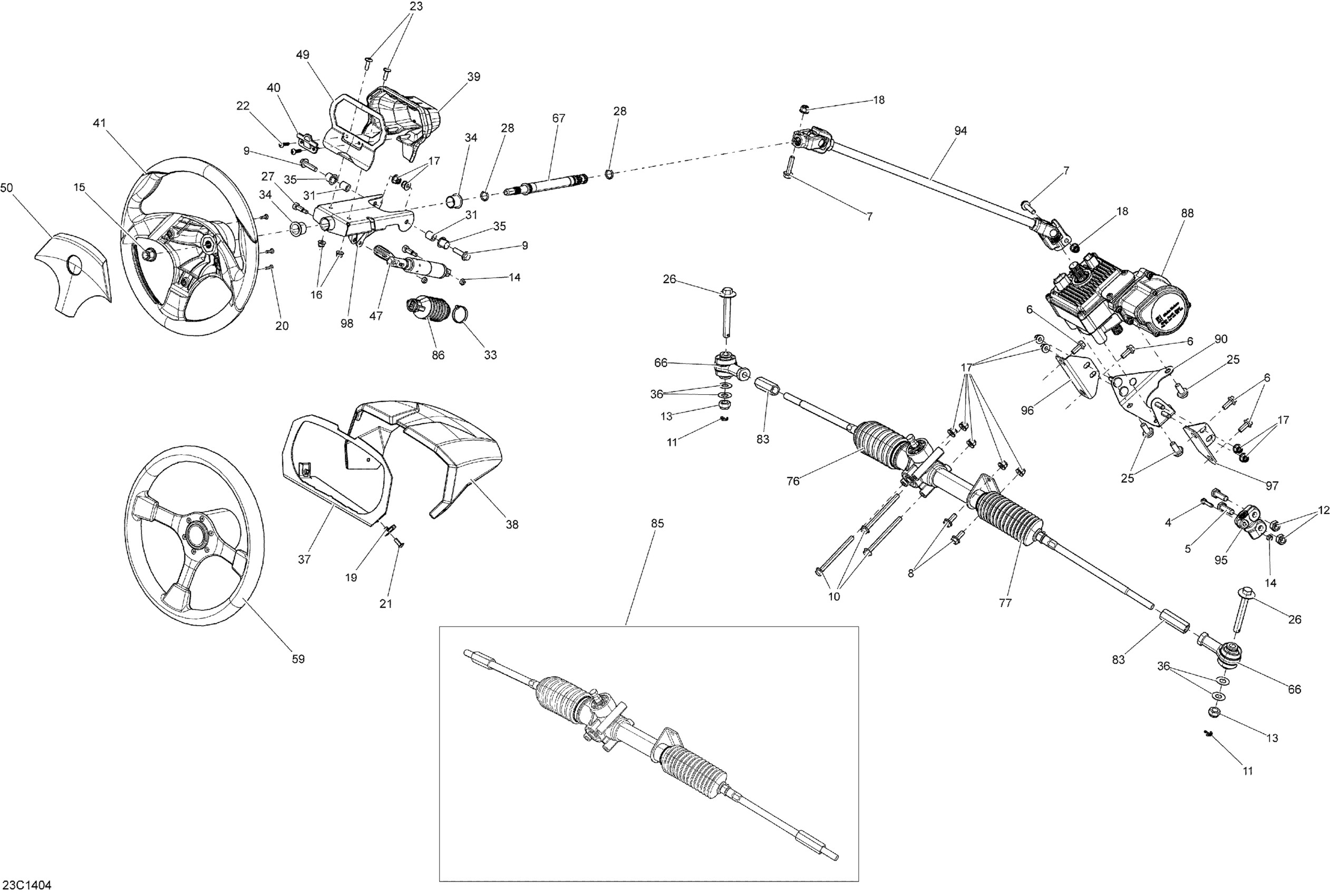

Can-Am Commander MAX 1000_DPS, XT, 2014 07- Steering _23C1404 Diagram

#

Description
Price

4

Hex. Screw M6 X 30

207063044

$1.26

5

Hex. Screw M10 X 35

207103586

$1.15

6

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

7

Hex. Flange Screw M8 X 35, Scotch Grip | Sub 250000986

207583586

Unavailable

8

Hex. Flange Screw M8 X 20

207682044

$1.15

9

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

10

Hex. Flange Screw M8 X 95

207689534

$4.23

11

Cotter Pin

211400017

$0.33

12

Elastic Stop Nut M10

232500416

$1.90

13

Elastic Stop Nut M12

232521416

$1.69

14

Elastic Stop Nut M6

232561434

$1.99

15

Hex. Flange Elastic Nut M12

233221414

$7.69

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

Hex. Elastic Flange Nut M8

233281416

$1.48

19

Panel Nut M6 X 1.0

250100198

$2.11

20

Phillips Screw K40 X 16

250000723

$0.98

21

Torx Truss Screw M6 X 16

250000721

$1.69

22

Truss Head Torx Screw K50 X 20

250000297

$2.11

23

Torx Truss Screw M6 X 20

250000350

$5.29

25

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$3.91

26

Hexagonal Screw M12 X 88

250000657

$6.77

27

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000649

Unavailable

28

O-Ring

293300144

$3.82

31

Bushing

293900106

$4.55

33

Tie-Rap 180 mm

414115200

$0.11

34

Steering Bushing

709402725

$3.28

35

Bushing

705600799

$3.72

36

Hardened Washer

706200281

$2.85

37

Cluster Support | X, XT

707900013

$16.49

38

Upper Cluster Cover | X, XT

707900124

$16.49

39

Speedometer Cover

709400514

$16.99

40

Latch Indicator Cover

709400573

$11.99

41

Steering Wheel | STD

709400650

$137.49

47

Adjustment Cylinder

709402506

$72.99

49

Cluster Support | STD

709400760

$21.99

50

Steering Center | STD

709400780

$13.49

59

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

$194.99

66

Ball Joint

709401134

$52.99

67

Steering Shaft

709401167

$48.99

76

Boot Kit, Pinion Side

715900235

$54.99

77

Boot Kit, Tube Side

715900236

$54.99

83

Nut Tie Rod End

715900237

$14.30

85

Steering Ass'y | Includes 29 to 31

709401185

$360.49

86

Boot Tube Side

709401232

$18.99

88

Power Steering

709401406

$2,009.99

90

SUPPORT - Call your local BRP dealership

709401296

Unavailable

94

STEERING COLUMN - Call your local BRP dealership

709401326

Unavailable

95

COUPLING - Call your local BRP dealership

709401328

Unavailable

96

LH DPS SUPPORT - Call your local BRP dealership

709401336

Unavailable

97

RH DPS SUPPORT - Call your local BRP dealership

709401337

Unavailable

98

Painted Steering Wheel Support

709401391

$85.99
