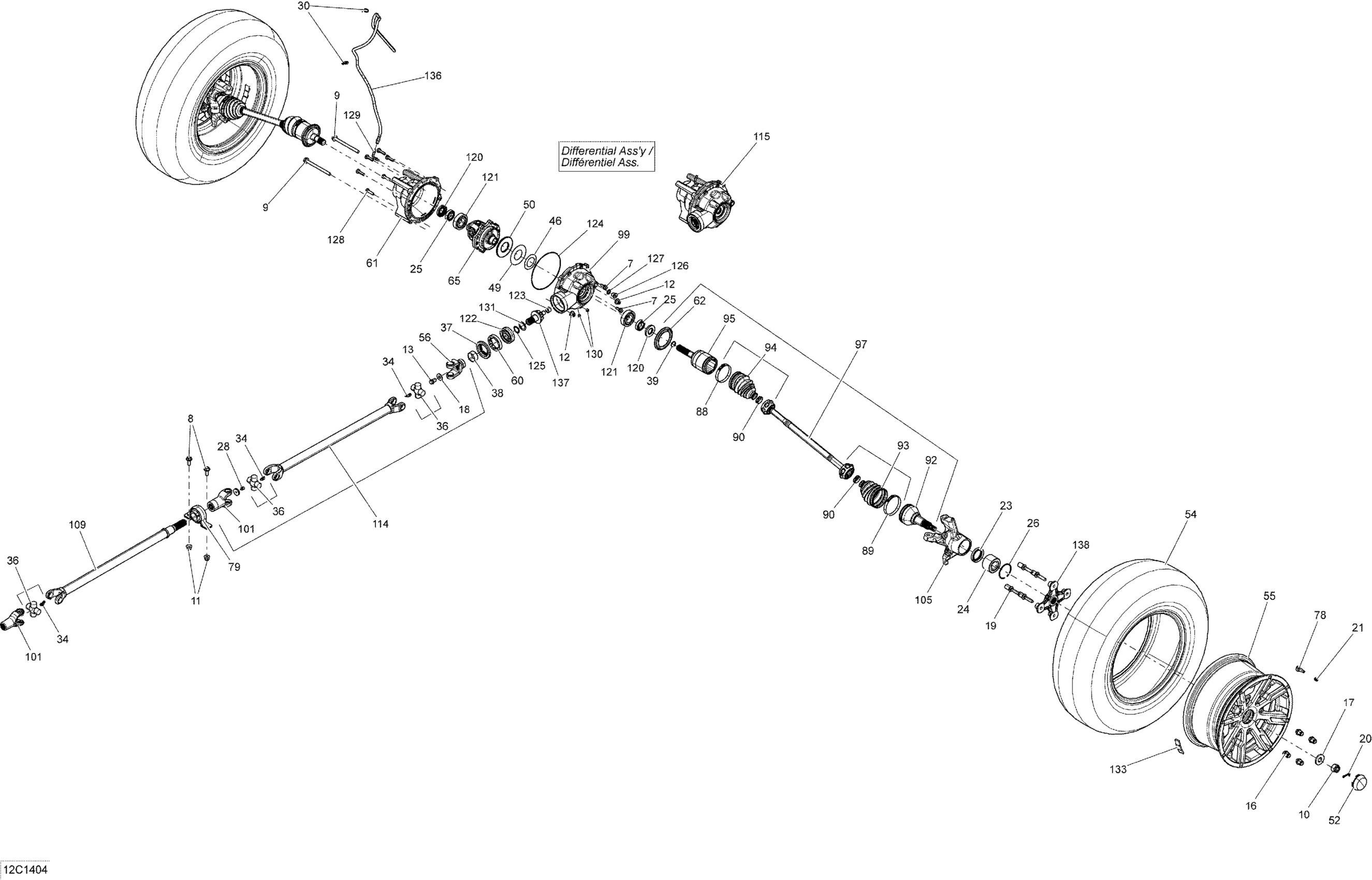

Can-Am Commander MAX 1000_DPS, XT, 2014 07- Drive System, Front _12C1404 Diagram

#

Description
Price

7

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

8

Hex. Flange Screw M10 X 25

207602544

$1.69

9

Hex. Flange Screw M10 X 125

230602546

$7.41

10

Hex. Flange Castellated Nut M18

232291413

$7.98

11

Hex. Flange Elastic Nut M10

233201414

$1.58

12

Hex. Flange Elastic Nut M10

233201436

$2.11

13

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

16

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

16

Black, Wheel Nut M10 X 1.25

250100184

$4.51

17

Conical Spring Washer M18

250200171

$7.65

18

Flat Washer M12

250200102

$2.11

19

Wheel Stud

250300060

$11.49

20

Cotter Pin

250400036

$2.11

21

Valve Cap

293000110

$1.59

23

O-Ring

293250246

$7.51

24

Ball Bearing

293350150

$52.99

25

Ball Bearing | 4X4

293350044

$31.99

26

Circlip

293370019

$4.68

28

Grease Fitting

703500815

$5.24

30

Tie Wrap 142 mm

293750002

$1.25

34

GREASE FITTING - Call your local BRP dealership

703500813

Unavailable

36

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

37

Oil Seal | 4X4

705401481

$19.49

38

Wear Ring | 4X4

705400036

$26.49

39

Circlip Joint | Not shown

705401349

$6.50

49

Shim | 4X4

705401604

$57.99

50

Shim | 4X4

705401604

$57.99

52

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

52

WHEEL CAP - Call your local BRP dealership | XT

705400504

Unavailable

54

Front Tire | XT Europe

705400961

$248.99

54

Front Tire

705402168

$248.99

55

Front Rim | XT International Except CAMO

705401378

$179.99

55

Front Rim | XT CAMO

705401379

$216.99

56

Fixed Yoke Joint

715900116

$59.49

60

Nut | 4X4

705401603

$35.99

61

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

65

DIFFERENTIAL KIT - Call your local BRP dealership

703500872

Unavailable

78

Rim Valve With Cap

705400193

$8.69

79

Ball Bearing | Model-COM-MAX

705401646

$62.49

88

Oetiker Clamp, Large

715900260

$10.33

89

Oetiker Clamp, Large

715900262

$10.33

90

Oetiker Clamp, Small

715900261

$5.29

92

JOINT_CV EXT - Call your local BRP dealership

705401353

Unavailable

93

Boot Kit, Wheel Side

705401354

$42.49

94

Boot Kit, Différential Side

705401355

$42.49

94

RH Plunging CV Joint

715900395

$259.49

94

LH Plunging CV Joint

715900396

$259.49

97

LH Front - Premium CV Axle | Includes 39 to 45

705401871

$243.99

97

RH Front - Premium CV Axle | Includes 30 to 36

705401872

$243.99

99

FRONT COVER - Call your local BRP dealership

705401136

Unavailable

101

Yoke Joint | Cover 715900483

715900231

$26.49

105

LH Front Knuckle

705401548

$132.49

105

RH Front Knuckle

705401549

$104.99

109

Drive Axle Ass'y | Model-COM-MAX

705402041

$413.49

114

Axle Drive Ass'y

705402066

$259.49

115

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

120

Gasket | 4X4

705401618

$18.49

121

Ball Bearing | 4X4

705401606

$51.99

122

Ball Bearing | 4X4

705500260

$31.99

123

Needle Bearing | 4X4

705500261

$19.99

124

Seal | 4X4

705500265

$18.76

125

O-Ring | 4X4

705500267

$7.65

126

Fill Level Plug | 4X4

705500504

$10.01

127

Copper Washer | 4X4

705500506

$0.45

128

Screw | 4X4

705401601

$10.49

129

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

130

Drain Plug | 4X4

705500894

$11.49

131

Pinion Gear Shim 1.67 mm

705502061

$18.99

133

1/2 Oz Weight

219704465

$3.89

136

Polyurethane Hose 10000Mm Long

219704410

$56.99

137

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

138

Wheel Hub

705501900

$132.49
