Description

Price

1

Hex. Flange Screw M6 X 25

207662544

$0.64

2

Flat Washer

224060201

$1.26

3

Quick Attach 90°

275500700

$16.49

4

Threaded Insert M6 X 1.0

250100242

Unavailable

7

Crimp Clamp, 15.3-706R

293650047

$3.29

8

Y-Fitting, 5/16''

293710136

$6.49

9

Rubber Washer

293830037

$2.68

10

Tie-Rap 180 mm

414115200

$0.11

16

Female Quick Fitting Ass'y

709000125

$15.49

16a

Locking Clip

513033135

$5.89

17

Rollover Valve

709000413

$55.99

23

Fuel Cap | Except Europe

709000529

$28.49

24

Ring

709000274

$15.99

25

O-Ring

709000275

$18.10

26

Neoprene Pad

709000288

$13.99

28

NEOPRENE PAD - Call your local BRP dealership

709000289

Unavailable

29

Filter

709000330

$7.79

29

Fuel Pre-Filter Kit

709000389

$79.49

30

Fuel Pump | Includes 5 to 6

709000759

$372.49

30a

Fuel Pre-Filter Kit

709000389

$79.49

31

Was 709000163 Fuel Line

219704440

$28.99

32

Was 709000163 Fuel Line

219704440

$28.99

33

Was 709000163 Fuel Line

219704440

$28.99

34

Tubing 16 Mm 1000Mm Long

219704408

$7.49

35

Fuel Tank

709000753

$749.99

38

Polyurethane Hose 10000Mm Long

219704410

$56.99

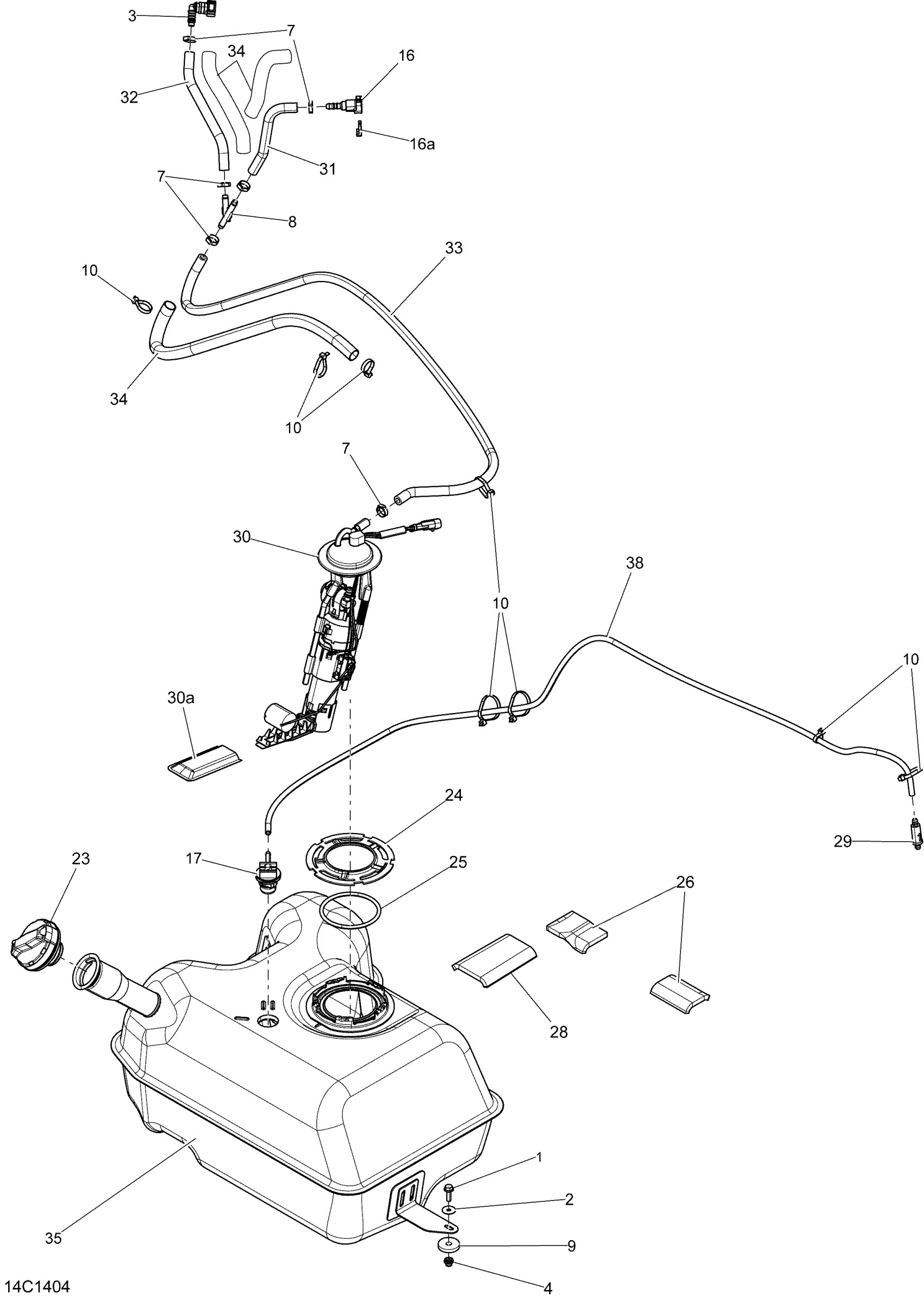

Can-Am Commander MAX 1000_DPS, XT, 2014 02- Fuel System _14C1404 Diagram

Hex. Flange Screw M6 X 25

Flat Washer

Quick Attach 90°

Threaded Insert M6 X 1.0

Crimp Clamp, 15.3-706R

Y-Fitting, 5/16''

Rubber Washer

Tie-Rap 180 mm

Female Quick Fitting Ass'y

Locking Clip

Rollover Valve

Fuel Cap | Except Europe

Ring

O-Ring

Neoprene Pad

NEOPRENE PAD - Call your local BRP dealership

Filter

Fuel Pre-Filter Kit

Fuel Pump | Includes 5 to 6

Fuel Pre-Filter Kit

Was 709000163 Fuel Line

Was 709000163 Fuel Line

Was 709000163 Fuel Line

Tubing 16 Mm 1000Mm Long

Fuel Tank

Polyurethane Hose 10000Mm Long
