Description

Price

1

Intermediate Shaft

420620500

$36.99

2

Thrust Washer

420827590

$4.01

3

Water Pump Gear

420434330

$11.63

4

Needle Pin

420232420

$4.01

5

Pump Gear, 15 Teeth

420234627

$11.63

6

Circlip

504152282

$3.17

7

Oil Seal

420650315

$11.65

8

Water Pump Shaft Ass'y | Includes 8a to 8b

420620175

$72.99

9

Rotary Seal

420650370

$43.49

10

Water Impeller

420222505

$19.99

11

Kit Water Pump Housing

703501124

$53.99

12

Gasket

420651190

$8.57

13

Seal Washer

420230415

$1.79

14

Torx Flange Screw M6 X 25

420641238

$3.27

15

Copper Washer

420250640

$0.98

16

Plug screw

420841924

$14.28

17

Spacer Ass'y | Includes 40 to 41

420927837

$7.41

18

Thermostat Gasket

420650300

$8.57

19

Thermostat Cover

420222696

$3.17

20

Torx Flange Screw M6 X 25

420641238

$3.27

21

Gasket Ring

420650255

$4.12

22

Screw M5 X 16

420441621

$3.17

23

Rear Head Hose

420822690

$19.49

24

Front Head Hose

420822695

$10.11

25

Y-Fitting

709200273

$5.50

26

Clamp

420251578

$8.57

27

Temperature Sensor

278002895

$39.99

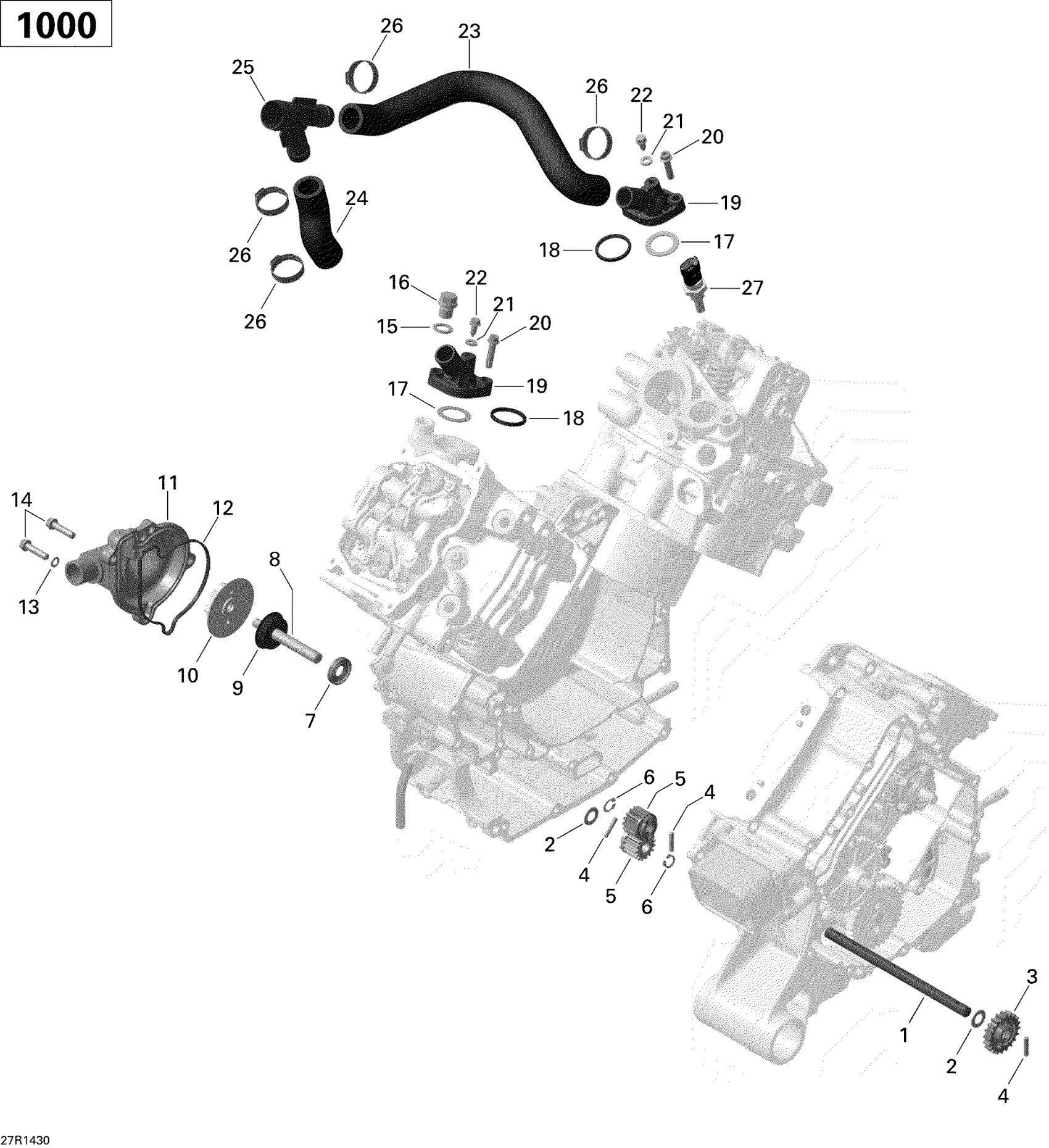

Can-Am Commander MAX 1000_DPS, XT, 2014 01- Engine Cooling 27R1430 Diagram

Intermediate Shaft

Thrust Washer

Water Pump Gear

Needle Pin

Pump Gear, 15 Teeth

Circlip

Oil Seal

Water Pump Shaft Ass'y | Includes 8a to 8b

Rotary Seal

Water Impeller

Kit Water Pump Housing

Gasket

Seal Washer

Torx Flange Screw M6 X 25

Copper Washer

Plug screw

Spacer Ass'y | Includes 40 to 41

Thermostat Gasket

Thermostat Cover

Torx Flange Screw M6 X 25

Gasket Ring

Screw M5 X 16

Rear Head Hose

Front Head Hose

Y-Fitting

Clamp

Temperature Sensor
