Description

Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Hex. Flange Screw M6 X 20

207662044

$2.00

3

Hex. Flange Screw M6 X 25

207662534

$2.11

4

Flange Elastic Nut M6

233261434

$4.44

5

Flat Washer 6 mm

234062410

$0.77

6

Flat Washer

250200082

$0.42

7

Norma Gear Clamp

293650098

$4.44

8

Norma Gear Clamp

293650098

$4.44

9

Crimp Clamp

293650099

$4.29

10

Hose Retainer

293650218

$9.39

11

Grommet

709000582

$4.69

12

Tie Wrap 368 mm

293750008

$1.04

13

Tie Wrap 368 mm

293750008

$1.04

14

T-Fitting

509000219

$15.89

15

Hex. Flange Screw M6 X 25

207662534

$2.11

16

Bushing

293900105

$7.65

17

Spring Clamp

414554800

$0.88

18

Gear Clamp

509000162

$7.29

19

Gear Clamp

509000162

$7.29

20

Gear Clamp

509000162

$7.29

21

T-Fitting

509000372

$10.33

22

Fitting

509000914

$7.59

23

Hose Anchor

709200036

$11.12

24

Filler Neck

709200179

$18.49

25

Radiator Pressure Cap

709200207

$25.49

26

Filler Neck Hose

709200264

$11.07

27

Radiator Outlet Hose

709200265

$12.63

28

Grommet

709200285

$9.69

29

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

30

Tank Cap

709200587

$5.40

31

Fan Ass'y

709200566

$279.99

32

Intermediate Hose

709200904

$23.99

33

Radiator

709200395

$370.99

34

Thermostat

709200406

$98.99

35

Tubing 35 MM 1000MM Long

219704428

$10.99

36

Tubing 35 MM 1000MM Long

219704428

$10.99

37

Tubing 35 MM 1000MM Long

219704428

$10.99

38

Hose

709200447

$22.49

39

Pump Hose

709200496

$27.99

40

Hose

709200497

$48.99

41

Coolant Tank Ass'y

709200624

$27.99

42

Hose_Radiator In

709200909

$21.99

43

Pump Hose

709200519

$27.99

44

Intermediate Hose

709200520

$24.99

45

Norma Gear Clamp

293650098

$4.44

46

Flange Elastic Nut M6

233261434

$4.44

47

Tie Wrap 368 mm

293750008

$1.04

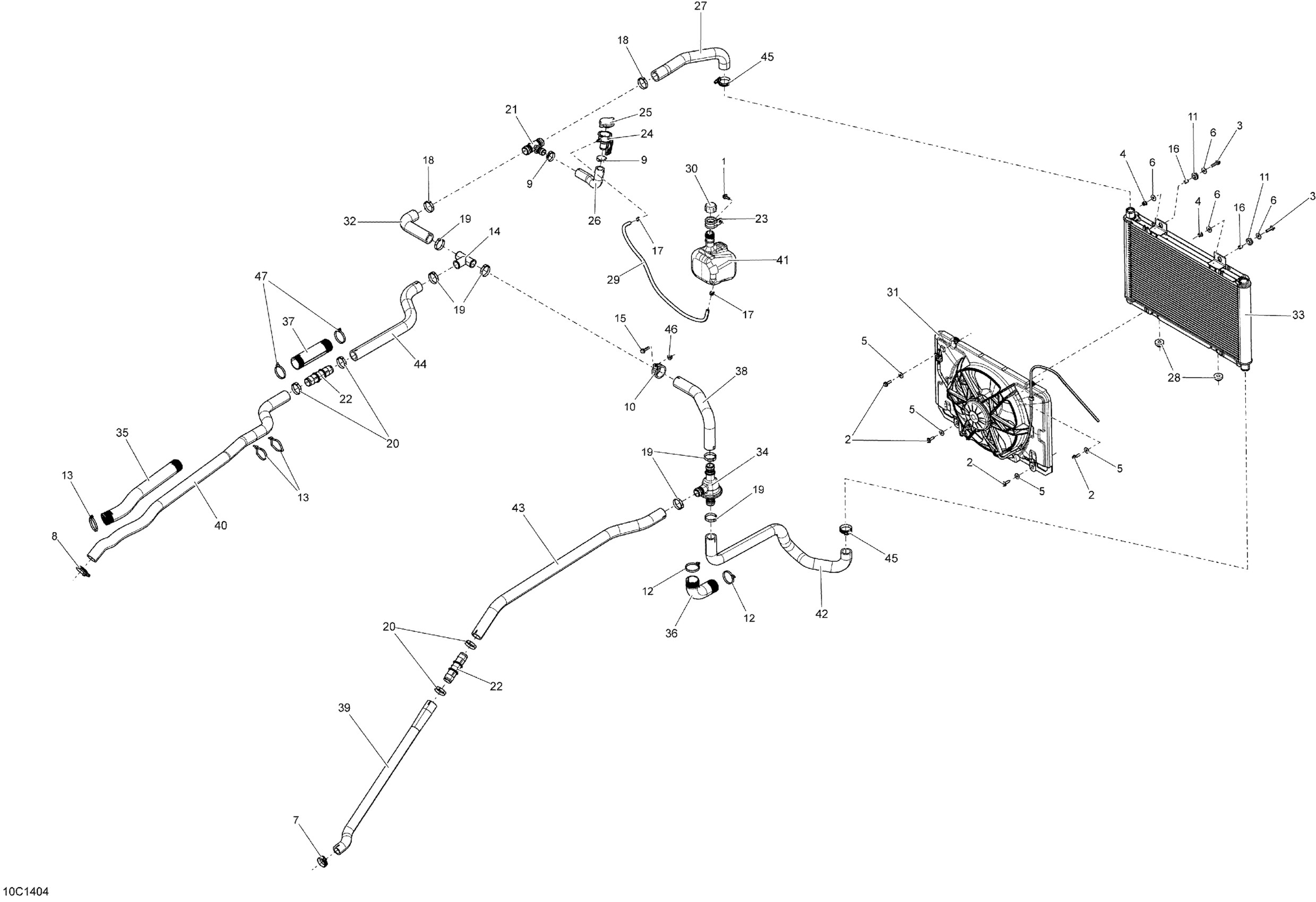

Can-Am Commander MAX 1000_DPS, XT, 2014 01- Cooling System _10C1404 Diagram

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 25

Flange Elastic Nut M6

Flat Washer 6 mm

Flat Washer

Norma Gear Clamp

Norma Gear Clamp

Crimp Clamp

Hose Retainer

Grommet

Tie Wrap 368 mm

Tie Wrap 368 mm

T-Fitting

Hex. Flange Screw M6 X 25

Bushing

Spring Clamp

Gear Clamp

Gear Clamp

Gear Clamp

T-Fitting

Fitting

Hose Anchor

Filler Neck

Radiator Pressure Cap

Filler Neck Hose

Radiator Outlet Hose

Grommet

Was 415110000 Polyurethane Hose 5.2 mm

Tank Cap

Fan Ass'y

Intermediate Hose

Radiator

Thermostat

Tubing 35 MM 1000MM Long

Tubing 35 MM 1000MM Long

Tubing 35 MM 1000MM Long

Hose

Pump Hose

Hose

Coolant Tank Ass'y

Hose_Radiator In

Pump Hose

Intermediate Hose

Norma Gear Clamp

Flange Elastic Nut M6

Tie Wrap 368 mm
