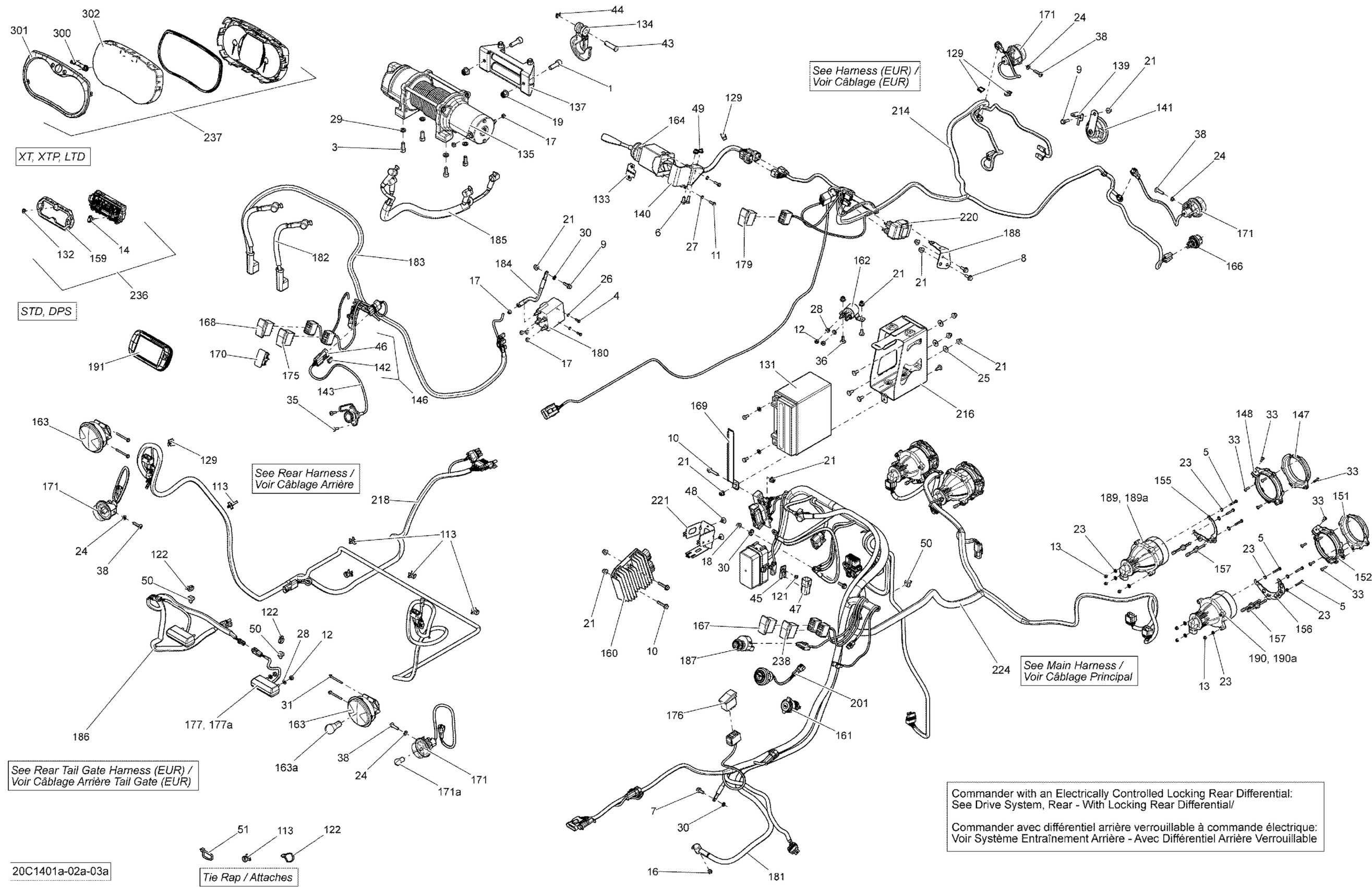

Can-Am Commander 800 STD, DPS, XT, 2014 10- Electrical System All Models Diagram

Socket Screw M10 x 30 | XT

205003044

$3.17

Socket Head Screw M8 X 20

205082044

$1.15

HEX. SCREW M4 X 10 - Call your local BRP dealership | XT

207141044

Unavailable

Hex. Screw M4 X 25

207142544

$2.00

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Forming Screw M5 X 16

210251650

$1.15

Hex. Nut M6

232061600

$1.15

Elastic Stop Nut M4

232541414

$0.58

Button

715900265

$13.71

Elastic Stop Nut M6

232561414

$0.55

Elastic Stop Nut M6

232561434

$1.99

Hex. Flange Nut M6

233061414

$1.68

Hex. Flange Elastic Nut M10

233201414

$1.58

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flat Washer M5

234051410

$0.53

Flat Washer 6 mm

234061410

$1.36

Flat Washer 6 mm

234062410

$0.77

Lock Washer 4 mm

234141601

$1.15

Lock Washer 5 mm | Europe

234151401

$0.55

Lock Washer Helical M6

234161601

$1.15

Lock Washer 8 mm

234181401

$0.92

External Serrated Lock Washer 6 mm

234461608

$1.15

Hex. Screw K50 X 45

241154540

$2.11

Phillips Screw K40 X 16

250000723

$0.98

Torx Screw K50 X 16

250000720

$1.69

Torx Screw M6 X 16

250000223

$2.11

Torx Screw M6 x 25

250000284

$2.11

Clevis Pin

250400021

$13.18

Cotter Pin

250400022

$9.69

Clip

270000141

$11.49

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

Diagnostic Connector

278002704

$19.49

Pop Rivet 3/16"

293150103

$0.55

Threaded Insert M6 X 1.0

250100242

Unavailable

Mount Dart

293730040

$1.04

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 173 mm

293750009

$1.04

Pop Rivet 3/16"

390402400

$0.35

Tie-Rap 180 mm

414115200

$0.11

Clip

414227300

$1.67

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

BRP Logo13 mm

704904615

$13.49

Flasher Decal | Europe

704902614

$19.99

Winch Hook Kit

705014949

$24.99

WINCH - Call your local BRP dealership | XT

705003944

Unavailable

WINCH CABLE GUIDE - Call your local BRP dealership | XT

715001119

Unavailable

SUPPORT - Call your local BRP dealership

709200284

Unavailable

Flasher Arm Support | Europe

709400810

$29.49

Horn

710004791

$38.99

Clip

710000992

$4.29

Winch Connector

710001023

$51.99

Connector Ass'y | XT, Includes 55 to 57

710001059

$9.10

RH Low Front Housing

710001081

$19.99

LH Low Front Housing

710001083

$19.99

RH Low Rear Housing

710001082

$12.99

LH Low Rear Housing

710001084

$12.99

RH High Front Housing

710001085

$19.99

LH High Front Housing

710001087

$19.99

RH High Rear Housing

710001086

$12.99

LH High Rear Housing

710001088

$12.99

RH Low Light Support

710001094

$9.09

LH Low Light Support

710001037

$9.09

RH High Light Support

710001115

$5.29

LH High Light Support

710001036

$5.29

Setting Screw

710001147

$12.71

Trim Ring Ass'y

710001183

$19.99

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

DC Outlet

710001248

$37.99

Starter Relay

710007777

$48.49

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

Bulb

520000758

$9.10

Turn Signal | Europe

710001721

$209.99

Day Light | Europe

710001726

$35.99

4X4 Switch

710001737

$31.99

Switch DPS

710001781

$22.99

Battery Holder

710001916

$21.99

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Flasher | Europe

710002047

$32.99

Switch Winch

710002052

$28.49

Switch, Over ride

710002053

$19.49

License Light

710002055

$58.49

Bulb

219800128

$2.46

Hi/Low Switch | Except Europe

710001725

$21.49

Switch Hazard | Europe

710002076

$19.49

Solenoid Kit | XT

715007084

$202.49

Positive Cable

710004383

$42.99

POSITIVE CABLE - Call your local BRP dealership | STD, X

710002148

Unavailable

Winch Cable (-/+) | XT

710005123

$88.99

NEGATIVE CABLE - Call your local BRP dealership | XT

710004386

Unavailable

Electrical Winch Cable | XT

710004387

$49.99

Tail Gate Harness Ass'y

710002220

Unavailable

Ignition Switch

710008400

$78.49

SUPPORT - Call your local BRP dealership | Europe

710002408

Unavailable

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

Halogen Bulb

415129249

$41.49

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

Halogen Bulb

415129249

$41.49

Not Available As Spare Parts

XXX

Unavailable

Engine Start Button

710002594

$60.49

WIRING HARNESS ASSY - Call your local BRP dealership

710004336

Unavailable

Battery Support

710003129

$48.99

Rear Harness | Except Europe

710003219

$159.99

Rear Harness

710003220

$229.99

Flasher Unit

710003239

$78.49

Fuse Holder

710003335

$10.11

Main Harness Ass'y

710003342

$1,029.99

Speedometer

710005087

$399.99

Speedometer

710003532

$699.99

Switch PPS Sport

710003541

$19.49

Speedometer Button | XTP

415129355

$15.80

Gauge Ring

415129348

$13.99

Lens | XTP

415129349

$24.49
