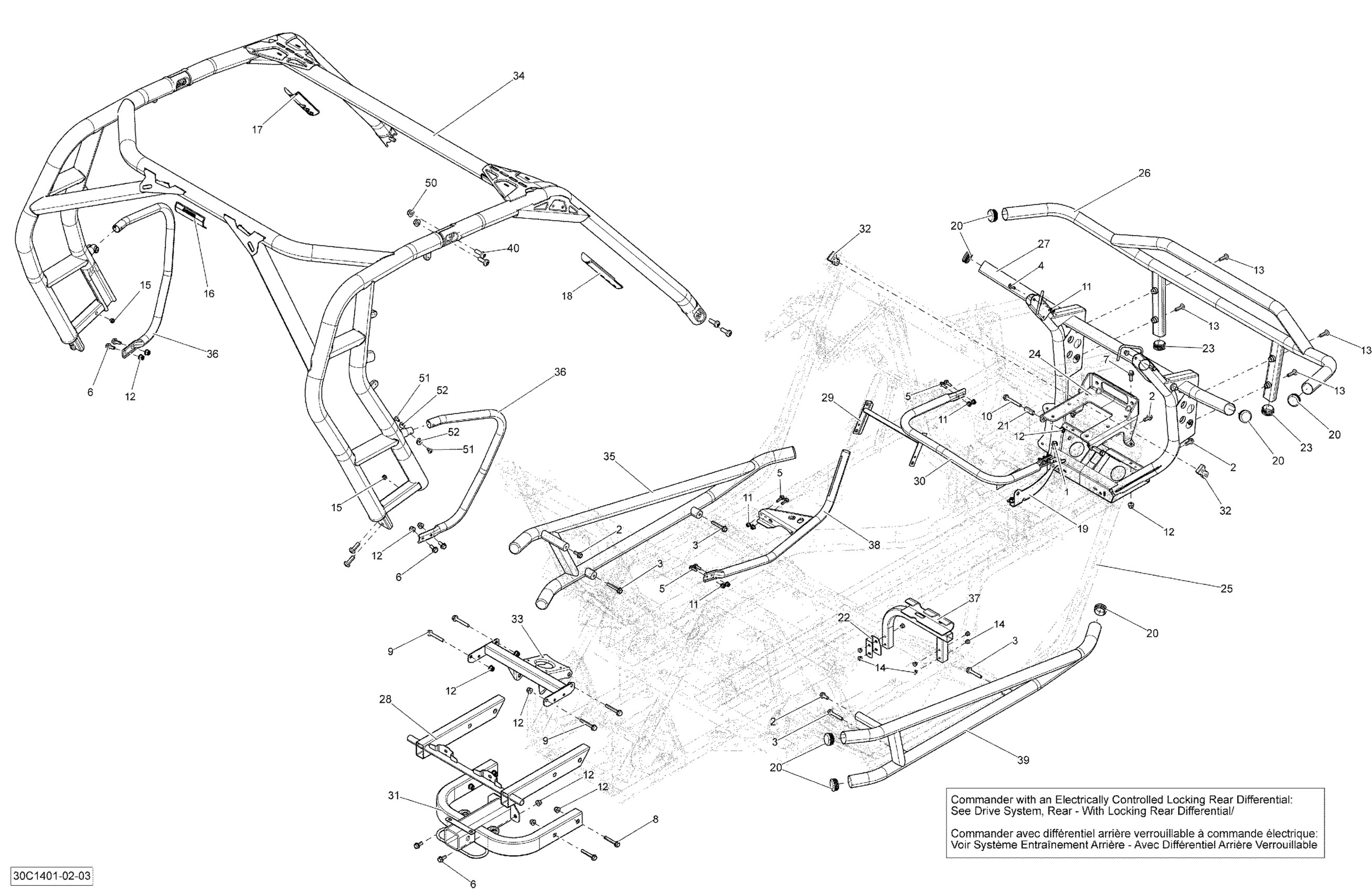

Can-Am Commander 800 STD, DPS, XT, 2014 09- Frame Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

2

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

3

Not Available As Spare Parts

XXX

Unavailable

4

Hex. Flange Screw M6 X 16

207661644

$0.74

5

Hex. Flange Screw M6 X 20

207662044

$2.00

6

Hex. Flange Screw M8 X 20

207682044

$1.15

7

Hex. Flange Screw M8 X 25

207682544

$1.35

8

Hex. Flange Screw M8 X 50

207685044

$1.69

9

Hex. Flange Screw M8 X 55

207685544

$5.39

10

Hex. Flange Screw M8 x 60

207686044

$3.07

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Hex. Flange Elastic Nut M8

233281414

$1.47

13

Hex Torx Truss M8 X30

250000745

$3.17

14

Hemlock Rivet, 6.5 mm

293150096

$3.27

15

Threaded Insert M6 X 1.0

250100242

Unavailable

16

Warning Label

704903492

Unavailable

17

Warning Label

704903679

Unavailable

18

Warning Label

704903680

Unavailable

19

Front Differential Support

705201721

$19.49

20

Cap

705202455

$5.69

21

Bushing

705202499

$6.67

22

Seat Support

705202602

$3.89

23

Not Available As Spare Parts

XXX

Unavailable

24

Winch Plate | XT

715000704

$122.49

25

FRAME ASS'Y - Call your local BRP dealership

715002077

Unavailable

26

Black Front Bumper | XT, X

715000958

$308.49

27

Black Front Bumper

705202995

$404.49

28

BOX HOLDER - Call your local BRP dealership

705203325

Unavailable

29

Reinforcement Panel

705203330

$154.99

30

Black Handle

705203332

$132.49

31

TRAILER HITCH ASS'Y - Call your local BRP dealership | Includes 47 to 50

715001251

Unavailable

32

Binding Block

705203415

$18.49

33

Differential Holder

705203538

$38.99

34

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

35

Not Available As Spare Parts

XXX

Unavailable

36

TUBE RH B-160 PAINTED - Call your local BRP dealership | Right

705203640

$43.99

36

TUBE LH B-160 PAINTED - Call your local BRP dealership | Left

705203637

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

HANDLE - Call your local BRP dealership

705203828

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Screw Pan M10 X 30

250000848

$1.90

50

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

51

Torx Truss M6X14

250000789

$5.39

52

Offset Washer

705202223

$4.14
