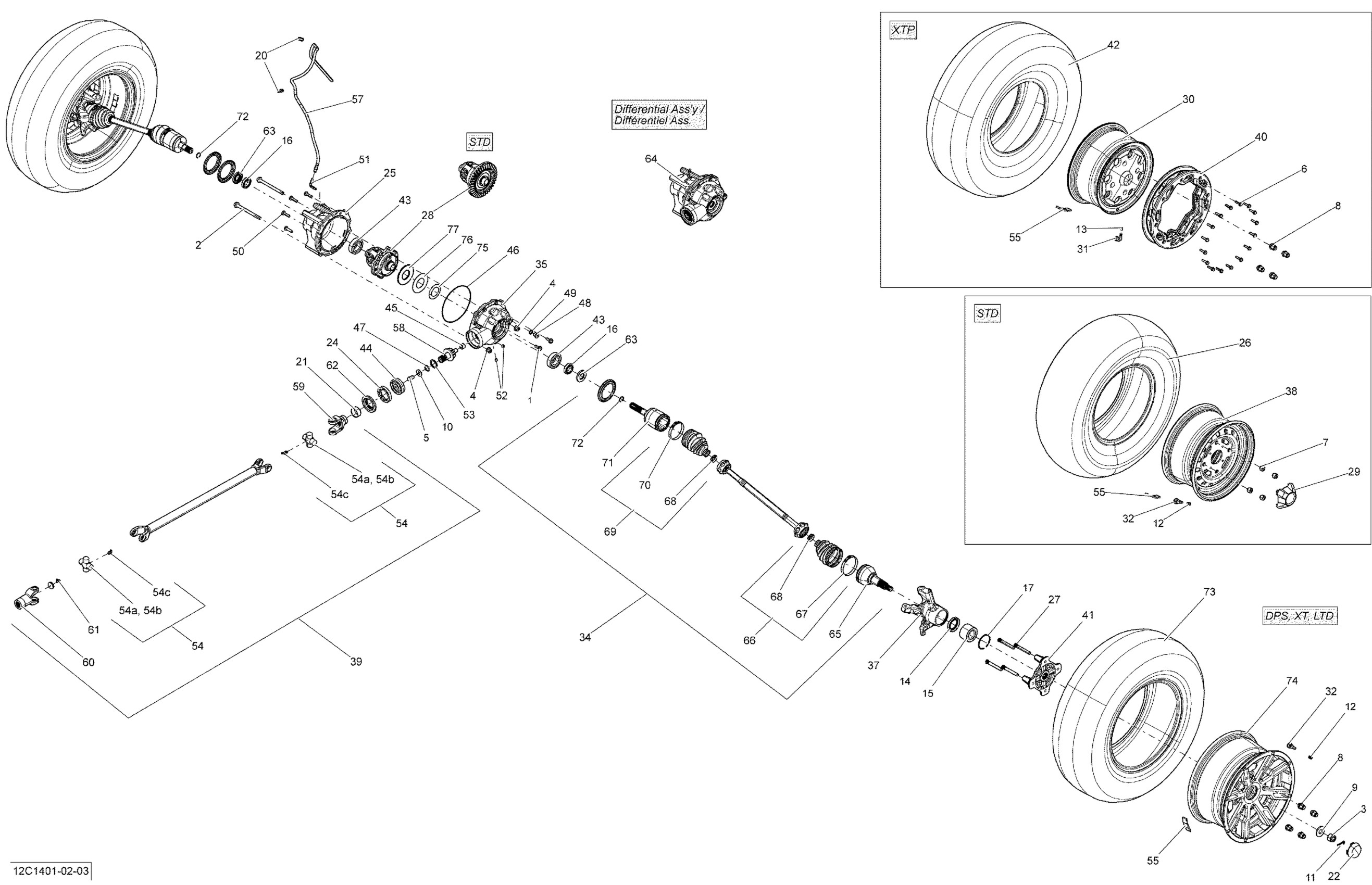

Can-Am Commander 800 STD, DPS, XT, 2014 07- Drive System, Front Diagram

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M10 X 125

230602546

$7.41

Hex. Flange Castellated Nut M18

232291413

$7.98

Hex. Flange Elastic Nut M10

233201436

$2.11

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Steel Wheel Nut

250100042

$3.98

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

Black, Wheel Nut M10 X 1.25

250100184

$4.51

Conical Spring Washer M18

250200171

$7.65

Flat Washer M12

250200102

$2.11

Cotter Pin

250400036

$2.11

Valve Cap

293000110

$1.59

Not Available As Spare Parts

XXX

Unavailable

O-Ring

293250246

$7.51

Ball Bearing

293350150

$52.99

Ball Bearing | 4X4

293350044

$31.99

Circlip

293370019

$4.68

Tie Wrap 142 mm

293750002

$1.25

Wear Ring | 4X4

705400036

$26.49

WHEEL CAP - Call your local BRP dealership | XT

705400504

Unavailable

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

Nut | 4X4

705401603

$35.99

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

TIRE_27X9R12 F - Call your local BRP dealership | STD

705400781

Unavailable

Front Tire | STD Europe Model

705401046

$144.99

Wheel Stud

705401964

$11.06

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

DIFFERENTIAL KIT - Call your local BRP dealership

703500872

Unavailable

Wheel Cap | STD

705400921

$5.89

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Rim Valve With Cap

705400193

$8.69

LH Front - Premium CV Axle | Includes 39 to 45

705401871

$243.99

RH Front - Premium CV Axle | Includes 30 to 36

705401872

$243.99

FRONT COVER - Call your local BRP dealership

705401136

Unavailable

LH Front Knuckle

705401548

$132.49

RH Front Knuckle

705401549

$104.99

Black, 12" X 6" Rim | STD Model

705401217

$129.99

Axle Drive Ass'y

705402066

$259.49

Not Available As Spare Parts

XXX

Unavailable

Wheel Hub

705401314

$132.49

Not Available As Spare Parts

XXX

Unavailable

Ball Bearing | 4X4

705401606

$51.99

Ball Bearing | 4X4

705500260

$31.99

Needle Bearing | 4X4

705500261

$19.99

Seal | 4X4

705500265

$18.76

O-Ring | 4X4

705500267

$7.65

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

Screw | 4X4

705401601

$10.49

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

Drain Plug | 4X4

705500894

$11.49

Pinion Gear Shim

705501162

$16.49

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

U-Joint

715900183

$26.49

SNAP RING - Call your local BRP dealership

715900117

Unavailable

GREASE FITTING - Call your local BRP dealership

703500813

Unavailable

1/2 Oz Weight

219704465

$3.89

Polyurethane Hose 10000Mm Long

219704410

$56.99

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

Yoke Joint | Cover 715900483

715900231

$26.49

Fixed Yoke Joint

715900116

$59.49

Grease Fitting

703500815

$5.24

Oil Seal | 4X4

705401481

$19.49

Gasket | 4X4

705401618

$18.49

Front Differential | Includes 8 to 31

703500907

$1,579.99

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

JOINT_CV EXT - Call your local BRP dealership

705401353

Unavailable

Boot Kit, Wheel Side

705401354

$42.49

Oetiker Clamp, Large

715900260

$10.33

Oetiker Clamp, Small

715900261

$5.29

Boot Kit, Différential Side

705401355

$42.49

Oetiker Clamp, Large

715900262

$10.33

RH Plunging CV Joint

715900395

$259.49

LH Plunging CV Joint

715900396

$259.49

Circlip Joint | Not shown

705401349

$6.50

Front Tire | XT Europe

705400961

$248.99

Front Tire

705402168

$248.99

Front Rim | XT International Except CAMO

705401378

$179.99

Front Rim | XT CAMO

705401379

$216.99

Pinion Gear Shim 1.67 mm

705502061

$18.99

Shim | 4X4

705401604

$57.99

Shim | 4X4

705401604

$57.99
