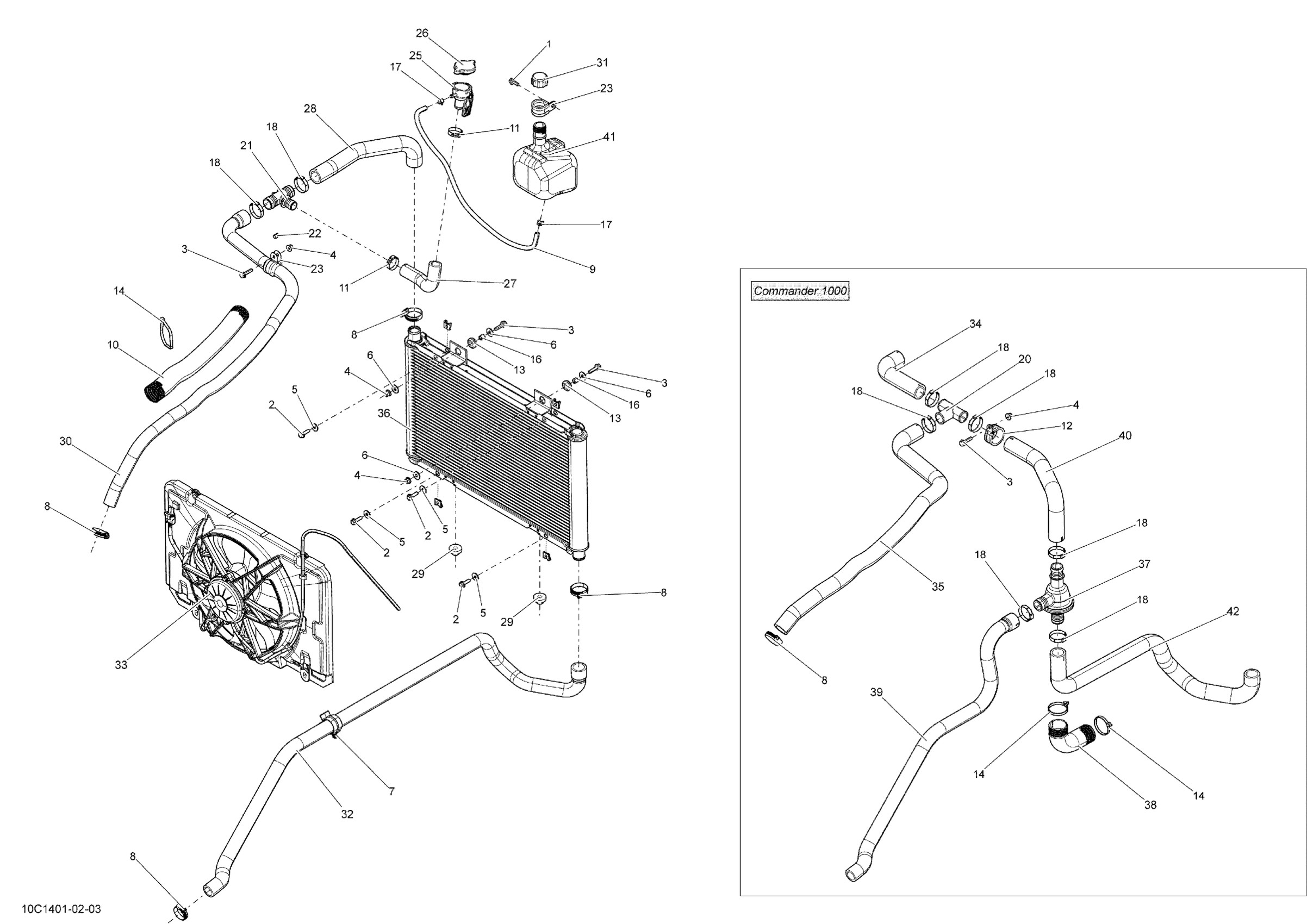

Can-Am Commander 800 STD, DPS, XT, 2014 01- Cooling System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Hex. Flange Screw M6 X 20

207662044

$2.00

3

Hex. Flange Screw M6 X 25

207662534

$2.11

4

Flange Elastic Nut M6

233261434

$4.44

5

Flat Washer 6 mm

234062410

$0.77

6

Flat Washer

250200082

$0.42

7

Retainer

275500590

$9.69

8

Norma Gear Clamp

293650098

$4.44

9

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

10

Tubing 35 MM 1000MM Long

219704428

$10.99

11

Crimp Clamp

293650099

$4.29

12

Not Available As Spare Parts

XXX

Unavailable

13

Grommet

709000582

$4.69

14

Tie Wrap 368 mm

293750008

$1.04

16

Bushing

293900105

$7.65

17

Spring Clamp

414554800

$0.88

18

Gear Clamp

509000162

$7.29

20

Not Available As Spare Parts

XXX

Unavailable

21

T-Fitting

509000372

$10.33

22

Spacer

707000065

$6.67

23

Hose Anchor

709200036

$11.12

25

Filler Neck

709200179

$18.49

26

Radiator Pressure Cap

709200207

$25.49

27

Filler Neck Hose

709200264

$11.07

28

Radiator Outlet Hose

709200265

$12.63

29

Grommet

709200285

$9.69

30

Intermediate Hose

709200295

$41.49

31

Tank Cap

709200587

$5.40

32

Radiator Inlet Hose

709200355

$65.49

33

Fan Ass'y

709200566

$279.99

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

Radiator

709200395

$370.99

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

Coolant Tank Ass'y

709200624

$27.99

42

Not Available As Spare Parts

XXX

Unavailable
