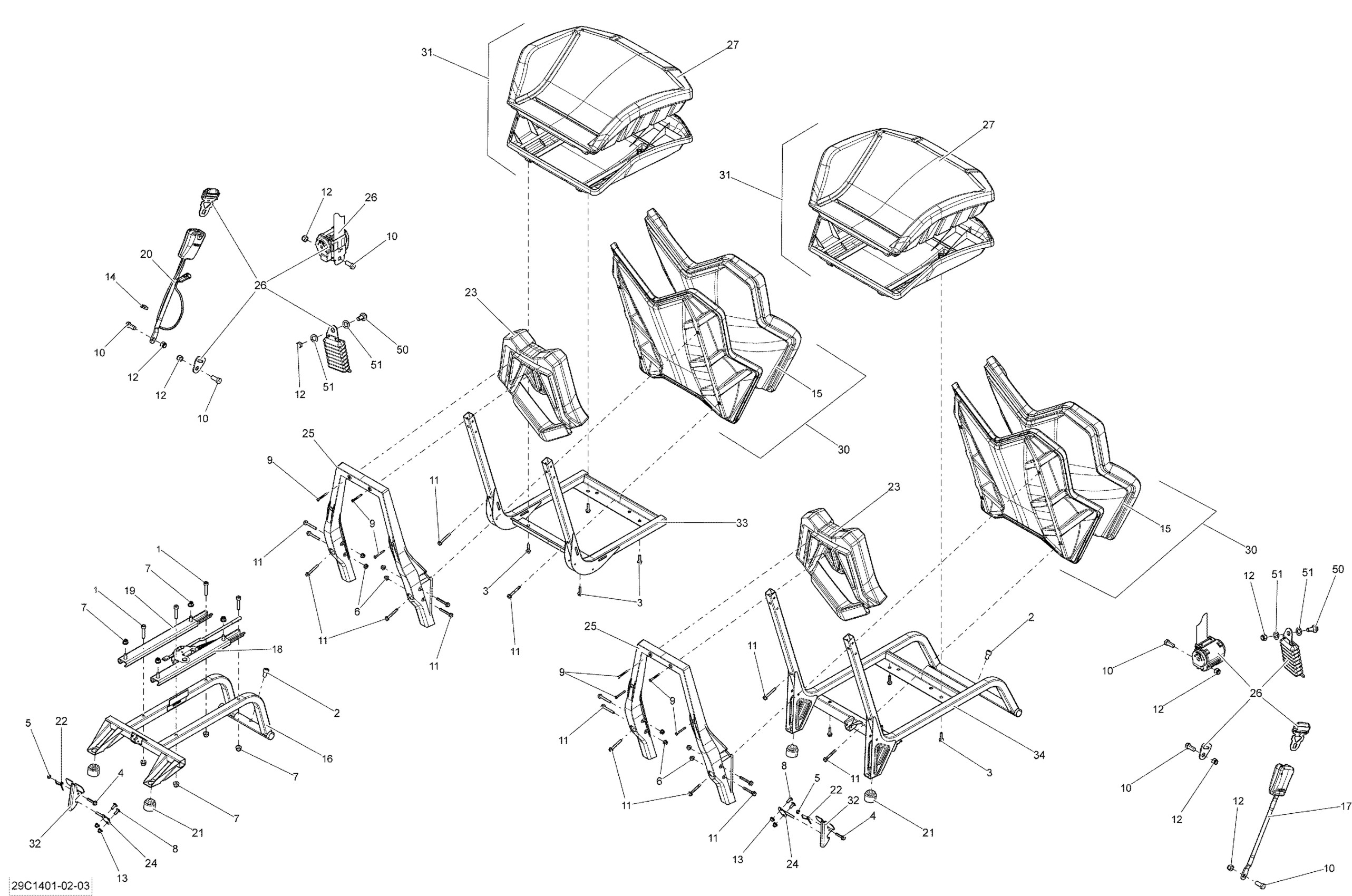

Can-Am Commander 1000 STD, DPS, XT, XT-P, 2014 09- Seat Diagram

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

Socket Screw M10 X 16

205501644

$4.29

Hex. Flange Screw M6 X 25

207562544

$1.69

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Elastic Stop Nut M6

232561600

$1.15

Hex. Elastic Flange Nut M6

233161464

$1.01

Hex. Flange Elastic Nut M8

233281414

$1.47

Torx Screw M6 X 16

250000223

$2.11

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

Hex. Flange Screw M6

250000672

$2.11

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

Threaded Insert M6 X 1.0

250100242

Unavailable

Tie Wrap 368 mm

293750008

$1.04

Backrest Cover

708000675

$97.99

Seat Member

708000667

$56.99

Passenger Buckle Side

708000844

$53.99

PASSENGER BUCKLE SIDE - Call your local BRP dealership | Europe

708000857

Unavailable

RH RAIL - Call your local BRP dealership

708000846

Unavailable

LH Rail

708000848

$53.99

Driver Buckle Side | Europe

708000856

$123.49

Driver Buckle Side

708002061

$70.99

Rubber Bumper

708001671

$2.89

Spring

708000921

$1.29

Head Rest

708001074

$104.99

RETAINING ROD - Call your local BRP dealership

708001238

$11.99

Seat Support

708001245

$28.99

SAFETY BELT - Call your local BRP dealership | Europe

708001130

Unavailable

Safety Belt

708001302

$280.99

Seat Cover

708001103

$117.99

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

Seat Latch

708001355

$2.59

Operator Seat Frame

708001356

$329.99

Passenger Seat Frame

708001357

$319.99

Safety Belt Screw

708000890

$3.79

Position Washer

708000891

$1.29
