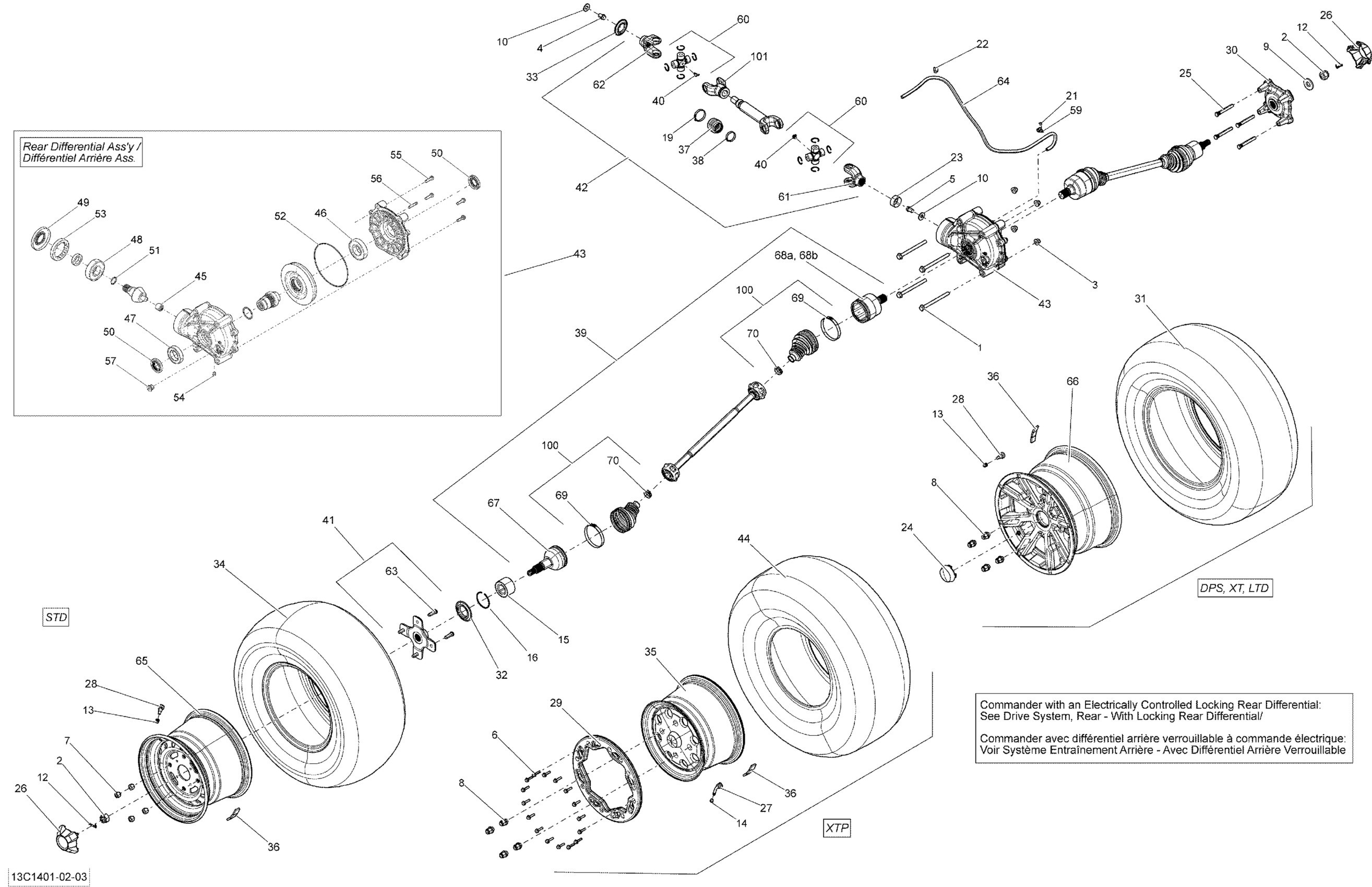

Can-Am Commander 1000 STD, DPS, XT, XT-P, 2014 08- Drive System, Rear Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 125

230602546

$7.41

2

Hex. Flange Castellated Nut M18

232291413

$7.98

3

Hex. Flange Elastic Nut M10

233201436

$2.11

4

Hex Flange Screw M12 X 16

250001039

$2.11

5

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

6

Hex. Flange Screw M6 X 25

250000787

$2.22

7

Steel Wheel Nut

250100042

$3.98

8

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

8

Black, Wheel Nut M10 X 1.25

250100184

$4.51

9

Conical Spring Washer M18

250200171

$7.65

10

Flat Washer M10 | 4X4

250200014

$1.49

12

Cotter Pin

250400036

$2.11

13

Valve Cap

293000110

$1.59

14

VALVE CAP - Call your local BRP dealership

293000111

Unavailable

15

Ball Bearing

293350150

$52.99

16

Circlip

293370019

$4.68

19

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

21

Pop Rivet 3/16"

390402200

$0.35

22

Clip

414227300

$1.67

23

Wear Ring | 4X4

705400036

$26.49

24

WHEEL CAP - Call your local BRP dealership | XT

705400504

Unavailable

24

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

25

Wheel Stud

705401964

$11.06

26

Wheel Cap | STD

705400921

$5.89

27

VALVE_TIRE WITH CAP FORMED - Call your local BRP dealership | Xxc

705400872

Unavailable

28

Rim Valve With Cap

705400193

$8.69

29

REINFORCEMENT DISC PLATE - Call your local BRP dealership

705401248

Unavailable

30

Wheel Hub

705401314

$132.49

31

27X11R14 Rear Tire

705502665

$259.49

31

Rear Tire | XT Europe

705501295

$259.49

32

Wear Sleeve | 4X4

705501121

$7.90

33

Protector

705501123

$7.55

34

Rear Tire | STD

705501129

$149.99

34

Rear Tire | STD Model Europe

705501434

$153.49

35

Rear Rim

705501137

$191.49

36

1/2 Oz Weight

219704465

$3.89

37

Rubber Boot

715900118

$14.30

38

Oetiker Gear Clamp 36.1MM

509000045

$8.29

39

Joint Assemble *Half Shaft | Includes 63 to 68

705502359

$243.99

40

Grease Fitting

715900184

$5.24

41

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

$137.47

42

Axle Ass'y

705501803

Unavailable

43

Final Drive Unit | Includes 30 to 30u

705502517

$1,844.49

44

Rear Tire | X Model Europe

705501818

$254.49

44

Rear Tire 27X11X12 | X

705502938

$254.49

45

Needle Bearing

705501874

$73.99

46

Ball Bearing

705501875

$78.49

47

Ball Bearing

705501876

$78.49

48

Ball Bearing

705501877

$78.49

49

Oil Seal

705501878

$36.99

50

Oil Seal

705502110

$20.49

51

Oil Seal

705501880

$16.38

52

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$9.27

53

Nut

705501882

$36.99

54

Drain Plug | After May 30, 2014

705501885

$14.22

55

Bolt

705501886

$7.69

56

Vent Valve

705501887

$15.36

57

Fill Level Plug

705501889

$20.49

59

Clamp

293650256

$5.49

60

Universal Joint

715900326

$68.99

61

FIXED YOKE - Call your local BRP dealership

715900233

Unavailable

62

Fixed Joint

715900129

$24.99

63

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

64

Polyurethane Hose 10000Mm Long

219704410

$56.99

65

Black, Rear Rim

705501623

$174.99

66

RIM 14 INCH X 8,5 - Call your local BRP dealership | XT International Except Camo

705501812

Unavailable

66

Rear Rim | XT Camo

705501814

$239.49

67

CV Joint

705501776

$259.49

68a

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

68b

Circlip

705501781

$6.50

69

Oetiker Clamp, 82.1 mm

715900241

$10.33

70

Oetiker Clamp, 27.3 mm

715900242

$10.33

100

Boot Kit

705501864

$42.49

101

Spline Yoke

715900106

$41.49
