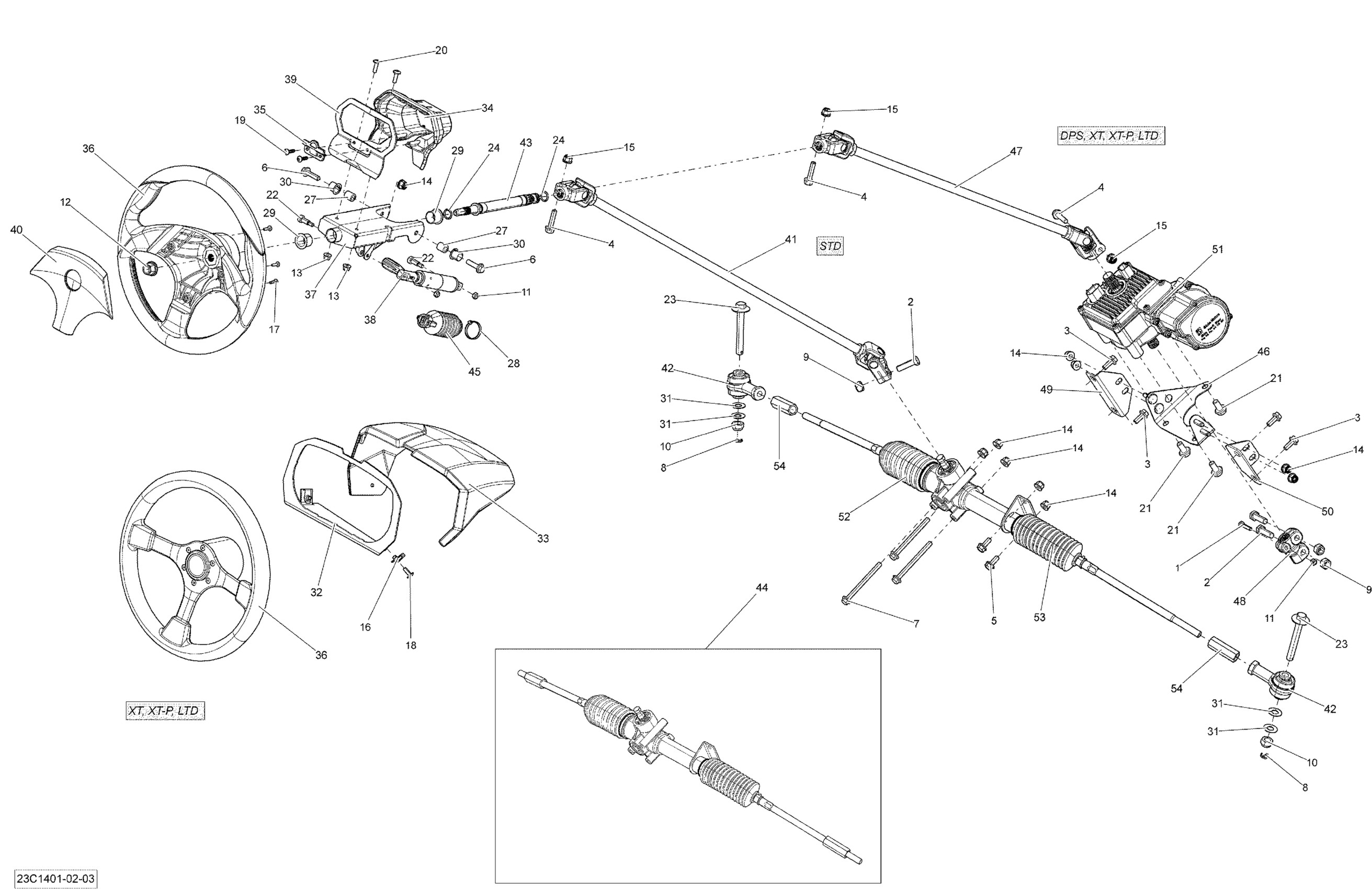

Can-Am Commander 1000 STD, DPS, XT, XT-P, 2014 07- Steering Diagram

#

Description
Price

1

Hex. Screw M6 X 30

207063044

$1.26

2

Hex. Screw M10 X 35

207103586

$1.15

3

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

4

Hex. Flange Screw M8 X 35, Scotch Grip | Sub 250000986

207583586

Unavailable

5

Hex. Flange Screw M8 X 20

207682044

$1.15

6

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

7

Hex. Flange Screw M8 X 95

207689534

$4.23

8

Cotter Pin

211400017

$0.33

9

Elastic Stop Nut M10

232500416

$1.90

10

Elastic Stop Nut M12

232521416

$1.69

11

Elastic Stop Nut M6

232561414

$0.55

12

Hex. Flange Elastic Nut M12

233221414

$7.69

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Hex. Flange Elastic Nut M8

233281414

$1.47

15

Hex. Elastic Flange Nut M8

233281416

$1.48

16

Panel Nut M6 X 1.0

250100198

$2.11

17

Phillips Screw K40 X 16

250000723

$0.98

18

Torx Truss Screw M6 X 16

250000721

$1.69

19

Truss Head Torx Screw K50 X 20

250000297

$2.11

20

Torx Truss Screw M6 X 20

250000350

$5.29

21

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$3.91

22

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000649

Unavailable

23

Hexagonal Screw M12 X 88

250000657

$6.77

24

O-Ring

293300144

$3.82

27

Bushing

293900106

$4.55

28

Tie-Rap 180 mm

414115200

$0.11

29

Steering Bushing

709402725

$3.28

30

Bushing

705600799

$3.72

31

Hardened Washer

706200281

$2.85

32

Cluster Support | X, XT

707900013

$16.49

33

Upper Cluster Cover | X, XT

707900124

$16.49

34

Speedometer Cover

709400514

$16.99

35

Latch Indicator Cover

709400573

$11.99

36

Steering Wheel | STD

709400650

$137.49

36

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

$194.99

37

Painted Steering Wheel Support

709401391

$85.99

38

Adjustment Cylinder

709402506

$72.99

39

Cluster Support | STD

709400760

$21.99

40

Steering Center | STD

709400780

$13.49

41

Steering Column

709401389

$199.99

42

Ball Joint

709401134

$52.99

43

Steering Shaft

709401167

$48.99

44

Steering Ass'y | Includes 29 to 31

709401185

$360.49

45

Boot Tube Side

709401232

$18.99

46

SUPPORT - Call your local BRP dealership

709401296

Unavailable

47

STEERING COLUMN - Call your local BRP dealership

709401326

Unavailable

48

COUPLING - Call your local BRP dealership

709401328

Unavailable

49

LH DPS SUPPORT - Call your local BRP dealership

709401336

Unavailable

50

RH DPS SUPPORT - Call your local BRP dealership

709401337

Unavailable

51

Power Steering

709401406

$2,009.99

52

Boot Kit, Pinion Side

715900235

$54.99

53

Boot Kit, Tube Side

715900236

$54.99

54

Nut Tie Rod End

715900237

$14.30
