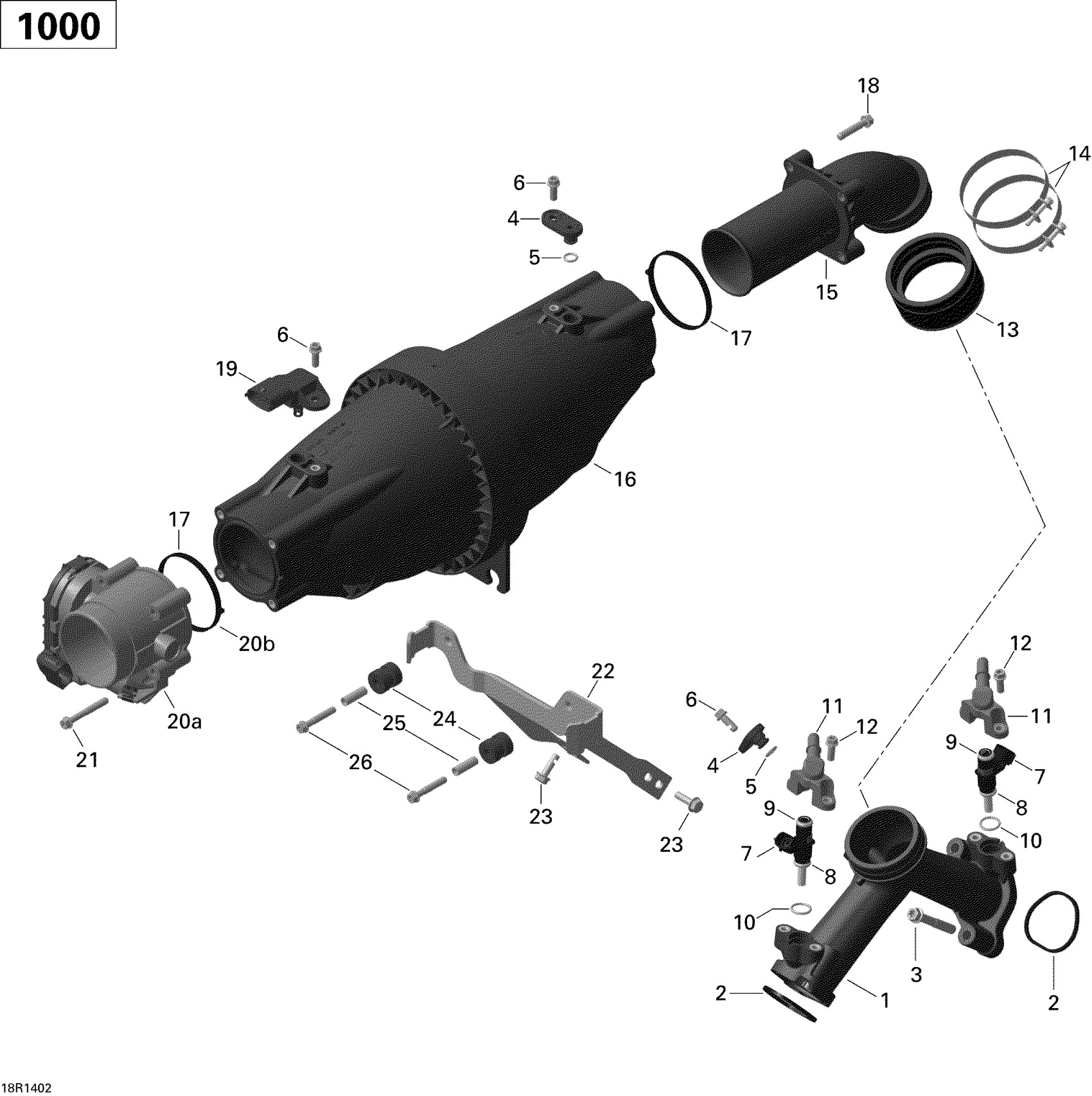

Can-Am Commander 1000, LTD, 2014 02- Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold

420667520

$73.99

2

Gasket

420630642

$5.39

3

Torx Flange Screw M8 X 55

420641213

$7.41

4

Cover

420460980

$2.68

5

O-Ring

420230461

$2.29

6

Hex. Flange Screw M6 X 12

420440147

$2.00

7

Injection Valve Ass'Y | Includes 18 to 20

420874833

$158.99

8

O-Ring

420431890

$7.49

9

O-Ring

420631220

$14.28

10

O-Ring

420631296

$0.76

11

Fuel Rail

420874901

$24.49

12

Torx Flange Screw M6 X 16

420641048

$2.96

13

Intake Neck

420267042

$17.05

14

Clamp

420251209

$8.57

15

Air Inlet Manifold

420667522

$31.99

16

Air Inlet Manifold Ass'y | Includes 16 to 17

420667526

$184.99

17

Gasket | Included in gasket kit

420431900

$5.40

18

Hex. Screw M6 X 30

420241947

$4.76

19

Pressure And Temperature Sensor

707000995

$88.99

20a

Throttle Body Socket Ass'y

420892596

$466.49

20b

Gasket | Included in gasket kit

420431900

$5.40

21

Torx Flange Screw M6 X 45

420641198

$4.12

22

Support

420651521

$81.99

23

Hex.Screw M6 X 20

420441311

$5.18

24

Rubber Bracket

420660090

$4.12

25

Spacer

420847971

$7.41

26

Hex. Screw M6 X 35

420441457

$3.91
