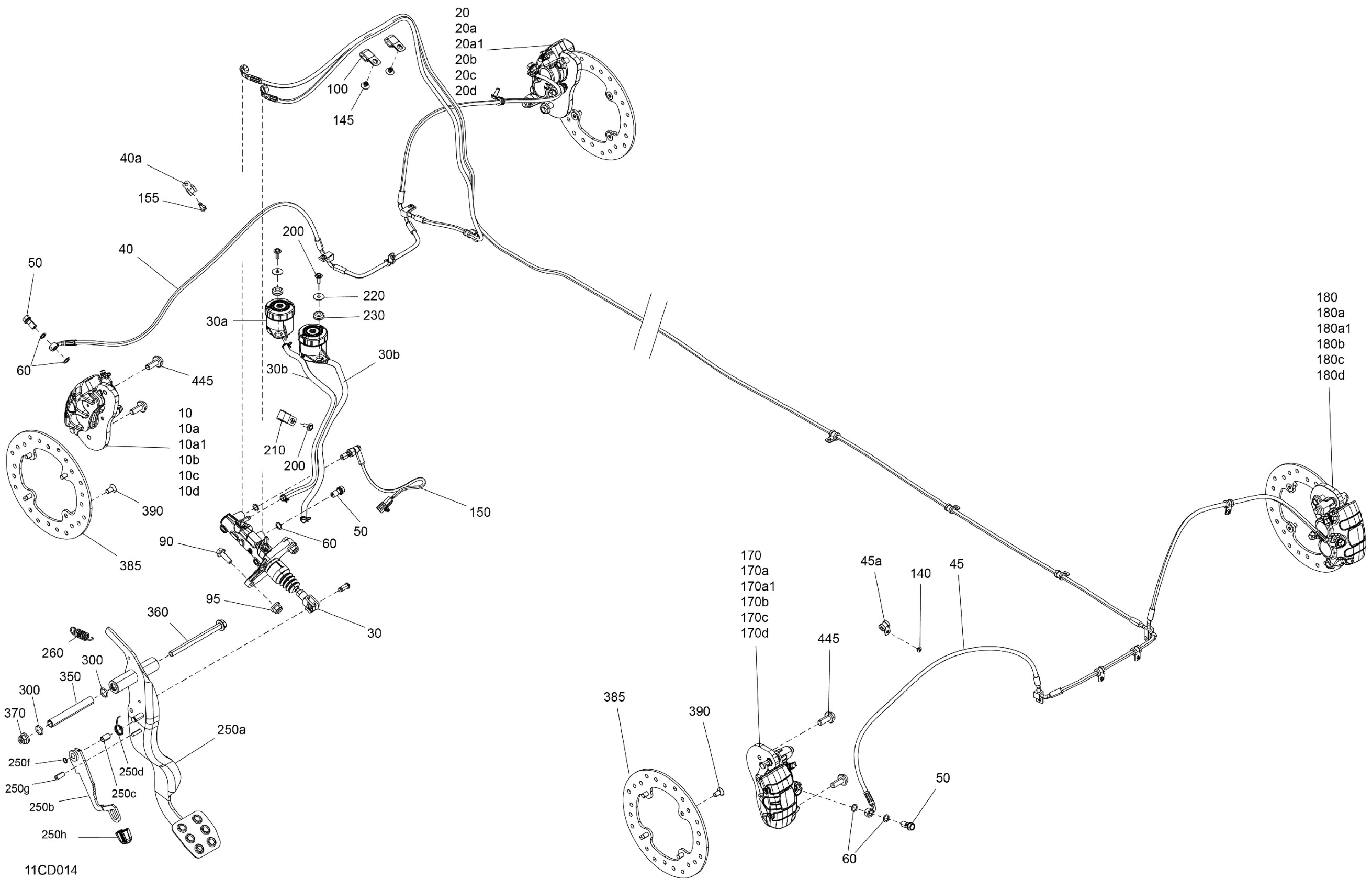

Can-Am North America - Defender 6X6 HD10 - XT - 9RRA - Fiery Red Metallic - 64" Width, 2024 03- Mechanic - Brake System Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$360.49

10a

LH Brake Pads

715900379

$79.49

10a1

Pin Kit | Packages STD & PRO

715900384

$12.12

10b

Pin Kit | Packages STD & PRO

715900384

$12.12

10c

Bleeding Screw

705601017

$6.35

10d

Cap Spring Kit

715900385

$17.59

20

RH Front Brake Caliper | Includes 20 to 20c

705602181

$370.99

20a

RH Brake Pads

715900380

$79.49

20a1

Pin Kit | Packages STD & PRO

715900384

$12.12

20b

Pin Kit | Packages STD & PRO

715900384

$12.12

20c

Bleeding Screw

705601017

$6.35

20d

Cap Spring Kit

715900385

$17.59

30

Master Cylinder

705602156

$379.99

30a

Oil Tank

705601020

$39.99

30b

Housing Oil Hose

705601866

$15.87

40

Front Caliper Hose | Includes 40 to 40a

705601754

$148.49

40a

Clamp

293650256

$5.49

45

Rear Caliper Hose | Includes 45 to 45a

705601757

$163.99

45a

Clamp

293650256

$5.49

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

60

Copper Washer

705601628

$4.44

90

Hex. Flange Screw M8 X 25

207682544

$1.35

95

Hex. Elastic Flange Nut M8

233281416

$1.48

100

Open Clamp

515175507

$1.89

140

Pop Rivet 3/16"

390402200

$0.35

145

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

150

Brake Switch

705601250

$59.49

155

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

170

LH Rear Brake Caliper | Includes 170 to 170d

705602184

$264.99

170a

LH Brake Pads

715900386

$79.49

170a1

Pin Kit | Packages STD & PRO

715900384

$12.12

170b

Pin Kit | Packages STD & PRO

715900384

$12.12

170c

Bleeding Screw

705601017

$6.35

170d

Cap Spring Kit

715900385

$17.59

180

RH Rear Brake Caliper | Includes 180 to 180d

705602185

$328.49

180a

RH Brake Pads

715900387

$79.49

180a1

Pin Kit | Packages STD & PRO

715900384

$12.12

180b

Pin Kit | Packages STD & PRO

715900384

$12.12

180c

Bleeding Screw

705601017

$6.35

180d

Cap Spring Kit

715900385

$17.59

200

Screw PT Type K-50 X 16

250000959

$2.11

210

Open Clamp

515175507

$1.89

220

Flat Washer

250200040

$1.90

230

Grommet

414036300

$2.79

250a

Brake Pedal | Includes 250 to 250a

705601777

$57.99

250b

Lever

705601725

$13.49

250c

Bushing

705601722

$8.85

250d

Spring

705601729

$9.10

250f

Circlip

705601770

$2.68

250g

Hose

219704549

$50.99

250h

Adjustment Handle

708002655

$16.99

260

Brake Pedal Spring

705600792

$9.10

300

O-Ring

293300144

$3.82

350

Inside Sleeve

705601373

$12.11

360

Hex. Flange Screw, M10 X 130

230603046

$7.41

370

Hex. Flange Elastic Nut M10

233201436

$2.11

385

Brake Disc

705601511

$66.49

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

445

Hex. Flange Screw M10 X 25

207502546

$2.11
