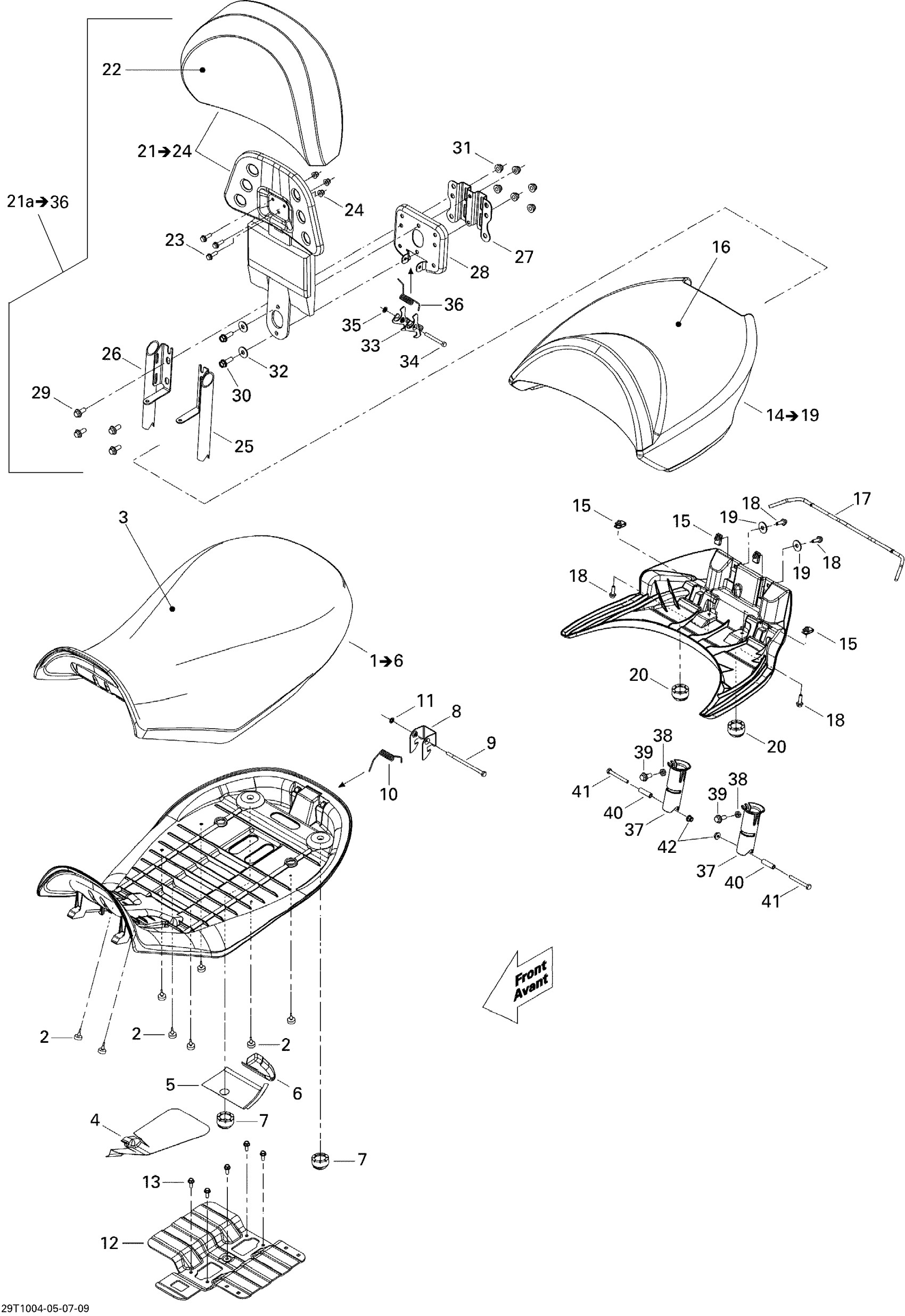

Can-Am Outlander Max 800R EFI, 2010 09- Seat Diagram

#

Description
Price

1

Seat Assembly | Includes 1 to 6

708001649

$489.99

2

Rubber Stopper

708000759

$4.19

3

Seat Cover

708000538

$88.99

4

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

5

REFLECTING SHEET - Call your local BRP dealership

708000470

Unavailable

6

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable

7

Bumper Rubber

708000760

$10.49

8

Latch, Black

708000144

$11.99

9

Hex. Screw M6 X 110

230061034

$2.11

10

Spring

708000369

$9.19

11

Push Nut

732610072

$2.19

12

REINFORCEMENT SEAT - Call your local BRP dealership

708000817

Unavailable

13

Hex. Flange Screw M6 X 12

210261250

$1.90

14

Rear Seat Ass'y | Includes 16 to 20

708000805

$234.99

15

Panel Nut M6 X 1.0

250100198

$2.11

16

Seat Cover

708000457

$164.49

17

LATCH HANDLE - Call your local BRP dealership

708000822

Unavailable

18

Hex. Flange Screw M6 X 20

207662044

$2.00

19

Lock Washer M6, Black

234161471

$0.53

20

Bumper Rubber

708000760

$10.49

21

Backrest Ass'y

708000809

$519.99

21a

Not Available As Spare Part - Friction Washer

Unavailable

22

Backrest Cover

708000465

$126.99

23

Hex. Flange Screw M6 X 20

207662044

$2.00

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

25

LH BACKREST STEM - Call your local BRP dealership

708000439

Unavailable

26

RH BACKREST STEM - Call your local BRP dealership

708000443

Unavailable

27

REAR PLATE - Call your local BRP dealership

708000855

Unavailable

28

FRONT PLATE - Call your local BRP dealership

708000446

Unavailable

29

Hex. Flange Screw M8 X 20

207682044

$1.15

30

Hex. Flange Screw M8 X 25

207682544

$1.35

31

Hex. Flange Elastic Nut M8

233281414

$1.47

32

Flat Washer 8 mm

234082410

$1.47

33

LATCH - Call your local BRP dealership

708000448

Unavailable

34

Hex. Screw M6 X 55

207065544

$2.11

35

Push Nut

732610072

$2.19

36

Spring

708000369

$9.19

37

ROD GUIDE - Call your local BRP dealership

708000461

Unavailable

38

Hex. Jam Nut M8

232180600

$0.67

39

HEX. CAP SCREW M8 X 20 - Call your local BRP dealership

207182034

Unavailable

40

INNER BUSHING - Call your local BRP dealership

708000530

Unavailable

41

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065034

Unavailable

42

Flange Elastic Nut M6

233261434

$4.44
