Description

Price

10

Interior Open Carrier Kit | Includes 10 to 10a2

715008984

$1,569.99

10a1

Cargo Box Inside Ass'y

715007479

$1,959.99

10a2

Tire Pressure Warning Label

704909634

Unavailable

100b1

LH Cargo Panel

708303499

$579.99

100b2

LH Cargo Panel

708303499

$579.99

100b3

Hex. Screw Pt K60 X 25

250000980

$2.11

100b4

Flat Washer M6.6 X 22

250200162

$2.32

100b5

Rubber Bumper

293830005

$8.09

100b6

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

100b7

Bushing

293900101

$7.87

100b8

Flat Washer M6.6 X 22

250200162

$2.32

100b9

LH Panel Support | Includes 100b9 to 100b9a7

708304595

$119.99

100b9a7

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

100c1

RH Cargo Panel

708303500

$579.99

100c2

RH Cargo Panel

708303500

$579.99

100c3

Hex. Screw Pt K60 X 25

250000980

$2.11

100c4

Flat Washer M6.6 X 22

250200162

$2.32

100c5

Rubber Bumper

293830005

$8.09

100c6

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

100c7

Bushing

293900101

$7.87

100c8

Flat Washer M6.6 X 22

250200162

$2.32

100c9

RH Panel Support | Includes 100c9 to 100c9a7

708304596

$119.99

100c9a7

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

100d1

Tailgate Ass'y

708303501

$429.99

100d2

Tailgate Ass'y

708303501

$429.99

100d3

Hex. Screw Pt K60 X 25

250000980

$2.11

100d4

Flat Washer M6.6 X 22

250200162

$2.32

100d5

LH Tailgate Support

708304597

Unavailable

100d6

Hex. Flange Screw M6 X 25

207662554

$1.48

100d7

Hex. Flange Screw M6 X 35

207663554

$2.11

100d8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100d9

Flat Washer M6.6 X 22

250200162

$2.32

100d10

Bushing

293900101

$7.87

100d11

RH Tailgate Support

708304598

$28.99

100d12

Cable Retaining

708302893

$30.99

110

Pop Rivet 3/16”

293150108

$1.19

120

Torx Screw M6 X 20

250000722

$1.68

130

Flat Washer M6.6 X 22

250200162

$2.32

140

LH Rear Reflector

708303264

$13.49

150

RH Rear Reflector

708303265

$13.49

200

Deflector

708303216

$55.99

210

Pop Rivet 3/16”

293150108

$1.19

230

Washer

517124300

$0.19

300

Taillight Support

708303496

$104.99

310

Torx Screw Truss Head K50X20 T20

250000760

$2.11

320

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

330

Red, Reflector

705016982

$14.49

340

Elastic Stop Nut M5

232551414

$0.87

400

Open Carrier Frame Kit

715008399

$569.99

410

Hex. Flange Screw M8 X 70

207587044

$1.03

420

Flat Washer M8

250200187

$2.11

430

Insert Half Hex Body M6 x 1.0

250100199

$3.19

450

Insert Half Hex Body M6 x 1.0

250100199

$3.19

460

Protruding Stud M8 X 28

250300645

$3.99

465

Hex. Flange Screw M8 X 25

207682544

$1.35

470

Rubber Stopper

708304601

$2.29

480

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

500

Front Square Tube

708303709

$25.99

510

Hex. Flange Screw M8 X 20

207682046

$1.90

520

Hex. Elastic Flange Nut M8

233281416

$1.48

530

Insert Half Hex Body M6 x 1.0

250100199

$3.19

540

Rubber Stopper

708304601

$2.29

540a

Washer

224060251

$0.58

550

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

800

LH Stopper

708304411

$3.59

810

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

900

RH Stopper

708304412

$3.59

1000

Retaining Plate

708301480

$9.69

1010

Hex. Flange Screw M6 X 20

207662054

$1.01

1110

Torx Flat Head Screw T-30 S.Grip M6X25

250001107

$2.11

1120

D-Ring

708302990

$4.29

1130

Tie-Down Ring Spring

708302991

$2.39

1140

Tie-Down Ring Bracket

708302992

$2.39

1200a

Latch Ass'y

511001014

$38.99

1210

Torx Truss M8 X 65

250000901

$1.90

1220

Elastic Flange Nut M8

233281464

$1.01

1230

Stainless Steel Flat Washer

234082670

$2.11

1300

Female Hinge

708304581

$36.99

1310

Flat Washer 8 mm

234082410

$1.47

1320

Hex. Flange Elastic Nut M8

233281414

$1.47

1330

O-Ring

293300131

$5.29

1340

Hinge Bushing

708303361

$11.99

2000

Actuator Open Carrier Kit

715007096

$1,283.99

2005

Hex Flange Screw M6 X 16

250000906

$5.29

2010

Pin Clevis

250400096

$6.14

2020

Hair Pin

414575600

$1.89

2030

Heat Shield

707900889

$11.63

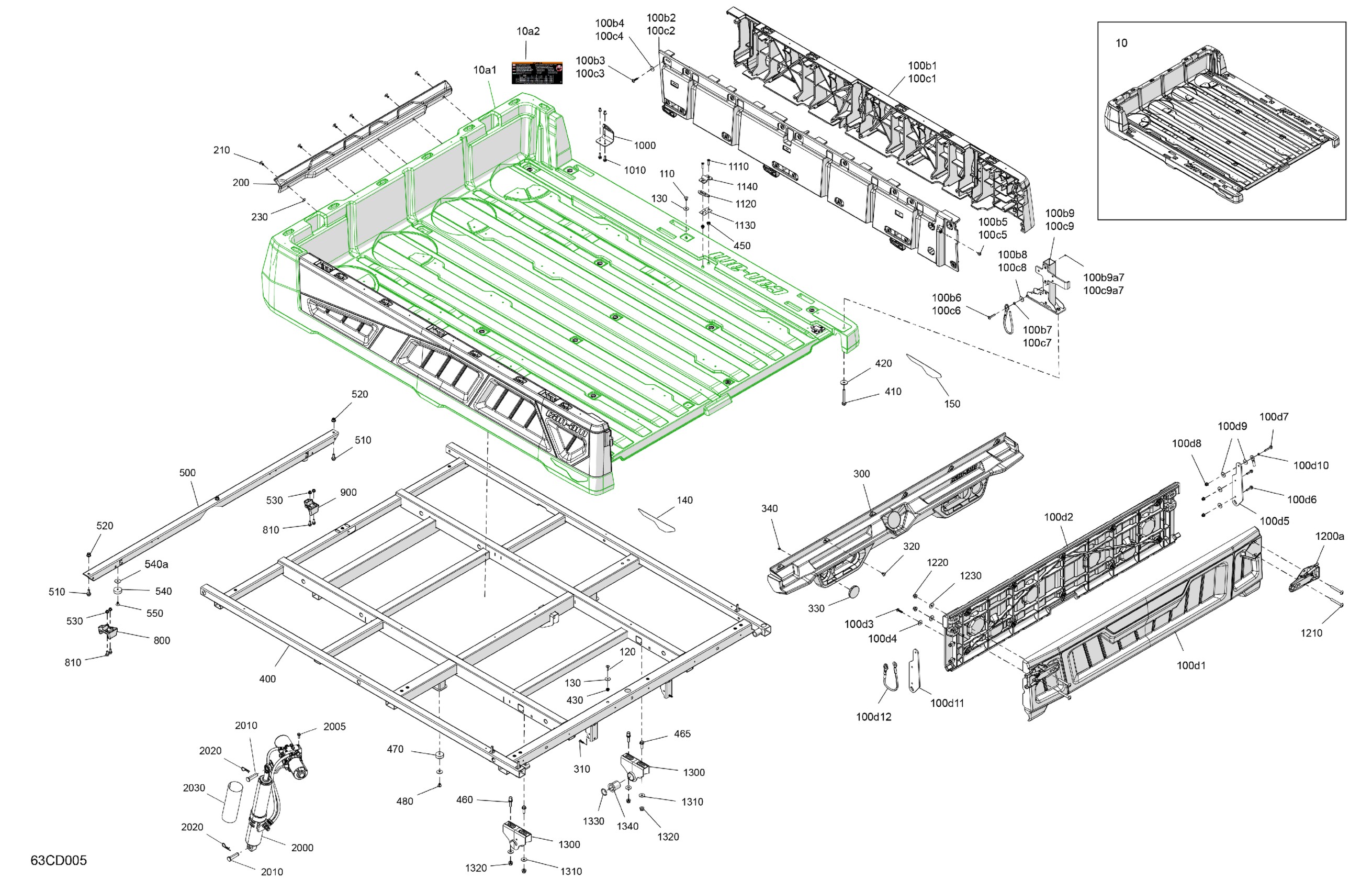

Can-Am North America - Defender PRO HD10 - LTD CAB - 9HRD - Asphalt Grey - 67" Width, 2024 07- Body - Cargo Diagram

Interior Open Carrier Kit | Includes 10 to 10a2

Cargo Box Inside Ass'y

Tire Pressure Warning Label

LH Cargo Panel

LH Cargo Panel

Hex. Screw Pt K60 X 25

Flat Washer M6.6 X 22

Rubber Bumper

Torx Truss Hex. Screw M6X35, Nylon Patch

Bushing

Flat Washer M6.6 X 22

LH Panel Support | Includes 100b9 to 100b9a7

Pop Rivet 3/16" | DS 650 X

RH Cargo Panel

RH Cargo Panel

Hex. Screw Pt K60 X 25

Flat Washer M6.6 X 22

Rubber Bumper

Torx Truss Hex. Screw M6X35, Nylon Patch

Bushing

Flat Washer M6.6 X 22

RH Panel Support | Includes 100c9 to 100c9a7

Pop Rivet 3/16" | DS 650 X

Tailgate Ass'y

Tailgate Ass'y

Hex. Screw Pt K60 X 25

Flat Washer M6.6 X 22

LH Tailgate Support

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 35

Hex. Flange Elastic Nut M6 x 1.0

Flat Washer M6.6 X 22

Bushing

RH Tailgate Support

Cable Retaining

Pop Rivet 3/16”

Torx Screw M6 X 20

Flat Washer M6.6 X 22

LH Rear Reflector

RH Rear Reflector

Deflector

Pop Rivet 3/16”

Washer

Taillight Support

Torx Screw Truss Head K50X20 T20

Black, Pop Rivet 3/16 X ,550

Red, Reflector

Elastic Stop Nut M5

Open Carrier Frame Kit

Hex. Flange Screw M8 X 70

Flat Washer M8

Insert Half Hex Body M6 x 1.0

Insert Half Hex Body M6 x 1.0

Protruding Stud M8 X 28

Hex. Flange Screw M8 X 25

Rubber Stopper

Black, Pop Rivet 3/16 X ,550

Front Square Tube

Hex. Flange Screw M8 X 20

Hex. Elastic Flange Nut M8

Insert Half Hex Body M6 x 1.0

Rubber Stopper

Washer

Black, Pop Rivet 3/16 X ,550

LH Stopper

Hex. Flange Screw M6 X 16, Scotch Grip

RH Stopper

Retaining Plate

Hex. Flange Screw M6 X 20

Torx Flat Head Screw T-30 S.Grip M6X25

D-Ring

Tie-Down Ring Spring

Tie-Down Ring Bracket

Latch Ass'y

Torx Truss M8 X 65

Elastic Flange Nut M8

Stainless Steel Flat Washer

Female Hinge

Flat Washer 8 mm
