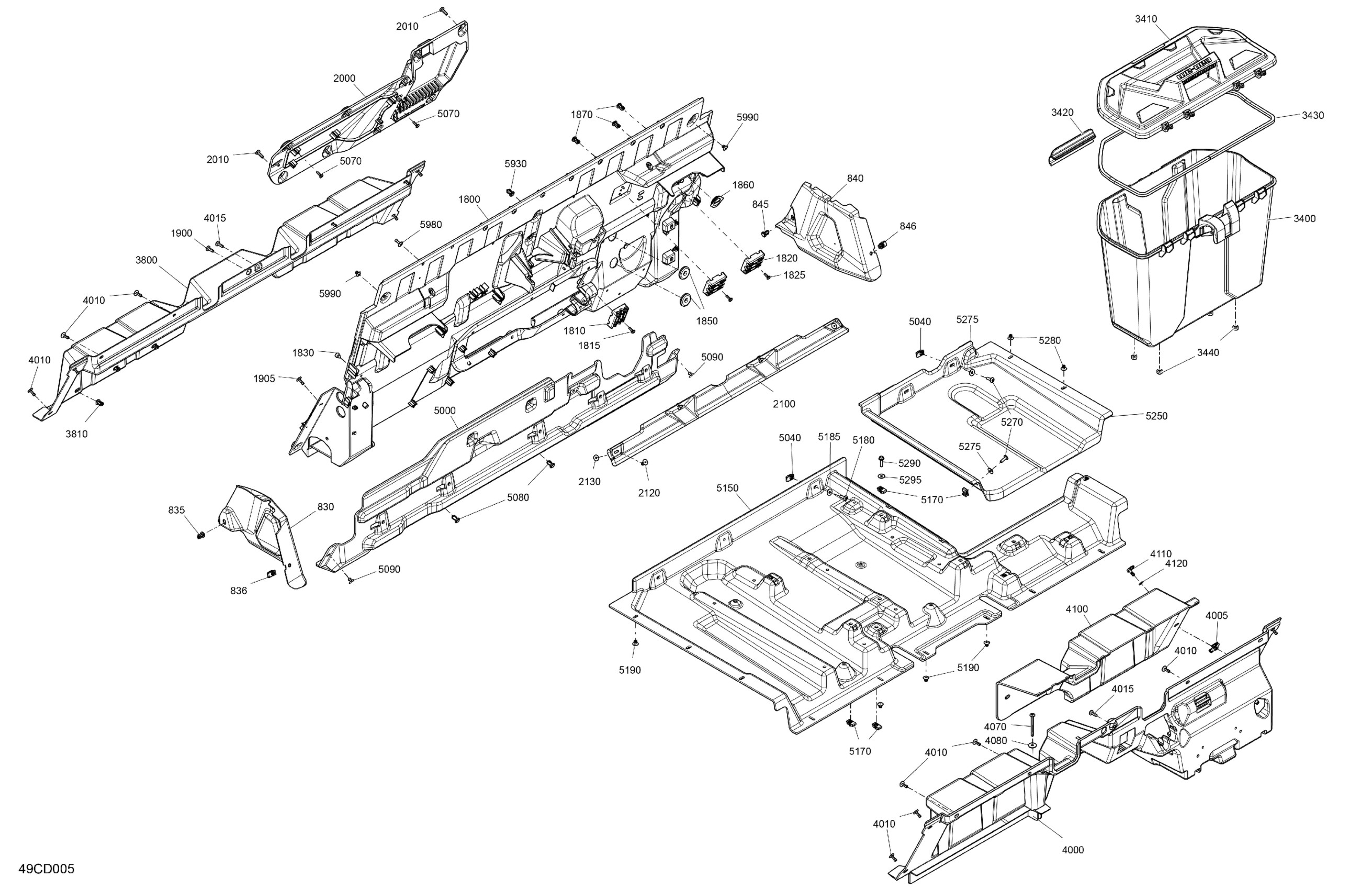

Can-Am North America - Defender PRO HD10 - XT - 6ERC - Timeless Black Metallic - 64" Width CALI, 2024 07- Cab Interior - Back Wall Diagram

Description

Price

830

LH Lower Panel

707901002

$82.99

835

Tuflok Plastic Rivet

293150230

$1.47

836

Panel Nut M6 X 1.0

250100198

$2.11

840

RH Lower Panel

707901003

$82.99

845

Tuflok Plastic Rivet

293150230

$1.47

846

Panel Nut M6 X 1.0

250100198

$2.11

1800

Rear Upper Cab Panel Kit

715008401

$469.99

1800a1

Cage Warning Label

704908188

Unavailable

1810

Hose Support

707900788

$0.92

1815

Torx Screw K50 X 16

250000720

$1.69

1820

Hose Support

707900788

$0.92

1825

Torx Screw K50 X 16

250000720

$1.69

1830

Rubber Bumper

293830005

$8.09

1850

Grommet

293720119

$4.19

1860

Plug

293000125

$1.15

1870

Tuflok Plastic Rivet

293150230

$1.47

1900

Torx Screw M6 X 20

250000722

$1.68

1905

Pop Rivet 3/16"

293150100

$1.09

2000

Rear Access Cover

707900742

$83.99

2010

Torx Screw M6 X 20

250000712

$2.11

2100

Rear Deflector

707900795

$86.99

2120

Pop Rivet 3/16"

293150100

$1.09

2130

Washer M5

250200025

$0.74

3400

Storage Box

715003314

$106.49

3410

Storage Box

715003314

$106.49

3420

Clip | Outlander Max

269501945

$15.89

3430

Neoprene Seal

293250453

$19.49

3440

Rubber Bumper

293830005

$8.09

3800

Rear Panel

707900722

$204.99

3810

Tuflok Plastic Rivet

293150230

$1.47

4000

Rear Lower Cab Panel

707901074

$219.99

4005

Quarter Turn Nut

705002651

$4.76

4010

Pop Rivet 3/16"

293150100

$1.09

4015

Torx Screw M6 X 20

250000722

$1.68

4070

Torx Screw M6 X 70

250000954

$1.90

4080

Flat Washer M6.6 X 22

250200162

$2.32

4100

Battery Cover

707900743

$90.99

4110

Quarter Turn Screw

705002649

$15.87

4120

Washer

708400286

$3.99

5000

Front Upper Box Panel

707900800

$219.99

5040

Panel Nut M6 X 1.0

250100198

$2.11

5070

Torx Screw K50 X 16

250000720

$1.69

5080

Tuflok Plastic Rivet

293150230

$1.47

5090

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

5150

LH Upper Box Panel

707901044

$214.99

5170

Panel Nut M6 X 1.0

250100198

$2.11

5180

Torx Screw M6 X 20

250000722

$1.68

5185

Stainless Steel Flat Washer

234062670

$2.11

5190

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

5250

RH Upper Box Panel

707900721

$219.99

5270

Torx Screw M6 X 20

250000722

$1.68

5275

Stainless Steel Flat Washer

234062670

$2.11

5280

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

5290

Hex. Flange Screw M6 X 25

207562544

$1.69

5295

Stainless Steel Flat Washer

234062670

$2.11

5930

Tuflok Plastic Rivet

293150230

$1.47

5980

Pop Rivet 3/16"

293150100

$1.09

5990

Pop Rivet 3/16"

293150103

$0.55
