Description

Price

1

CVT Air Guide

420212604

$224.99

2

Gasket

420450400

$31.99

3

O-Ring | Included in gasket kit

420430409

$5.29

4

O-Ring

420450431

$5.29

5

Hex.Screw M6 X 20

420441311

$5.18

6

Variator Cover

420212503

$184.99

7

Cap

420441820

$11.63

8

O-Ring

420250052

$10.43

9

Torx Screw 6X30

420441575

$3.06

10

Governor Cup Ass'y

420280746

$194.99

11

Slider Shoe Set

420281296

$65.49

12

Roller Axle

417223257

$6.99

13

Roller

417223767

$11.59

14

O-Ring

420230456

$2.09

15

Outer Half Ass'y

420280609

$379.99

16

Lever Set | Includes 16-19

420248688

$206.49

17

Not Available As Spare Parts

XXX

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Bearing Cover Ass'y

420280615

$65.49

21

Torx Flange Screw M6 X 25

420841549

$2.00

22

Compression Spring

420638119

$35.99

23

Spring Seat

420427210

$37.99

24

Washer

420427220

$4.86

25

Needle Roller Bearing With Sleeves

420832351

$49.99

26

Inner Half Ass'y

420280596

$339.99

27

Washer

420245690

$4.86

28

Hexagonal Screw M14X 165

420841161

$29.49

29

Sliding Pulley Ass'y

420280636

$349.99

30

Drive Belt

422280656

$174.99

31

Outer Half Ass'y

420280628

$369.99

32

Pulley Roller

417127016

$24.49

33

Thrust Washer

420227946

$2.51

34

Lock Washer 8 mm

250200009

$2.11

34

Bearing Pin

420629192

$16.34

35

Torx Screw M4 X 20

420841531

$2.09

36

Spring Support

420427805

$11.17

37

Compression Spring

420638124

$37.99

38

Cam

420280758

$116.49

39

Torx Flange Screw M10 X 40

420841711

$2.09

40

Collar Washer

420427243

$16.40

41

Hexagonal Screw M10X 61

420441990

$19.49

42

Closure Cap

420201940

$22.49

43

Ear Clamp 87.3-90.5MM

420251485

$8.11

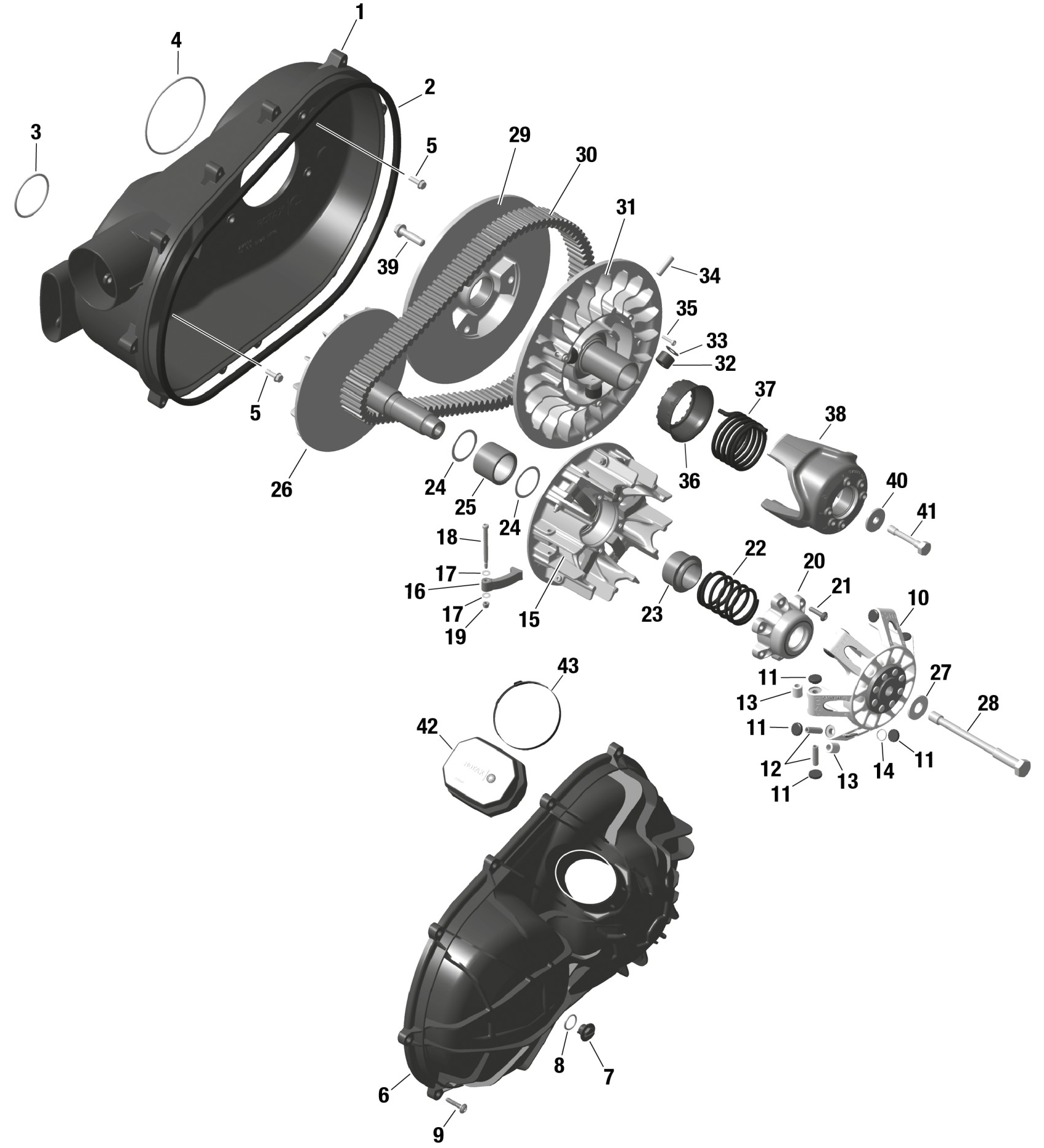

Can-Am North America - Defender HD9 - DPS - 8ERC - Fiery Red Metallic - 62" Width CALI, 2024 01- ROTAX - CVT Diagram

CVT Air Guide

Gasket

O-Ring | Included in gasket kit

O-Ring

Hex.Screw M6 X 20

Variator Cover

Cap

O-Ring

Torx Screw 6X30

Governor Cup Ass'y

Slider Shoe Set

Roller Axle

Roller

O-Ring

Outer Half Ass'y

Lever Set | Includes 16-19

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Bearing Cover Ass'y

Torx Flange Screw M6 X 25

Compression Spring

Spring Seat

Washer

Needle Roller Bearing With Sleeves

Inner Half Ass'y

Washer

Hexagonal Screw M14X 165

Sliding Pulley Ass'y

Drive Belt

Outer Half Ass'y

Pulley Roller

Thrust Washer

Lock Washer 8 mm

Bearing Pin

Torx Screw M4 X 20

Spring Support

Compression Spring

Cam

Torx Flange Screw M10 X 40

Collar Washer

Hexagonal Screw M10X 61

Closure Cap

Ear Clamp 87.3-90.5MM
