Description

Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 to 9

705600306

Unavailable

2

Brake Pad Kit

705600004

$51.99

3

Piston Set

705600078

$38.99

4

Spring

705600079

$15.81

5

Bleeding Screw

705600080

$16.87

6

Pin Set (2)

705600081

$20.49

7

Compression Boot

705600082

$10.06

8

Compression Boot

705600083

$10.06

9

RH Caliper Support

705600299

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 to 18

705600307

Unavailable

11

Brake Pad Kit

705600014

$51.99

12

Piston Set

705600078

$38.99

13

Spring

705600079

$15.81

14

Bleeding Screw

705600080

$16.87

15

Pin Set (2)

705600081

$20.49

16

Compression Boot

705600082

$10.06

17

Compression Boot

705600083

$10.06

18

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

19

Front Master Cylinder | Includes 19 to 26

705600844

$229.99

20

Lever Arm

705600243

$54.99

21

PISTON KIT - Call your local BRP dealership

705600244

Unavailable

22

Cap Set

705600084

$24.99

23

Brake Lever Bolt Kit

705600246

$14.81

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

27

Front Hose

705600352

Unavailable

28

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

29

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

30

Copper Washer

705601628

$4.44

31

Rear Hose

705600373

Unavailable

32

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.70

33

Rear Master Cylinder | Includes 33 to 40

705600254

$224.99

34

Piston Set

705600255

$64.49

35

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

36

REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership

705600154

Unavailable

37

Circlip

705600068

Unavailable

38

Compression Boot

705600090

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

41

OIL HOUSING HOSE - Call your local BRP dealership

705600262

Unavailable

42

Pin Kit

219702305

$34.99

43

Yoke

705600100

Unavailable

44

Hex. Nut M8

232081414

$0.72

45

Pop Rivet 3/16"

390406500

$0.88

46

Interrupteur *Brake Switch

710001345

$36.99

47

Was 293800013 Loctite 56765

219704454

$65.99

48

Rear Caliper | Includes 48 to 56

705600577

$317.99

49

LH Brake Pad Kit

705600398

$51.99

50

Piston Set

705600399

Unavailable

51

Spring

705600079

$15.81

52

Bleeding Screw

705600080

$16.87

53

Pin Set (2)

705600081

$20.49

54

Compression Boot

705600082

$10.06

55

Compression Boot

705600083

$10.06

56

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

57

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

58

BRAKE PEDAL - Call your local BRP dealership

705600265

Unavailable

59

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

60

Hex. Flange Screw M6 X 16

207661644

$0.74

61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

62

Synthetic Grease, 400 G

293550010

Unavailable

63

O-RING - Call your local BRP dealership

293300053

Unavailable

64

SPACER - Call your local BRP dealership

705600283

Unavailable

65

Hex. Flange Screw M10 X 55

207605544

$3.38

66

Hex. Flange Elastic Nut M10

233201414

$1.58

67

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

68

Disk Brake

705600604

$50.99

69

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

70

Hex. Flange Screw M6 X 25

207662544

$0.64

71

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

72

Disk Brake

705600604

$50.99

73

Hose Support

705600284

Unavailable

74

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

75

CLAMP - Call your local BRP dealership

705600311

Unavailable

76

Hex. Flange Screw M8 X 20

207682044

$1.15

77

Hex. Flange Elastic Nut M8

233281414

$1.47

78

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

78

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

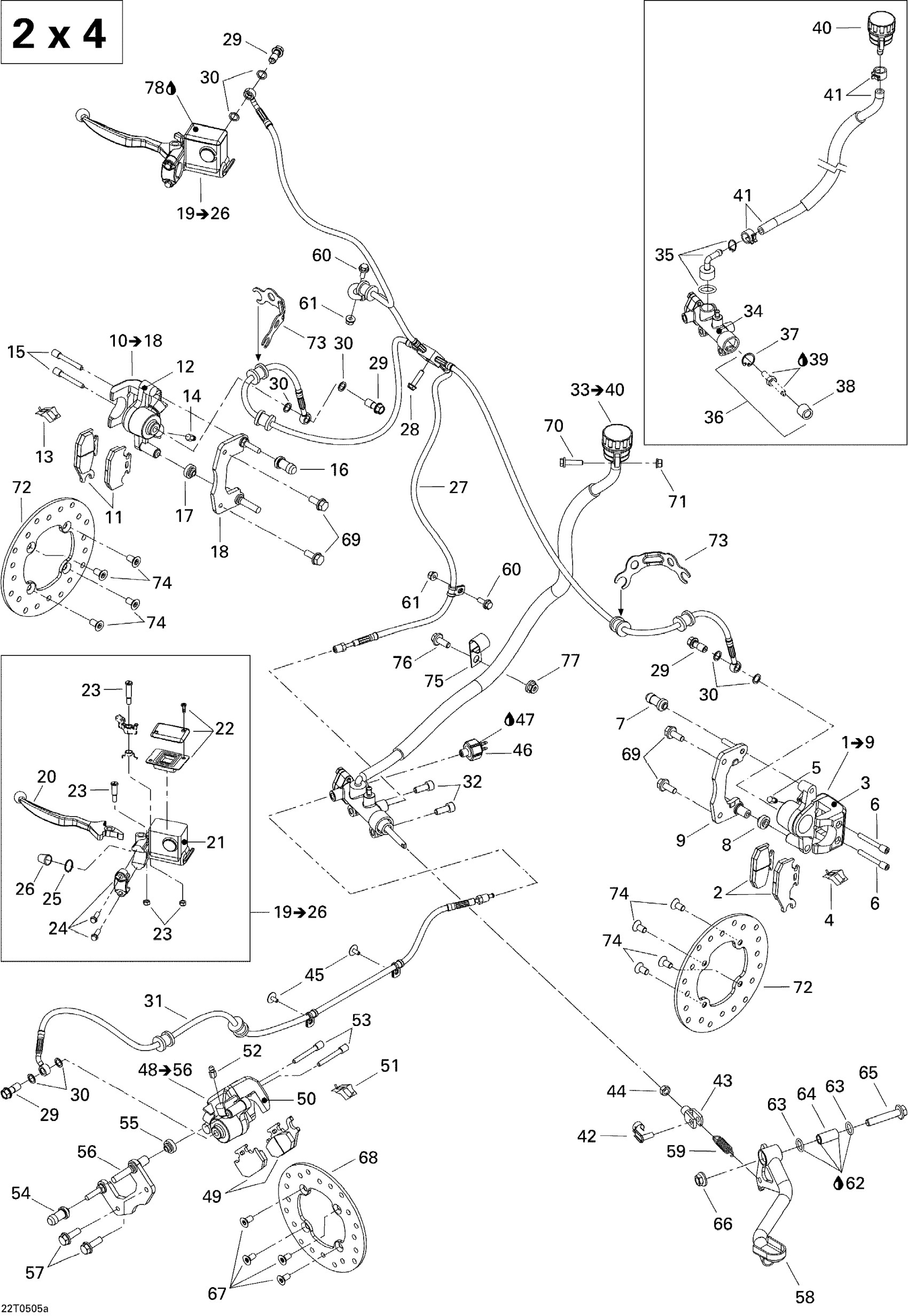

Can-Am Outlander 330/400 STD 2 X 4, 2005 06- Hydraulic Brake 2 X 4 Diagram
