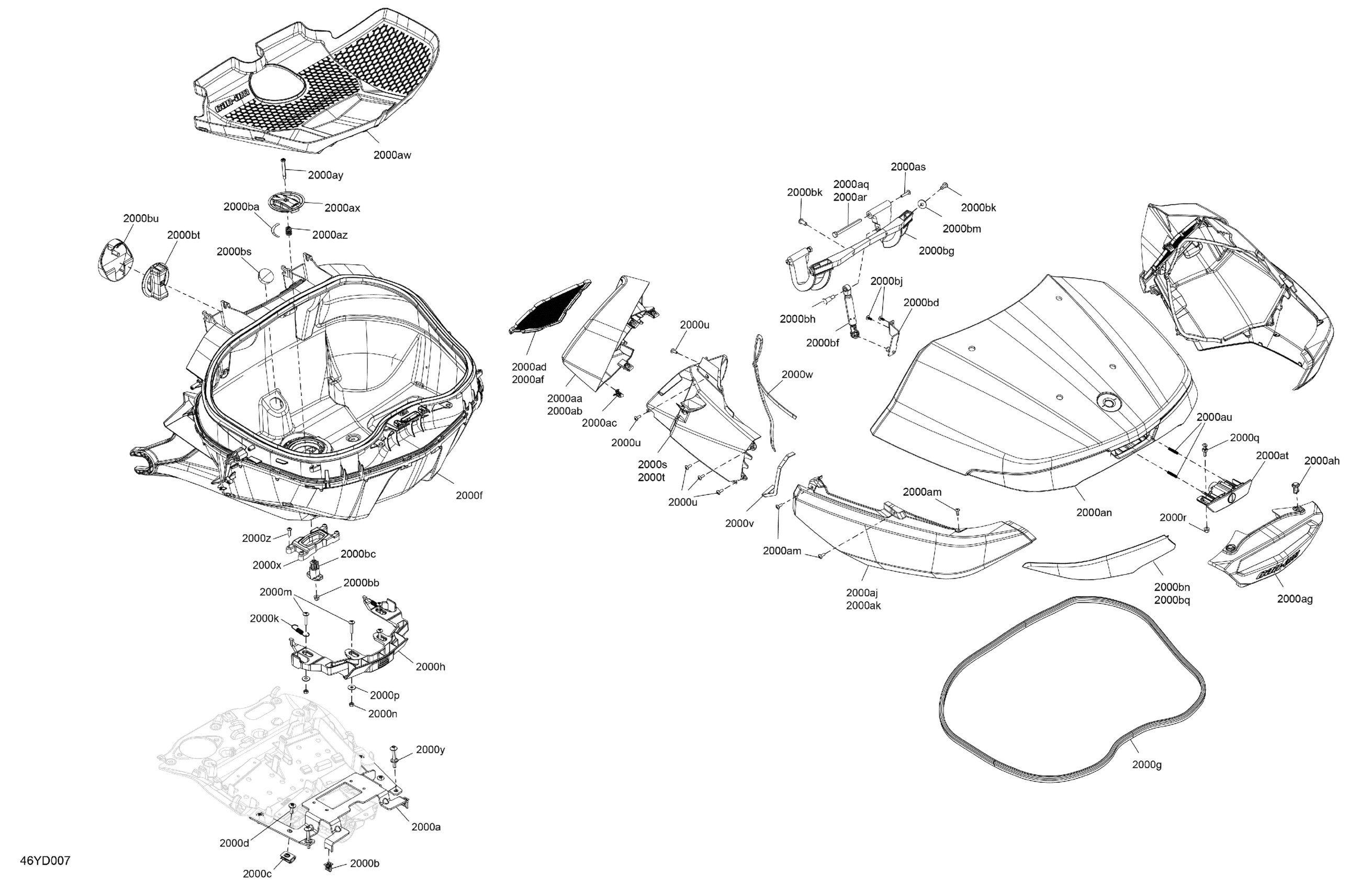

Can-Am China - F3 LIMITED - Special Edition - H7RD - LIMITED - Cognac, 2024 07- Body - Top Cargo Box Diagram

#

Description
Price

2000a

Central Box Support

708303417

$89.99

2000b

Edge Clip

517302785

$0.88

2000c

Panel Nut M6 X 1.0

250100208

$1.46

2000d

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

2000f

Central Bonded Storage Box

708304656

$439.99

2000g

Trim

293250579

$15.99

2000h

Latch

708303384

$14.99

2000k

Tension Spring

705601862

$2.99

2000m

Torx Screw M5 X 25

250000762

$2.11

2000n

Hex. Nut M5

232051600

$1.15

2000p

Flat Washer 5 mm, Stainless

234052600

$0.77

2000q

Stud

518333307

$13.49

2000r

Flange Elastic Nut M5

233251434

$2.00

2000s

LH Speaker Enclosure

708302113

$19.99

2000t

RH Speaker Enclosure

708302114

$19.99

2000u

Torx Truss PT K40 x 12

250001131

$2.11

2000v

Seal 1000Mm Long

219704373

$8.26

2000w

Seal 1000Mm Long

219704373

$8.26

2000x

LinQ Fastener

708303172

$19.99

2000y

Striker

708303392

$4.39

2000z

Torx Truss Screw M5 X 16, T25

250000578

$2.11

2000aa

LH Rear Speaker Trim

708302692

$45.49

2000ab

RH Rear Speaker Trim

708302693

$45.49

2000ac

Edge Clip

517302785

$0.88

2000ad

LH Speaker Grille

708302106

$4.44

2000af

RH Speaker Grille

708302107

$4.44

2000ag

Light Support

708302152

$12.49

2000ah

Tuflok Plastic Rivet

293150230

$1.47

2000aj

Carbon Black, LH Rear Fairing

708304098

$249.99

2000ak

Carbon Black, RH Rear Fairing

708304102

$244.99

2000am

Torx Truss PT K40 x 12

250001131

$2.11

2000an

Carbon Black, Rear Box Cover

708304141

$459.99

2000aq

RH Hinge Pin

708303376

$14.22

2000ar

LH Hinge Pin

708303377

$14.22

2000as

Torx-Truss M/S M4 X 20

250000783

$2.11

2000at

Trunk Control Ass'y

708302100

$24.49

2000au

Spring

708302198

$2.09

2000aw

Inner Trunk Soft Trim

708303064

$33.99

2000ax

LinQ Lock Knob

708303063

$9.69

2000ay

LinQ Lock Knob Screw

708303262

$2.64

2000az

Spring

708201081

$3.09

2000ba

Lock Decal

704908164

Unavailable

2000bb

Elastic Flange Nut M5

233251494

$2.11

2000bc

RH Latch

708201182

$12.58

2000bd

Shock Reinforcement

708303421

$61.99

2000bf

Shock Absorber

708303630

$76.99

2000bg

Lid Hinge

708303319

$69.99

2000bh

Flange Screw M6 X 26

250000714

$3.91

2000bj

Torx-Truss Screw K40 X 10

250001034

$0.98

2000bk

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

2000bm

Flat washer M6

250200164

$1.01

2000bn

LH Rear Box Trim

708303852

$4.49

2000bq

RH Rear Box Trim

708303870

$4.49

2000bs

Black, Nylon Cap

414916600

$4.69

2000bt

Tool Linq

529000146

$5.26

2000bu

Linq Handle Support

708304121

$1.19
