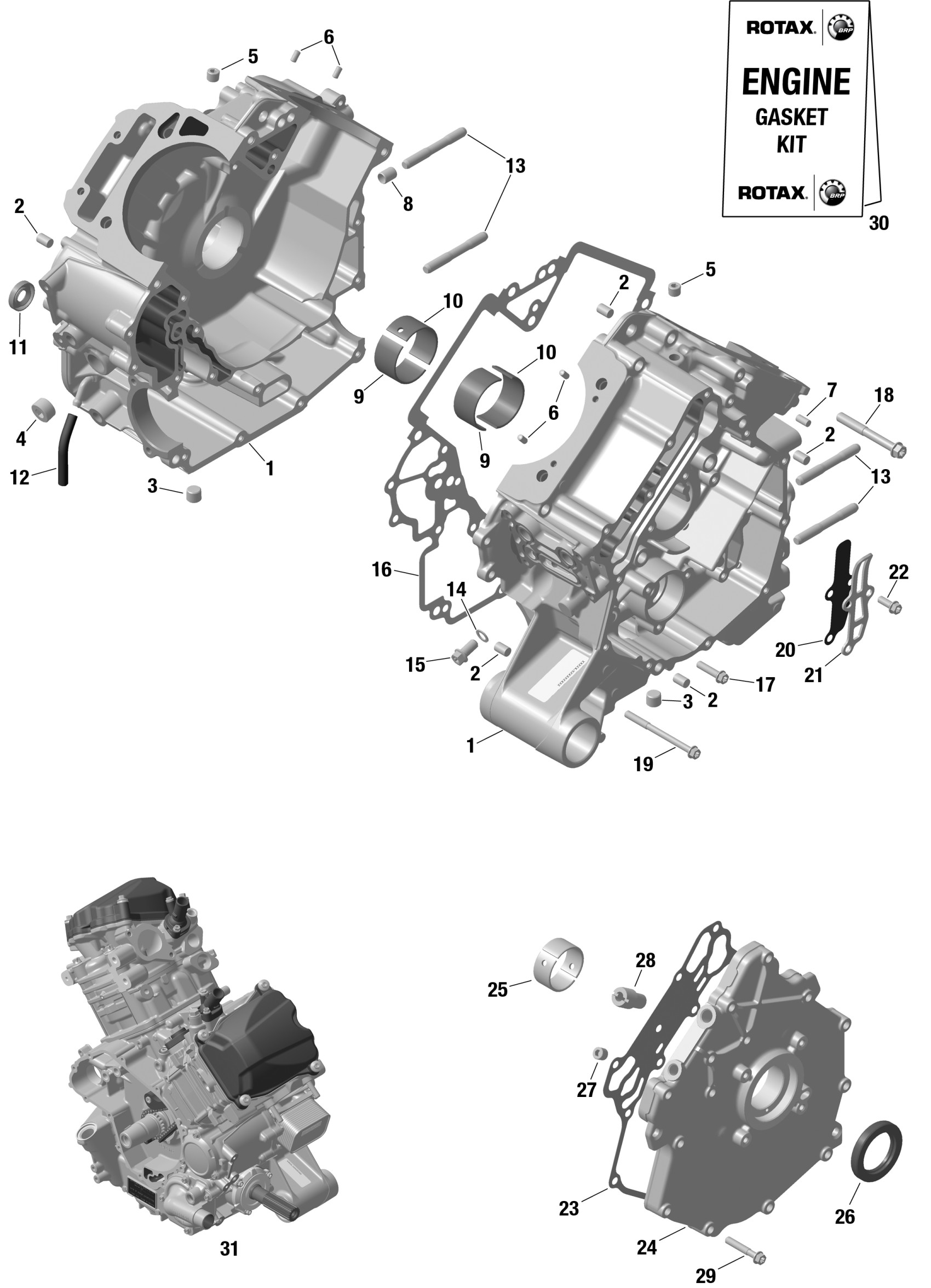

Can-Am North America - Defender HD9 - BASE - 6WRB - Tundra Green - 62" Width, 2024 01- ROTAX - Crankcase Diagram

Description

Price

Crankcase | Includes no. 1-12

420686551

$1,150.49

Center Pin 8 X 12

420632010

$4.01

Plug Screw M12x1,5

420840658

$7.51

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.41

Plug Screw M10 X 1

420641323

$14.28

Drive Pin 5 X 10

420929650

$1.68

Needle Pin

420932780

$7.41

Dowel Pin 10 X 13

420929670

$11.60

Plain Bearing

420233960

$23.99

Plain Bearing

420233965

$23.99

Oil Seal

420650315

$11.65

Not Available As Spare Parts

XXX

Unavailable

Stud

420240816

$7.09

Sealing Ring

420950141

$2.00

Torx Flange Screw M8 X 16

420440852

$4.12

Gasket

420651227

$31.99

Torx Flange Screw M6 X 25

420440234

$3.06

Torx Flange Screw M8 X 65

420440402

$7.41

Flanged Torx Screw M6 X 75

420440658

$4.44

Reed Valve

420224721

$19.19

Reed Valve Stop

420224725

$11.63

Torx Flange Screw M6 X 16

420440162

$3.17

Gasket

420651211

$26.49

PTO Cover Ass'y | Includes 25a to 29

420612335

$280.99

Bearing Sleeve

420233995

$20.99

Oil Seal

420631933

$27.49

Plug Screw M10 X 1

420641323

$14.28

Hose Nipple M12 X 1.5

420256334

$10.58

Torx Flange Screw M6 X 35

420440274

$1.01

Gasket Kit, Engine

420684150

$423.49

Long Block

420101060

$3,995.99
