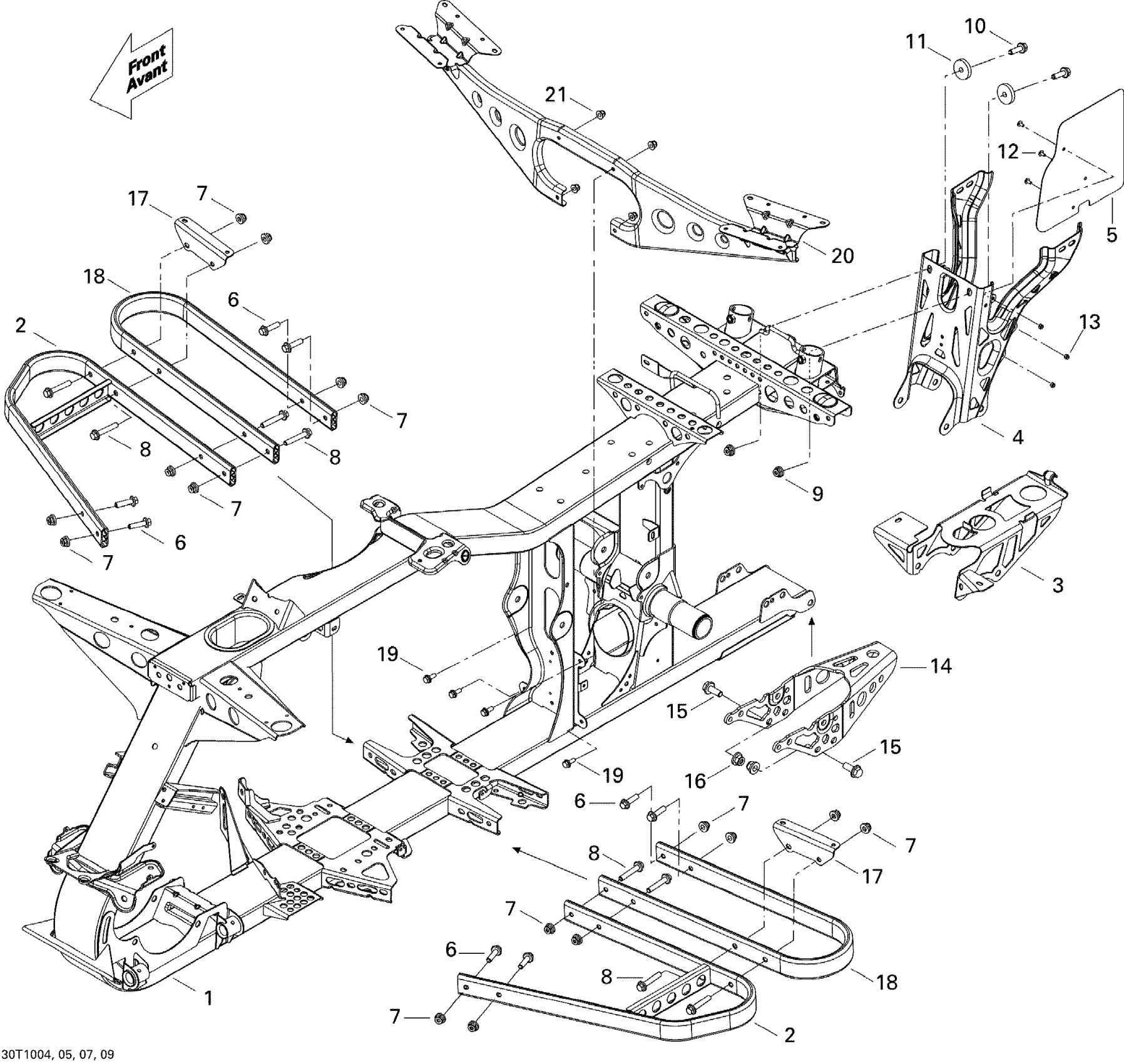

Can-Am Outlander Max 650 EFI, 2010 09- Frame Diagram

#

Description
Price

1

BLACK FRAME - Call your local BRP dealership

705202412

Unavailable

2

OOTBOARD ASS'Y - Call your local BRP dealership

705202081

Unavailable

3

Battery Support Base

705201942

$32.99

4

Rear Support, Black

705203842

$42.99

5

Heat Shield

705202394

$17.49

6

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Hex. Flange Screw M8 X 45

207684544

$3.80

9

Hex. Elastic Flange Nut M8

233281416

$1.48

10

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

11

SPACER - Call your local BRP dealership

705202084

Unavailable

12

Torx Screw M4 X 8

250000127

$1.15

13

Elastic Stop Nut M4

232541484

$0.74

14

TRAILER HOOK KIT - Call your local BRP dealership

715000286

Unavailable

15

Hex. Flange Screw M10 X 25

207602544

$1.69

16

Hex. Flange Elastic Nut M10

233201436

$2.11

17

SUPPORT PLATE, BLACK - Call your local BRP dealership

705202402

Unavailable

18

REAR FOOTREST - Call your local BRP dealership

705201993

Unavailable

19

Hex. Flange Screw M6 X 16

207661644

$0.74

20

Footrest Support

705210817

$76.99

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
