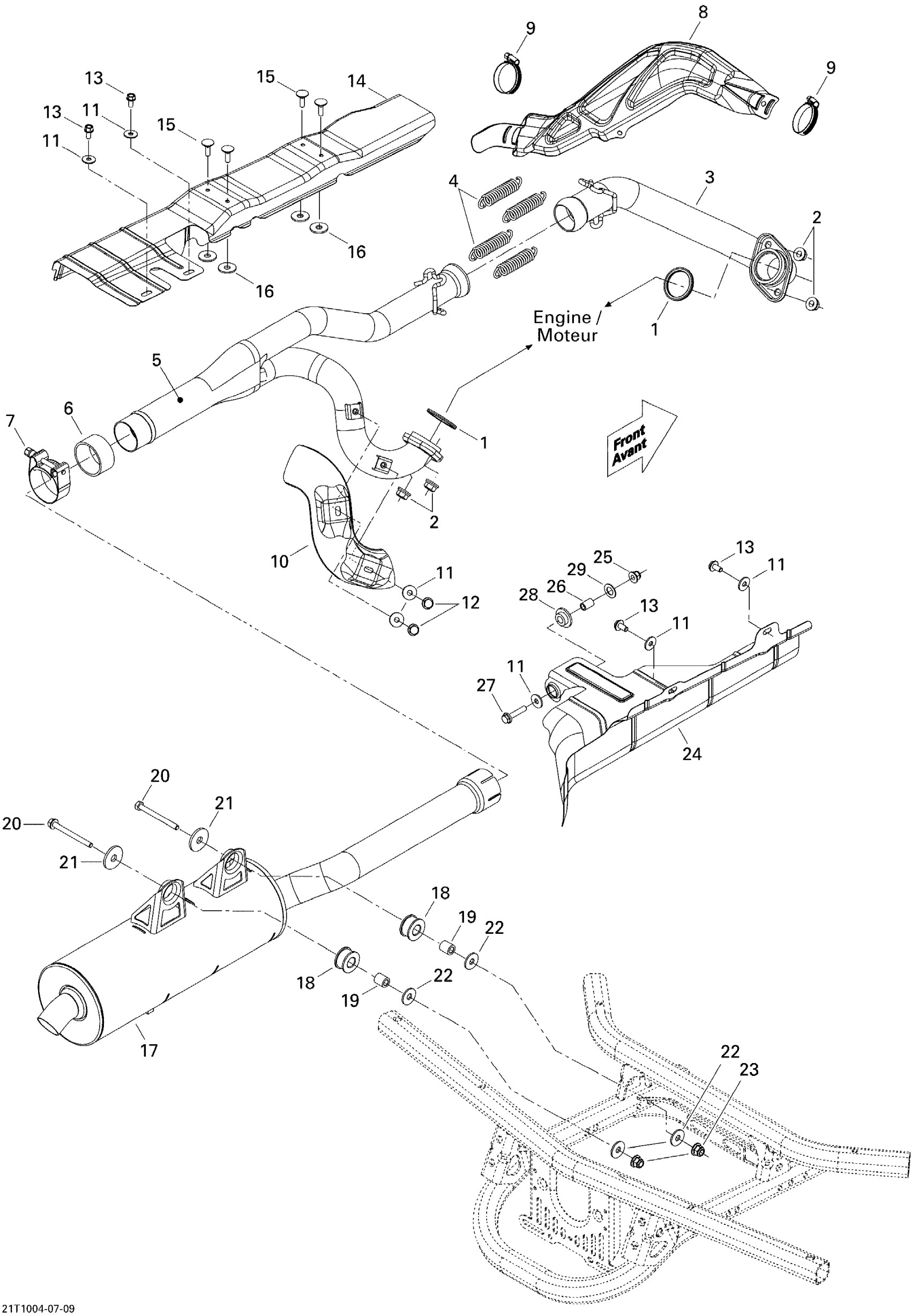

Can-Am Outlander Max 650 EFI, 2010 01- Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$11.60

2

Hex. Flange Nut M8

233081416

$1.15

3

FRONT TUNED PIPE - Call your local BRP dealership

707600529

Unavailable

4

Spring

415107100

$6.35

5

REAR TUNED PIPE - Call your local BRP dealership

707600530

Unavailable

6

Pipe Gasket

707600430

$19.49

7

Norma Gear Clamp

293650177

$10.49

8

Heat Shield

707600889

$36.99

9

Norma Gear Clamp

293650098

$4.44

10

PROTECTOR - Call your local BRP dealership

707600615

Unavailable

11

Flat Washer

250200082

$0.42

12

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

Unavailable

13

Hex. Flange Screw M6 X 12

210261250

$1.90

14

HEAT SHIELD - Call your local BRP dealership

707600699

Unavailable

15

Pop Rivet 3/16"

390406500

$0.88

16

Washer

517124300

$0.19

17

MUFFLER_EXHAUST - Call your local BRP dealership

707600575

Unavailable

17

MUFFLER_EXHAUST - Call your local BRP dealership | Europe

707600577

Unavailable

18

Vibration Damper

707603323

$11.65

19

Bushing

293900106

$4.55

20

Hex. Flange Screw M8 X 70

207687044

$7.41

21

Washer

503032900

$3.28

22

Flat Washer 8 mm

234082410

$1.47

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Protector

707600621

$60.49

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

26

Sleeve

293900078

$13.71

27

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

28

Grommet

705003932

$2.89

29

Washer

503175800

$3.28
