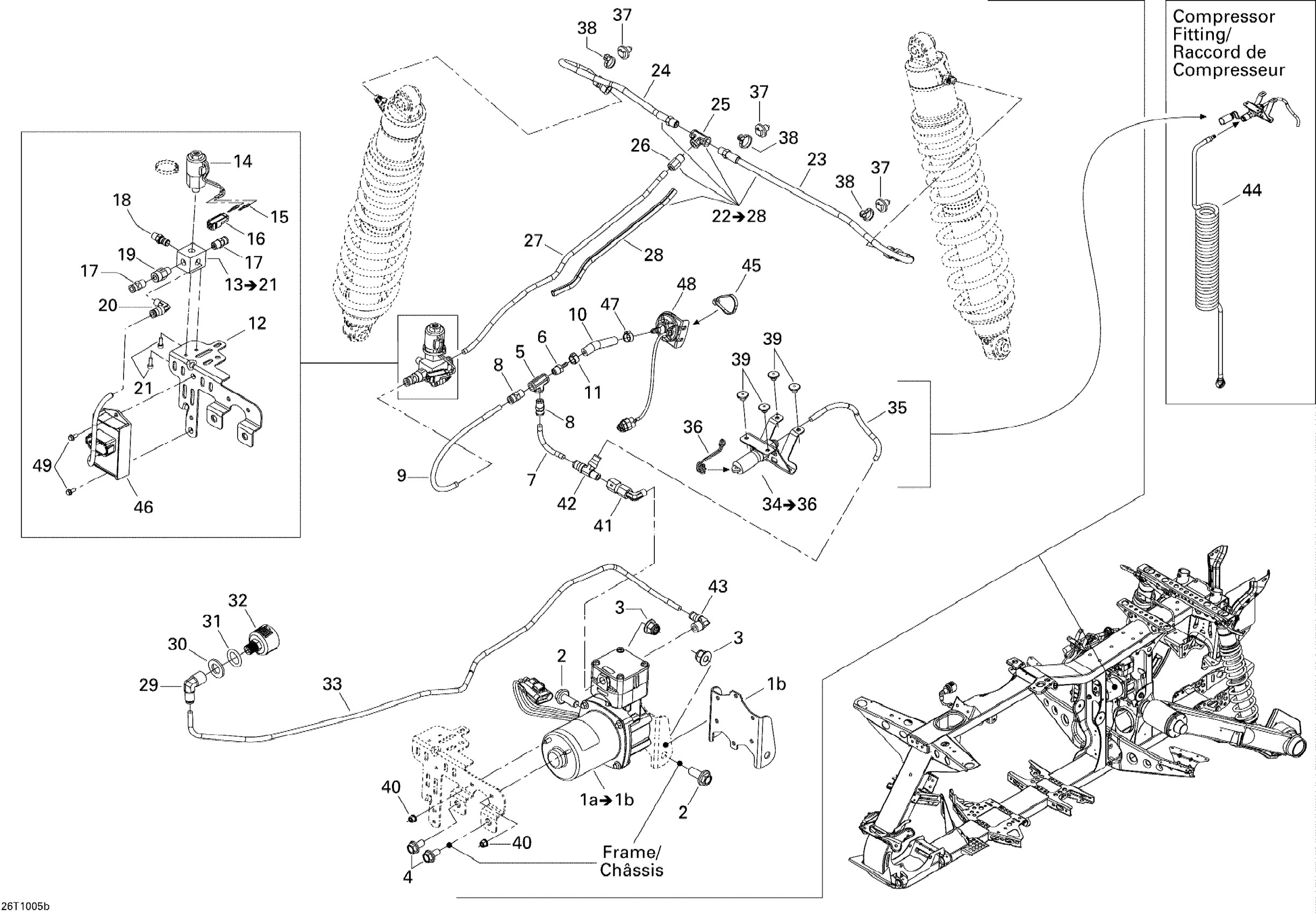

Can-Am Outlander Max 500 EFI Ltd, 2010 08- Rear Suspension 2 Diagram

#

Description
Price

1a

COMPRESSOR ASS'Y - Call your local BRP dealership | Includes 1a to 1b

706000745

Unavailable

1b

Compressor Bracket

715900072

Unavailable

2

Hex. Flange Screw M10 X 25

207602544

$1.69

3

Hex. Flange Elastic Nut M10

233201414

$1.58

4

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

5

T-FITTING - Call your local BRP dealership

706000806

Unavailable

6

CONNECTOR - Call your local BRP dealership

706000799

Unavailable

7

Hose 4.32Mm 3000Mm Long

219704415

$55.99

8

Connector

706000869

$34.99

9

Hose 4.32Mm 3000Mm Long

219704415

$55.99

10

HOSE - Call your local BRP dealership

415129495

Unavailable

11

Clamp Oetiker

293650207

$12.17

12

Front Compressor Support

706000778

Unavailable

13

AIR MANIFOLD ASS'Y - Call your local BRP dealership | Includes 13 to 21

706000747

Unavailable

14

VALVE - Call your local BRP dealership

503189097

Unavailable

15

Male Terminal

515175232

$1.58

16

Male Terminal Housing, 2 Circuits

515175654

$9.12

17

Connector

706000869

$34.99

18

Air Valve

706002797

$18.49

19

Check Valve

706000860

$42.99

20

Elbow 90°

706000872

$28.99

21

Socket Head Screw M4 X 12

205041254

$2.11

22

PNEUMATIC HOSE ASS'Y - Call your local BRP dealership | Includes 22 to 28

706000804

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

T-FITTING - Call your local BRP dealership

706000806

Unavailable

26

Connector

706000869

$34.99

27

Hose 4.32Mm 3000Mm Long

219704415

$55.99

28

Was 409901700 Tubing (9 mm)

219704399

$84.99

29

ELBOW 90 - Call your local BRP dealership

706000796

Unavailable

30

Flat Washer 14 mm

234071410

$1.47

31

Not Available As Spare Part - Friction Washer

Unavailable

32

FILTER - Call your local BRP dealership

706000832

Unavailable

33

Hose 4.32Mm 3000Mm Long

219704415

$55.99

34

BRACKET ASS'Y - Call your local BRP dealership | Includes 34 to 36

706000853

Unavailable

35

Hose 4.32Mm 3000Mm Long

219704415

$55.99

36

O-Ring

414811400

$7.06

37

Mount Dart

293730040

$1.04

38

Tie Wrap 142 mm

293750002

$1.25

39

Pop Rivet 3/16"

390406500

$0.88

40

Hex. Flange Elastic Nut M5

233251414

$1.04

41

FITTING ASS'Y - Call your local BRP dealership

706000939

Unavailable

42

T-FITTING - Call your local BRP dealership

706000795

Unavailable

43

ELBOW 90 - Call your local BRP dealership

706000793

Unavailable

44

Auxiliary Hose

706000808

$104.99

45

Tie Wrap 368 mm

293750008

$1.04

46

Ens Module *Module Kit

703500894

$499.99

47

Clamp Oetiker

293650207

$12.17

48

Air Suspension Sensor

710001825

$189.99

49

HEX. FLANGED SCREW M4 X 10 - Call your local BRP dealership

210241080

Unavailable
