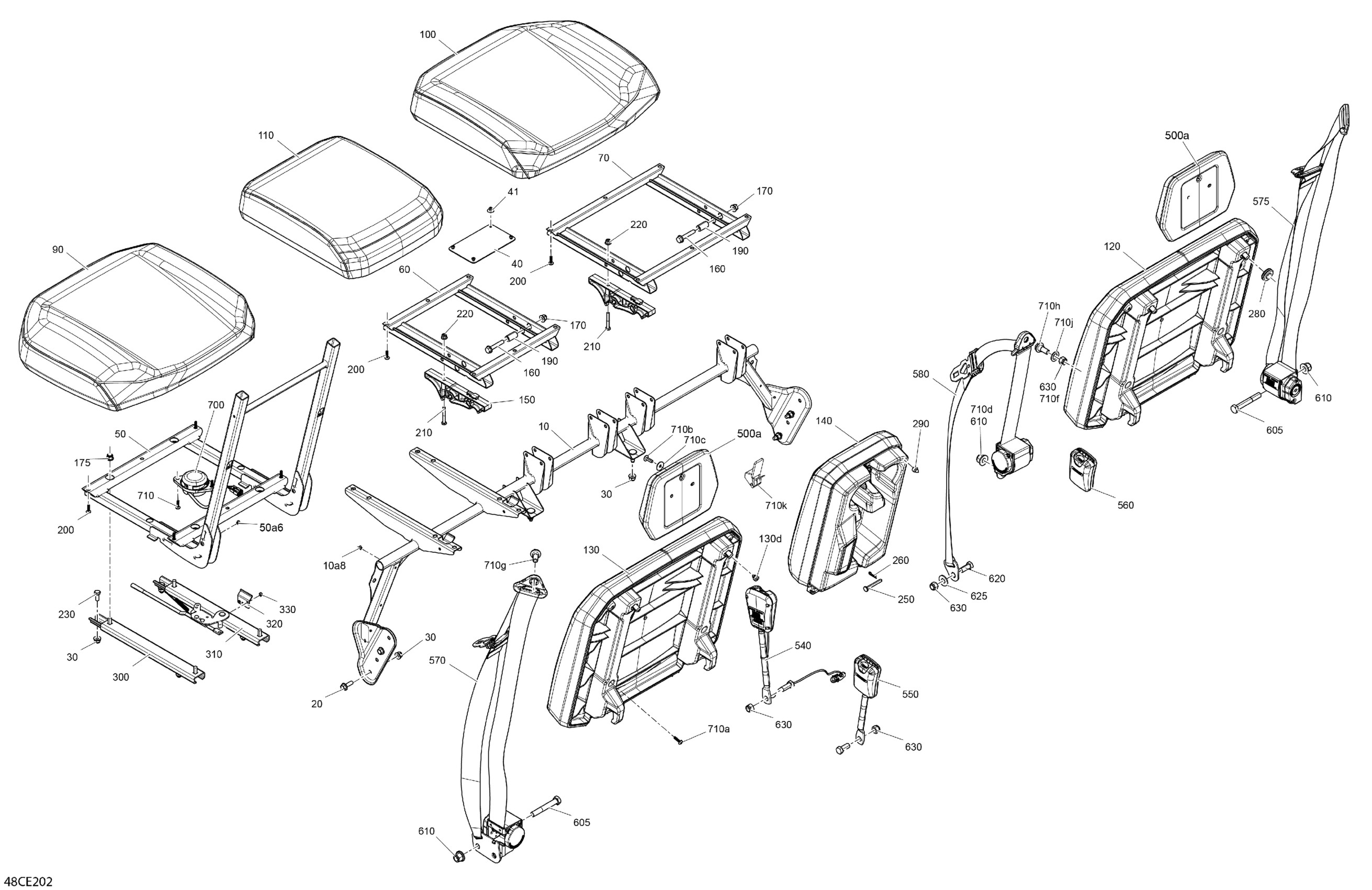

Can-Am CE - Traxter - HD9 - XU - 6NSM - Compass Green - 64" Width - 2025 07- Body - Seat Diagram

#

Description
Price

10

Seat Member | Includes 10 to 10a8

703501076

$139.99

10a8

Pop Rivet 3/16 X ,425

293150293

$0.35

20

Hex. Flange Screw M8 X 25

207682544

$1.35

30

Hex. Flange Elastic Nut M8

233281414

$1.47

40

Seat Plate

708002511

$12.99

41

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

50

Operator Seat Member | Includes 50 to 50a7

708001723

$329.99

50a6

Pop Rivet 3/16 X ,425

293150293

$0.35

50a7

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

60

Mid Seat Member

708002815

$204.99

70

Passenger Seat Member

708002821

$204.99

90

LH Cushion Ass'y

708002481

$249.99

100

RH Cushion Ass'y

708001926

$284.99

110

Central Cushion Ass'y

708001928

$249.99

120

Backrest Ass'y

708001995

$349.99

130

Backrest Ass'y | Includes 130 to 130d

708001930

$349.99

130d

Rubber Bumper

293830005

$8.09

140

Backrest Ass'y

708003157

$349.99

150

Seat Base Pivot

708002581

$9.59

160

Hex. Flange Screw M8 X 45

207684544

$3.80

170

Hex. Flange Elastic Nut M8

233281414

$1.47

175

Hex. Flange Elastic Nut M8

233281414

$1.47

190

Bushing

708003749

$3.79

200

Torx Screw Truss Head K50X20 T20

250000760

$2.11

210

Hex. Screw M6 X 45

207064544

$2.11

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

230

Hex. Screw M8 X 20

207182044

$0.74

250

Pin

250400069

$3.89

260

Hairpin Cotter

269800431

$1.29

280

Grommet

517303756

$4.09

290

Rubber Bumper

293830005

$8.09

300

LH Seat Rail

708003314

$52.99

310

RH Seat Rail

708003315

$35.99

320

Seat Stopper

708003672

$2.59

330

Pop Rivet 3/16 X ,425

293150293

$0.35

500a

Headrest

708002853

$58.99

540

Driver Buckle

708002331

$70.99

550

Middle Buckle

708003163

$67.99

560

Passenger Buckle

708002329

$67.99

570

LH Safety Belt

708003082

$243.49

575

RH Safety Belt

708003200

$227.99

580

Central Safety Belt

708003688

$243.49

605

Hex. Screw M12 X 80

207028046

$3.91

610

Elastic Flange Nut M12

233221416

$2.85

620

Hex. Cap Screw 7/16'' X 1''

250001316

$1.90

625

Flat Washer M12

250200102

$2.11

630

Lock Nut Nylon 7/16

250100183

$2.00

700

Passenger Detection Switch

710008103

$76.99

710

Torx Screw Truss Head K50X20 T20

250000760

$2.11

710a

Torx Screw Truss Head K50X20 T20

250000760

$2.11

710b

Torx Screw M6 X 20

250000722

$1.68

710c

Flat Washer M6.6 X 22

250200162

$2.32

710d

Elastic Flange Nut M12

233221416

$2.85

710f

Lock Nut Nylon 7/16

250100183

$2.00

710g

Safety Belt screw

708002504

$5.29

710h

Safety Belt Screw

708000890

$3.79

710j

Position Washer

708000891

$1.29

710k

Latch

269501487

$16.99
