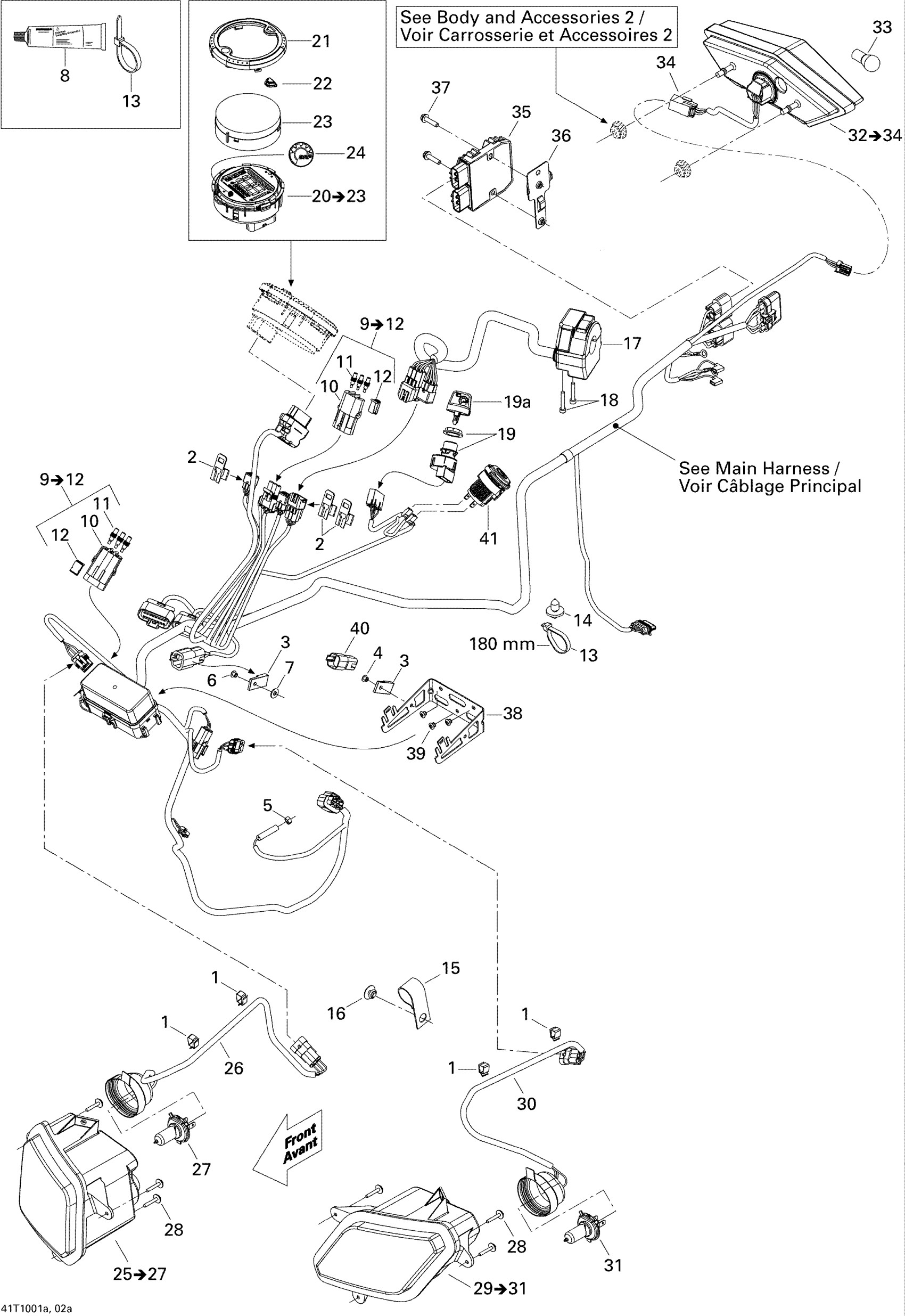

Can-Am Outlander Max 400 EFI, 2010 10- Electrical Accessories Diagram

Clip

414227300

$1.67

Housing Support

515175283

$9.19

Clip

270000141

$11.49

Pop Rivet 3/16"

390402400

$0.35

Oetiker Clamp

293650100

$3.38

Pop Rivet 3/16"

390402300

$0.75

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

Wire Seal

278000216

$3.19

Clip

710000992

$4.29

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

Mount Dart

293730040

$1.04

CLAMP - Call your local BRP dealership

705600311

Unavailable

Pop Rivet 3/16"

390406500

$0.88

Multi-Fonction Handle

710000791

$116.49

Socket Head Screw M5 X 35

205053588

$1.90

Ignition Switch | Includes 16 to 17

710002324

$79.49

Speedometer Ass'y | Includes 18 to 21

710003100

$539.99

Trim Ring

710001416

$23.99

Button

710001473

$13.71

Lens

415129320

$24.49

BRP Logo13 mm

704904615

$13.49

RH Headlamp Ass'y | Includes 20 to 22

710001496

$89.99

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

Bulb, 12V 35/35W

710000871

$34.99

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

LH Headlamp Ass'y | Includes 24 to 26

710001497

$89.99

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

Bulb, 12V 35/35W

710000871

$34.99

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$74.99

Bulb

520000758

$9.10

Male Housing, 3 Circuits

515175494

$16.18

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

Hexagonal Head Screw

210262050

$2.11

FUSE SUPPORT - Call your local BRP dealership

710002176

Unavailable

Pop Rivet 3/16"

390402400

$0.35

Diagnostic Connector

278002704

$19.49

DC Outlet

710001248

$37.99
