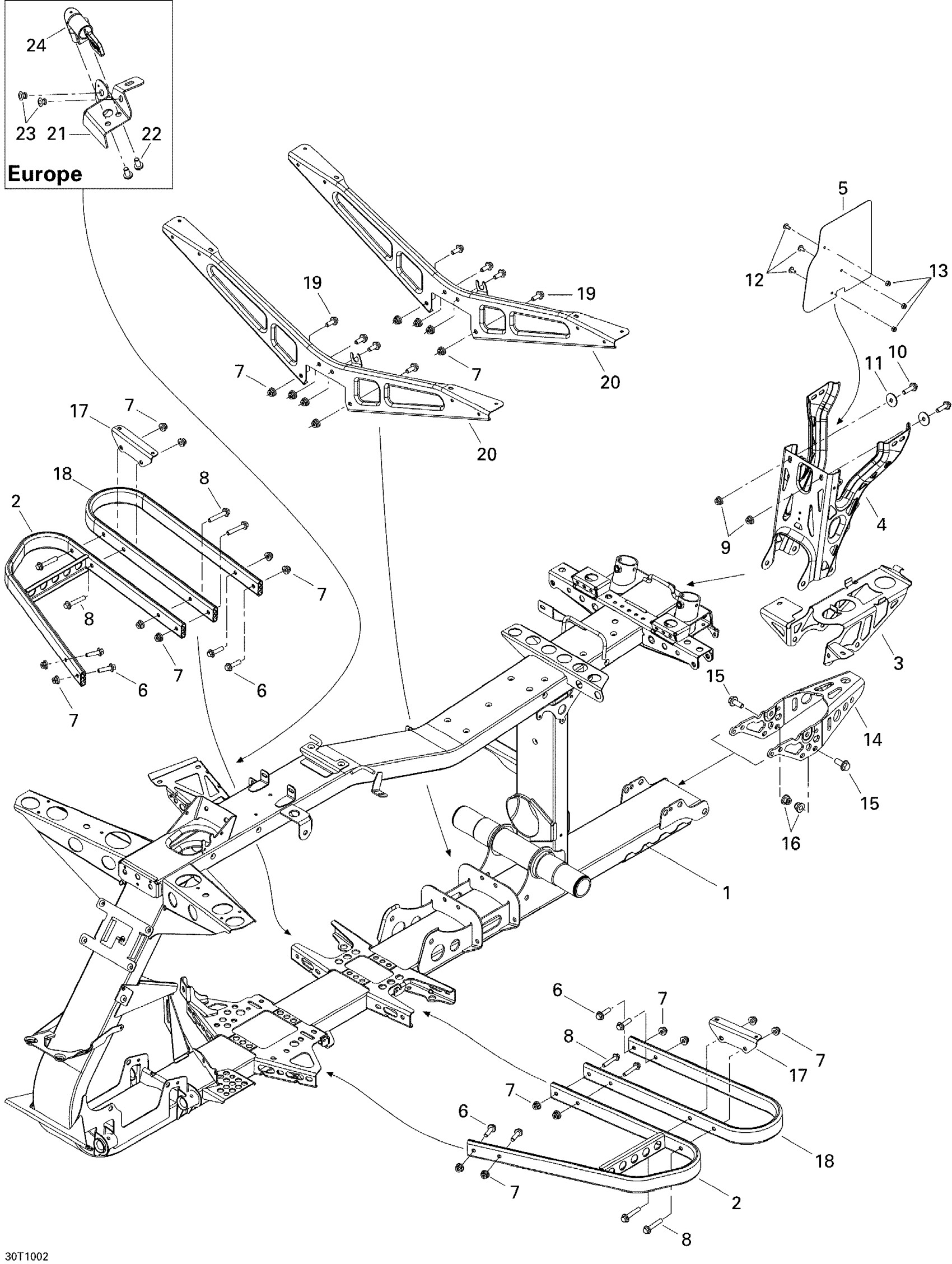

Can-Am Outlander Max 400 EFI, 2010 09- Frame Diagram

#

Description
Price

1

FRAME, BLACK - Call your local BRP dealership

705202420

Unavailable

2

OOTBOARD ASS'Y - Call your local BRP dealership

705202081

Unavailable

3

Battery Support Base

705201942

$32.99

4

Rear Support, Black

705203842

$42.99

5

Heat Shield

705202394

$17.49

6

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Hex. Flange Screw M8 X 45

207684544

$3.80

9

Hex. Elastic Flange Nut M8

233281416

$1.48

10

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

11

FLAT WASHER - Call your local BRP dealership

250200073

Unavailable

12

Torx Screw M4 X 8

250000127

$1.15

13

Elastic Stop Nut M4

232541484

$0.74

14

TRAILER HOOK KIT - Call your local BRP dealership

715000286

Unavailable

15

Hex. Flange Screw M10 X 25

207602544

$1.69

16

Hex. Flange Elastic Nut M10

233201436

$2.11

17

SUPPORT PLATE, BLACK - Call your local BRP dealership

705202402

Unavailable

18

REAR FOOTREST - Call your local BRP dealership

705201993

Unavailable

19

Hex. Flange Screw M8 X 20

207682044

$1.15

20

DIAGONAL BRACE - Call your local BRP dealership

705202393

Unavailable

21

LOCK SUPPORT - Call your local BRP dealership | Europe

705201707

Unavailable

22

Socket Head Screw M5 X 10

205951046

$2.43

23

Pop Rivet 3/16"

390402400

$0.35

24

Padlock with Key

707000666

$25.99
