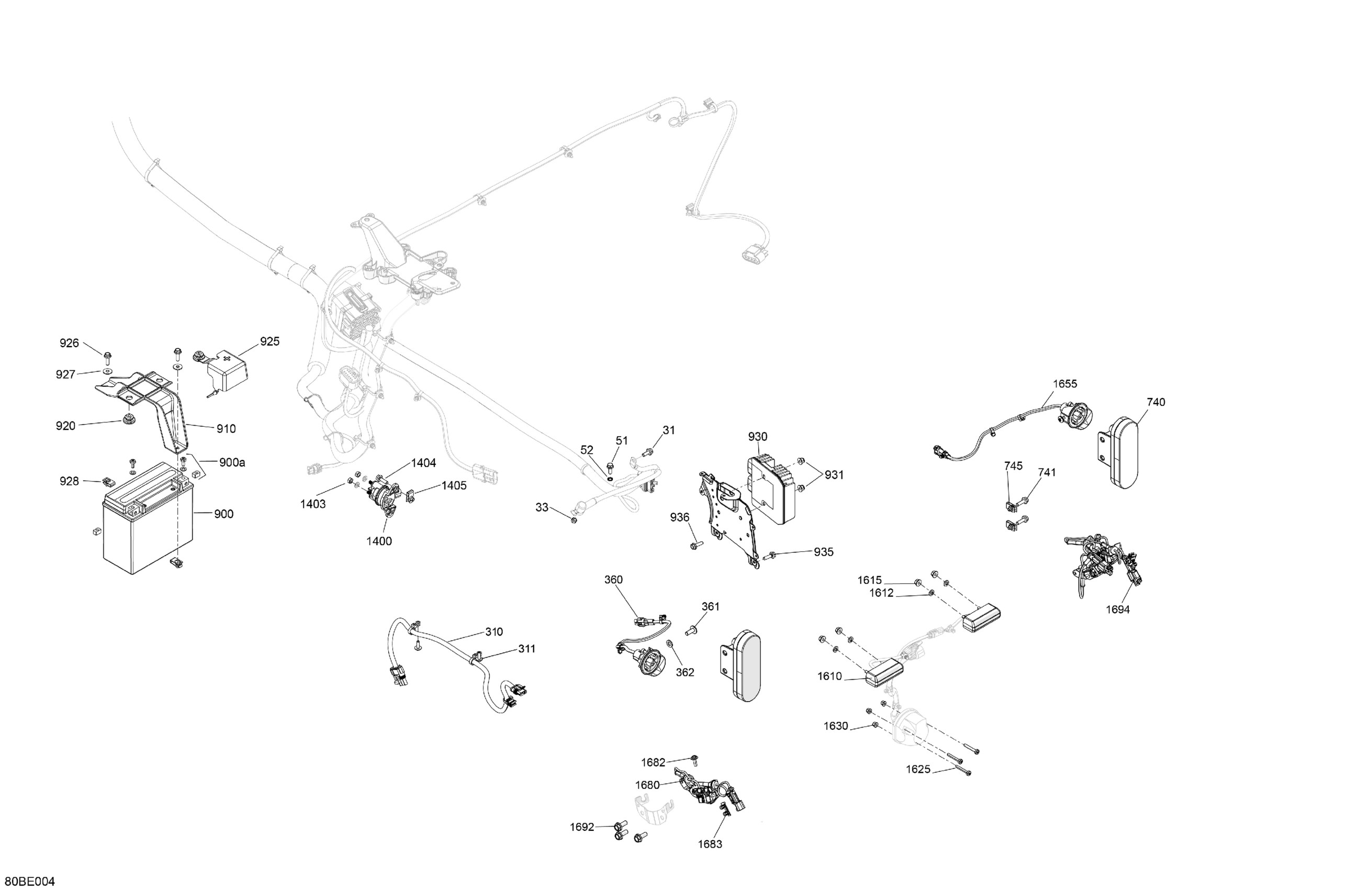

Can-Am CE - Maverick Sport - 1000R EFI - DPS SAS - 9GSE - Timeless Black Metallic - 60" Width, 2025 08- Electric - Rear Section Diagram

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Elastic Stop Nut M6, Brass

232561200

$4.23

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

External Serrated Lock Washer 6 mm

234461608

$1.15

Rear Harness

710006551

$43.99

Screw PT Type K-50 X 16

250000959

$2.11

Flasher | Europe

710002964

$35.99

Torx Truss Screw M6 X 16

250000721

$1.69

Flat Washer 6 mm

234061410

$1.36

Tail Light

710004257

$91.99

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Washer | Not Shown

710009082

$1.29

Screw | Not Shown

710009084

$1.59

Fixation Plate

710005673

$13.49

Stopper Rubber

705014429

$5.95

Battery Cable Cap

710005930

$10.49

Hex. Flange Screw M6 X 20

207662054

$1.01

Stainless Steel Flat Washer

234062670

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Voltage Regulator

710010540

$195.99

Hex. Flange Elastic Nut M6

233261494

$1.58

Rear Accessory Support | Not Shown

710008760

$34.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex Screw Washer Head M8 X 20

207582054

$3.17

Starter Relay

278003012

$42.49

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Light | Includes 220j to 220j1

710008467

$58.49

Lock Washer Helical M6

234161601

$1.15

Hex. Elastic Flange Nut M6

233161464

$1.01

Phillips Screw M5 X 35

208653560

$2.22

Flange Elastic Nut M5

233251434

$2.00

Trailer Wiring Harness

710010425

$119.99

Speed Sensor

710006981

$83.99

Screw PT Type K-50 X 16

250000959

$2.11

Clip (double dart)

278002910

$11.12

Hex Screw Washer Head M8 X 20

207582054

$3.17

ABS Sensor Support

710008186

$10.49
