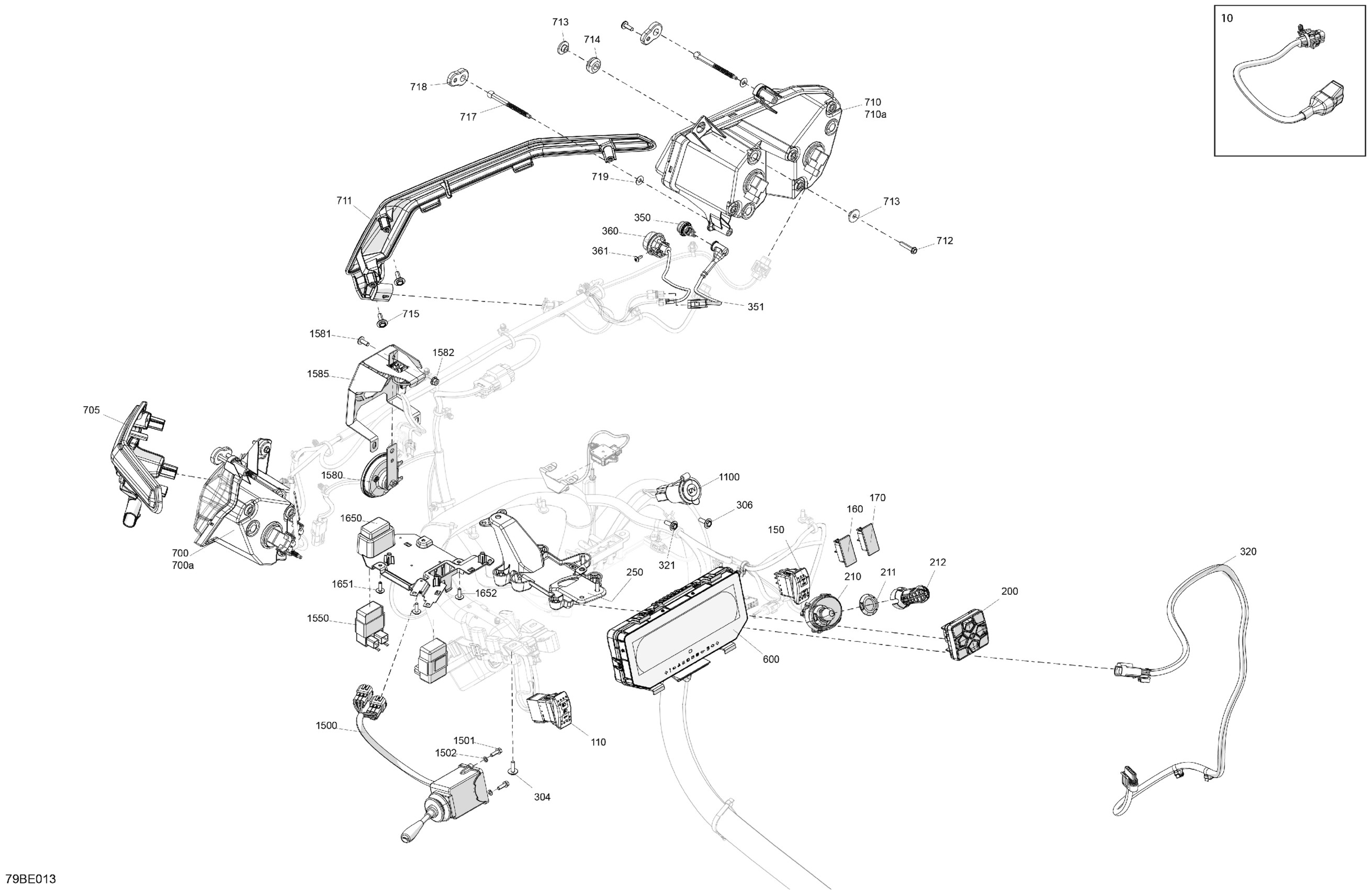

Can-Am CE - Maverick Trail - 700 - BASE - 7RSC - Catalyst Gray - 50" Width, 2025 08- Electric - Front Section Diagram

Wiring Harness

710007655

$26.99

Elastic Stop Nut M6, Brass

232561200

$4.23

Hazard Lights Switch

710006107

$19.49

Switch 2X4

710005489

$31.99

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Multifonction Switch

710006650

$87.99

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

Specialized Nut

278004274

$3.28

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

Start-Stop Button | Not Shown

710005213

$60.49

Housing Support

710005672

$10.49

Screw PT Type K-50 X 16

250000959

$2.11

Screw PT Type K-50 X 16

250000959

$2.11

Trottle Pedal Harness

710005929

$239.99

Screw PT Type K-50 X 16

250000959

$2.11

Day Light | Europe

710001726

$35.99

Position Light Harness

710005676

$15.49

Flasher | Europe

710002964

$35.99

Torx Truss Screw M6 X 16

250000721

$1.69

MID Multifunction Gauge

710008295

$379.99

LH Headlamp | Includes 700 to 700a

710008230

$199.99

Bulb 12V 55W

715900141

$41.49

LH Fascia Trim

705011485

$43.99

RH Headlamp | Includes 710 to 710a

710008231

$199.99

Bulb 12V 55W

715900141

$41.49

RH Fascia Trim

705011486

$43.99

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

Shoulder Bushing

710004749

$2.69

Overmolded Grommet

293720130

$4.69

Screw PT Type K-50 X 16

250000959

$2.11

Ajustment Screw

710005837

$6.35

Ball Socket

293900157

$9.59

O-Ring

293300192

$4.92

12V Power Outlet

710005374

$33.99

Turn Signal | Europe

710001721

$209.99

Hex. Forming Screw M5 X 16

210251650

$1.15

Lock Washer 5 mm | Europe

234151401

$0.55

Flasher Unit

710003239

$78.49

Horn

710004791

$38.99

Torx Truss Screw M6 X 16

250000721

$1.69

Hex. Flange Elastic Nut M6

233261494

$1.58

Horn Bracket

710006055

$65.99

Support Connector

710006056

$6.49

Screw PT Type K-50 X 16

250000959

$2.11

Screw PT Type K-50 X 16

250000959

$2.11
