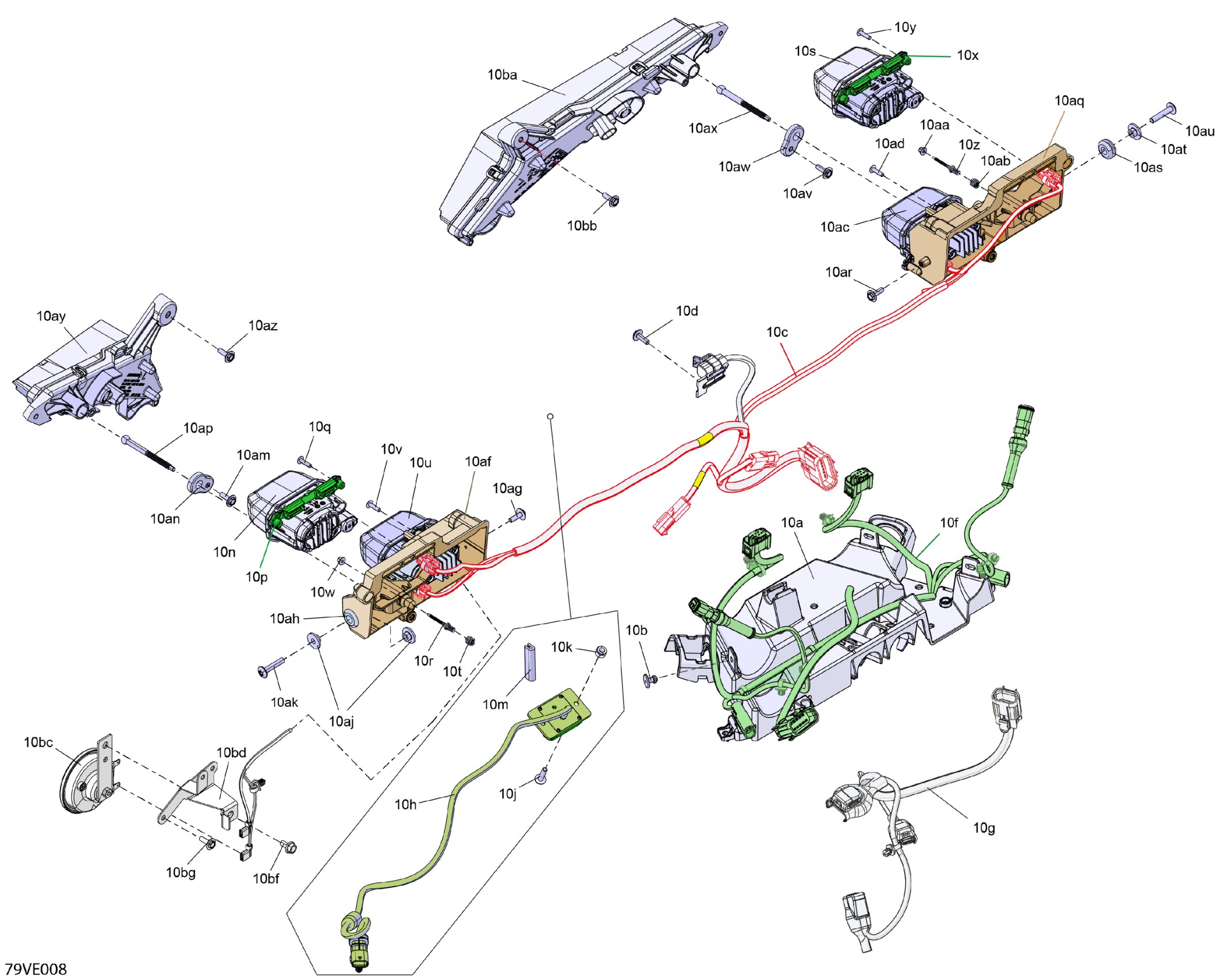

Can-Am CE - Maverick R MAX - 996NT2 - XRS SAS - 7DSP - Dusty Navy - 77" Width, 2025 08- Electric - Front Section Diagram

Description

Price

10a

Multi Porpuse Support

710007813

$19.99

10b

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

10c

Headlight Wiring Harness

710008962

$119.99

10d

Screw PT Type K-50 X 16

250000959

$2.11

10f

Junction Wiring Harness

710009627

$439.99

10g

Differential Wiring Harness

710007357

$48.99

10h

Camera

710007892

$319.99

10j

Torx Head Screw M4 X 16

250000797

$2.09

10k

Elastic Stop Nut M4

232541484

$0.74

10m

Edge Cut Trim 1000Mm

219704548

Unavailable

10n

Low Beam Light

710008089

$129.99

10p

Support Pivot | Not Shown

517309049

$2.79

10q

Torx-Truss Pt K40 X 16

250000759

$2.11

10r

Threaded Rod | Not Shown

517309133

$7.55

10s

Specialized Nut | Not Shown

517309134

$1.01

10t

Compression Spring | Not Shown

517309058

$7.41

10u

High Beam Light

710006911

$129.99

10v

Torx-Truss Pt K40 X 16

250000759

$2.11

10w

Low Beam Light

710008089

$129.99

10x

Support Pivot | Not Shown

517309049

$2.79

10y

Torx-Truss Pt K40 X 16

250000759

$2.11

10z

Threaded Rod | Not Shown

517309133

$7.55

10aa

Specialized Nut | Not Shown

517309134

$1.01

10ab

Compression Spring | Not Shown

517309058

$7.41

10ac

High Beam Light

710006911

$129.99

10ad

Torx-Truss Pt K40 X 16

250000759

$2.11

10af

LH Front Headlight Support

708500087

$47.99

10ag

Screw PT Type K-50 X 16

250000959

$2.11

10ah

Overmolded Grommet

293720130

$4.69

10aj

Shoulder Bushing

710004749

$2.69

10ak

Stainless, Torx Screw M6 X 30

250000842

$2.11

10am

Screw PT Type K-50 X 16

250000959

$2.11

10an

Ball Socket

293900157

$9.59

10ap

Ajustment Screw

710005837

$6.35

10aq

RH Front Headlight Support

708500088

$47.99

10ar

Screw PT Type K-50 X 16

250000959

$2.11

10as

Overmolded Grommet

293720130

$4.69

10at

Shoulder Bushing

710004749

$2.69

10au

Stainless, Torx Screw M6 X 30

250000842

$2.11

10av

Screw PT Type K-50 X 16

250000959

$2.11

10aw

Ball Socket

293900157

$9.59

10ax

Ajustment Screw

710005837

$6.35

10ay

LH Auxiliary LED Light

710007638

$459.99

10az

Screw PT Type K-50 X 16

250000959

$2.11

10ba

RH Auxiliary LED Light

710007644

$459.99

10bb

Screw PT Type K-50 X 16

250000959

$2.11

10bc

Horn

710004791

$38.99

10bd

Front Horn Support

710008130

$93.99

10bf

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

10bg

Screw PT Type K-50 X 16

250000959

$2.11
