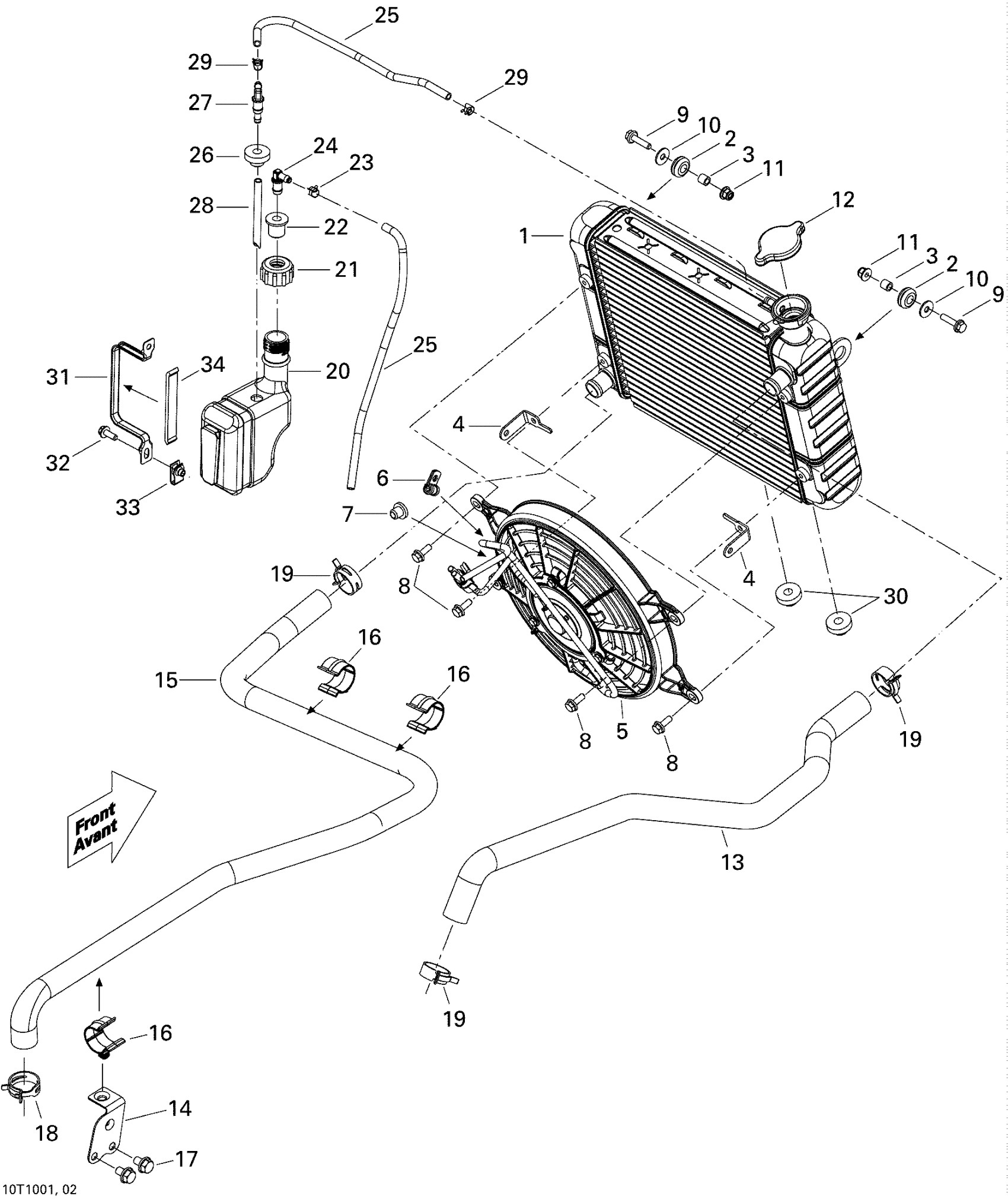

Can-Am Outlander Max 400 EFI, 2010 01- Cooling System Diagram

#

Description
Price

1

RADIATOR ASS'Y - Call your local BRP dealership

709200307

Unavailable

2

Grommet

709000582

$4.69

3

Bushing

293900105

$7.65

4

SUPPORT - Call your local BRP dealership

709200284

Unavailable

5

Fan Ass'y

709200371

$224.99

6

Clamp

293650256

$5.49

7

Grommet

293720029

$1.59

8

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

9

Hex. Flange Screw M6 X 25

207662544

$0.64

10

Flat Washer

250200082

$0.42

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Radiator Pressure Cap

709200207

$25.49

13

RADIATOR INLET HOSE - Call your local BRP dealership

709200077

Unavailable

14

Hose Support

709200206

$9.69

15

HOSE OUTLET RADIATOR - Call your local BRP dealership

709200198

Unavailable

16

Retainer

275500526

$4.55

17

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

18

Norma Spring Clamp

293650108

$4.12

19

Norma Spring Clamp

293650109

$4.12

20

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

21

Cap

709200586

$11.11

22

Grommet

293830136

$10.07

23

Spring Clamp

414554800

$0.88

24

Male Connector

414580700

$4.12

25

Polyurethane Hose 10000Mm Long

219704410

$56.99

26

Grommet

709200285

$9.69

27

Elbow Male Connector

414580600

$4.23

28

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

29

Spring Clamp

414554800

$0.88

30

Grommet

709200285

$9.69

31

TANK ANCHOR - Call your local BRP dealership

709200080

Unavailable

32

Hex. Flange Screw M6 X 16

210261650

$1.67

33

Panel Nut M6 X 1.0

250100198

$2.11

34

Gasket, Neoprene 2000Mm Long

219704476

$15.36
