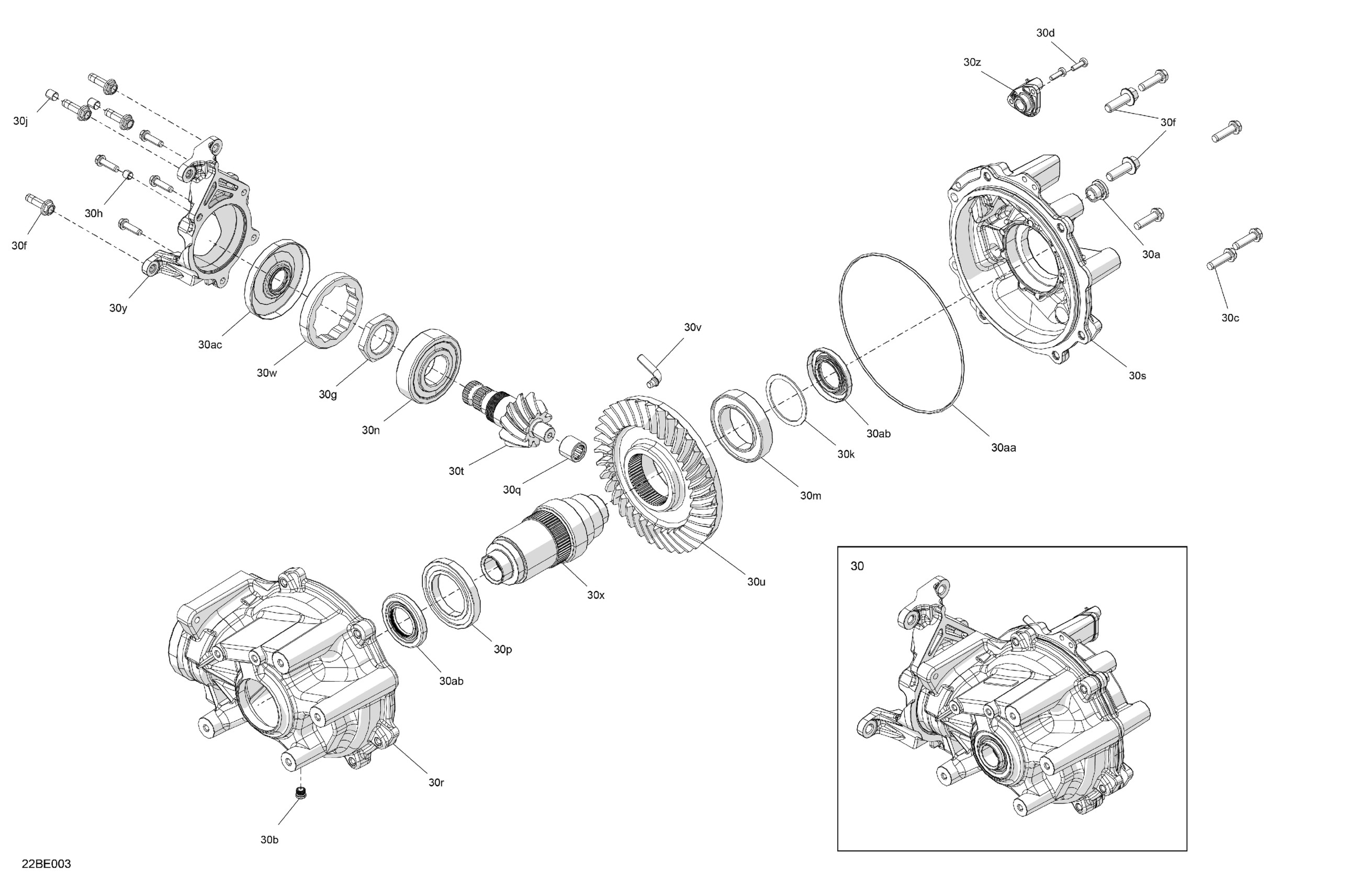

Can-Am International - Maverick Trail - 700 - DPS - 7HSD - Timeless Black Metallic - 50" Width, 2025 04- Drive - Final Drive Unit Diagram

Description

Price

Rear Differential Ass'y | Includes 30 to 30ac

705503729

$1,546.99

30a

Fill Level Plug

705501889

$20.49

30b

Fill Level Plug M10

715900563

$27.49

30c

Bolt

705501886

$7.69

30d

Screw

715900736

$20.99

30f

Custom Hex Screw Flange Head M10 x 30

715900799

Unavailable

30g

Nut

715900737

$32.99

30h

Dowel Pin

715900738

$29.99

30j

Dowel Pin

715900739

$29.99

30k

Shim

715900740

$37.99

30m

Ball Bearing

715900741

$40.49

30n

Ball Bearing

715900782

$67.99

30p

Ball Bearing

715900742

$28.49

30q

Needle Bearing

705501874

$73.99

30r

Case

715900816

$309.99

30s

Cover

715900841

$204.99

30t

Pinion, 10T Spiral

715900746

$132.49

30u

Ring Gear 36T Spiral

715900747

$299.99

30v

Vent Valve

705401935

$16.49

30w

Nut

705501882

$36.99

30x

Hub

715900748

$132.49

30y

Differential Support

705503213

$189.99

30z

Cover

420427563

$9.69

30aa

O-Ring

715900749

$12.11

30ab

Oil Seal

715900531

$26.49

30ac

Seal

715900751

$42.49
