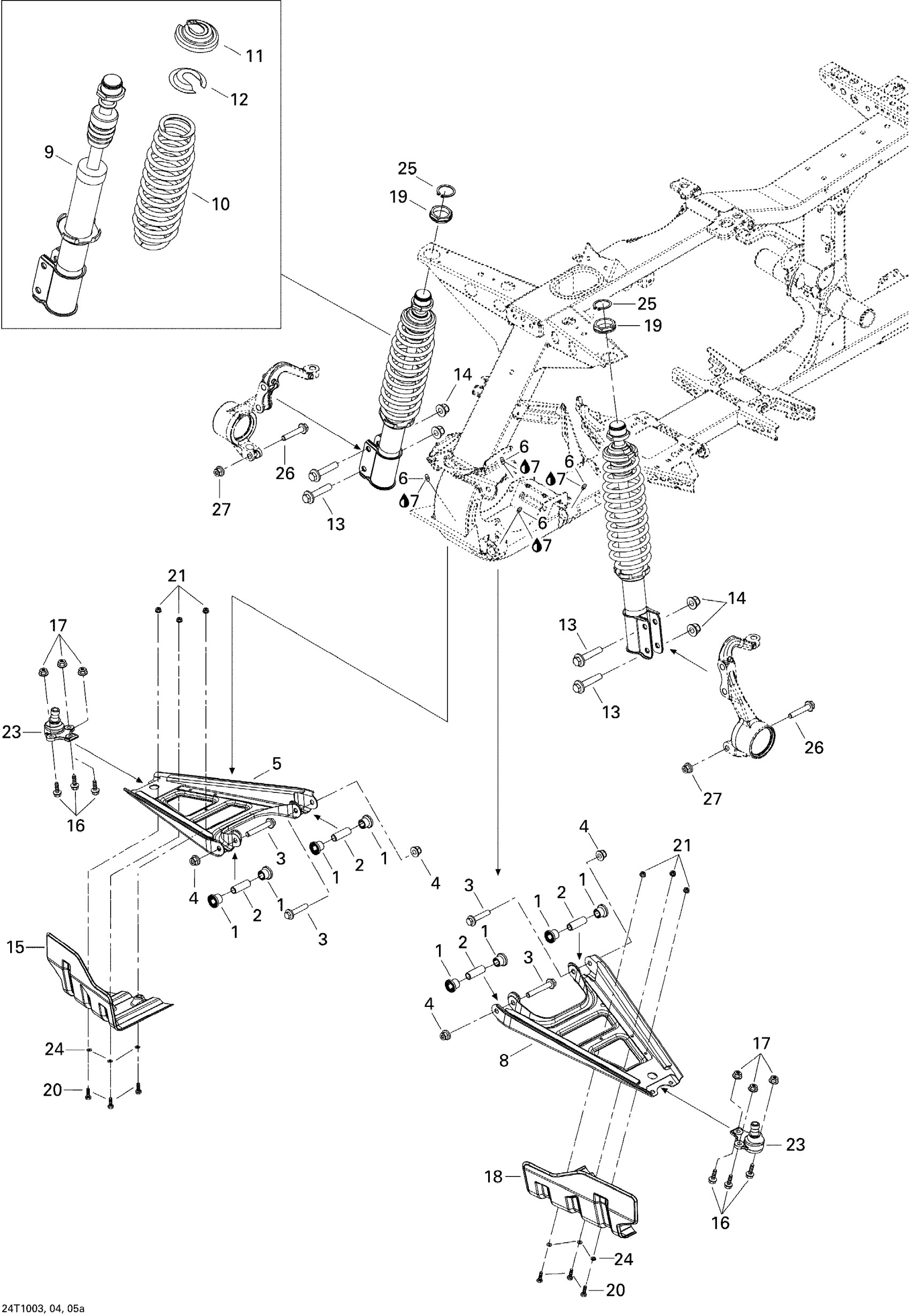

Can-Am Outlander 500 EFI, 2010 07- Front Suspension Diagram

#

Description
Price

1

Bushing

706200181

$3.14

2

Sleeve

706201587

$3.79

3

Hex. Flange Screw M10 X 70

207607046

$2.96

4

Hex. Flange Elastic Nut M10

233201436

$2.11

5

Suspension Arm

706205905

$158.99

6

Grease Fitting

408200700

$3.49

7

Synthetic Grease, 400 G

293550010

Unavailable

8

Suspension Arm

706205905

$158.99

9

Front Shock

706201108

$158.99

10

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | XT

706200824

Unavailable

10

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | STD

706200825

Unavailable

11

STOPPER SPRING - Call your local BRP dealership

706200882

Unavailable

12

Cap

706200793

$4.69

13

Hex. Flange Screw M12 X 60

207626046

$7.41

14

Hex. Flange Elastic Nut M12

233221414

$7.69

15

RH PROTECTOR - Call your local BRP dealership | 4X4

706200214

$11.49

16

Hex. Flange Screw M8 X 25

207682544

$1.35

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

LH PROTECTOR - Call your local BRP dealership | 4X4

706200213

$11.49

19

NUT - Call your local BRP dealership

706200443

Unavailable

20

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

21

Hex. Flange Elastic Nut M5

233251414

$1.04

23

Joint Attachment

706200444

$51.99

24

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

25

Circlip 32 mm

293370009

$1.39

26

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

27

Hex. Flange Elastic Nut M10

233201414

$1.58
