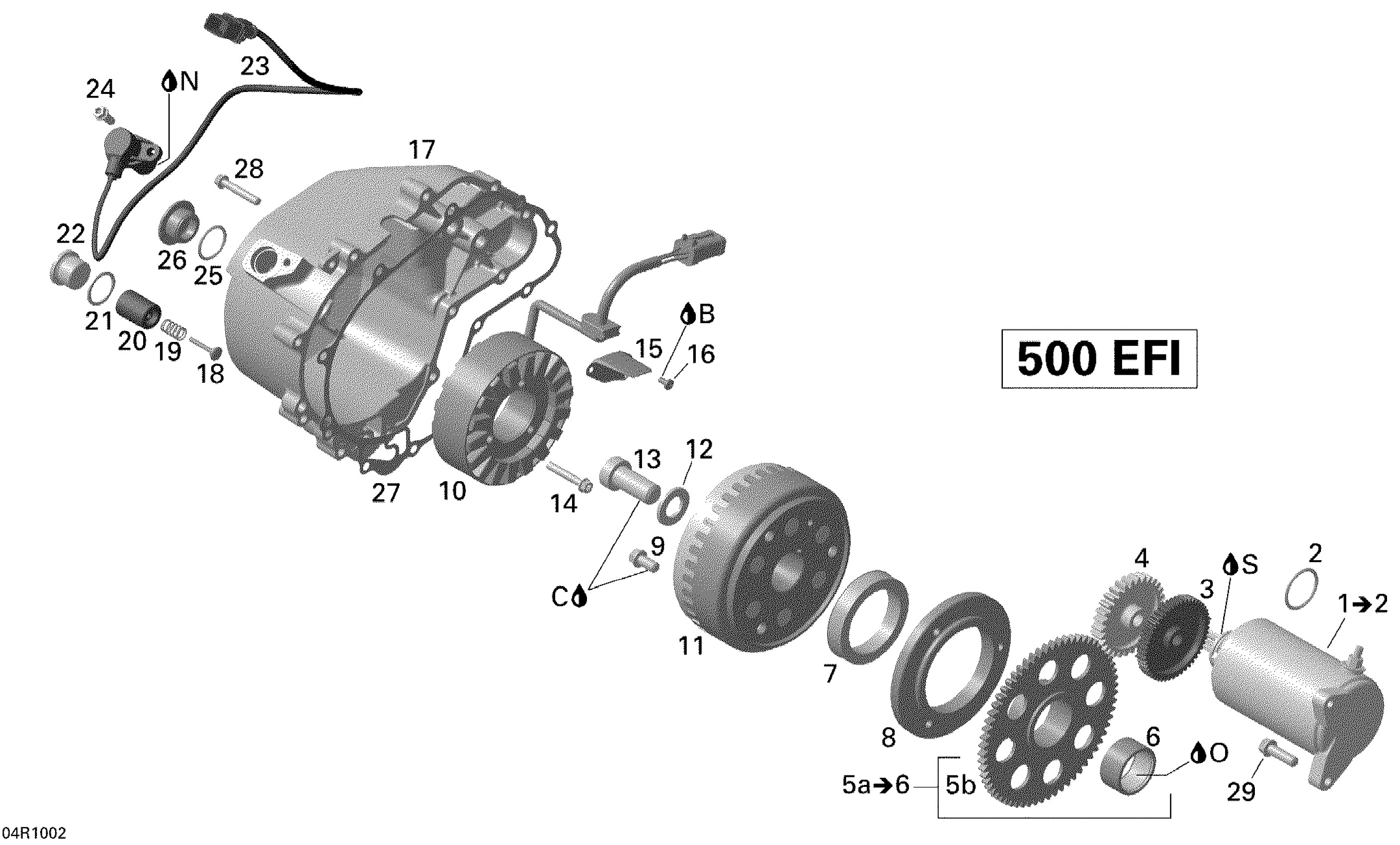

Can-Am Outlander 500 EFI, 2010 03- Magneto And Electric Starter V1_STD, XT, XT-P Diagram

#

Description
Price

1

Electric starter Ass'y

420684566

$265.99

2

O-Ring

420250140

$8.57

3

Starter Double Gear 11/49 T

420634741

$199.99

4

GEAR, 30 TEETH - Call your local BRP dealership

420634604

Unavailable

5a

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$194.99

5b

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Sprag Clutch

420659111

$259.99

8

Sparg Clutch Housing

420659263

$154.99

9

Torx Flange Screw M8 X 16

420440852

$4.12

10

Stator Plate, 420W

420685920

$319.49

10

Stator Plate, 650W | XT, XTP

420685632

$319.49

11

Flywheel, 420W | STD

420296906

$451.49

11

Flywheel, 650W | XT, XTP

420685647

$461.49

12

Shim

420627270

$4.12

13

Socket Head Screw M16 X 35

420241545

$14.28

14

Torx Flange Screw M6 X 35

420641258

$3.38

15

Interior Cable Support Ass'y

420251889

$14.30

16

Phillips Screw M4 X 8

420240196

$2.32

17

Ignition Cover

420212225

$190.49

18

Pressure Relief Valve

420656370

$19.19

19

Spring

420939481

$4.99

20

Housing

420256487

$7.41

21

Gasket Ring

420650465

$13.16

22

Plug Screw

420640271

$13.77

23

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

24

Torx Flange Screw M6 X 16

420641048

$2.96

25

O-Ring

420430782

$5.39

26

Plug Screw M24X 1.5

420241633

$7.41

27

Gasket

420651203

$35.99

28

Torx Flange Screw M6 X 35

420641258

$3.38

29

Torx Flange Screw M8 X 25

420440372

$4.12

B

Loctite 243, 10 ml

293800060

$21.49

C

Sealant Loctite 648

219703000

$45.99

N

Grease, Super Lube

293550030

$28.99

O

Not Available As Spare Part - Friction Washer

Unavailable

S

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
