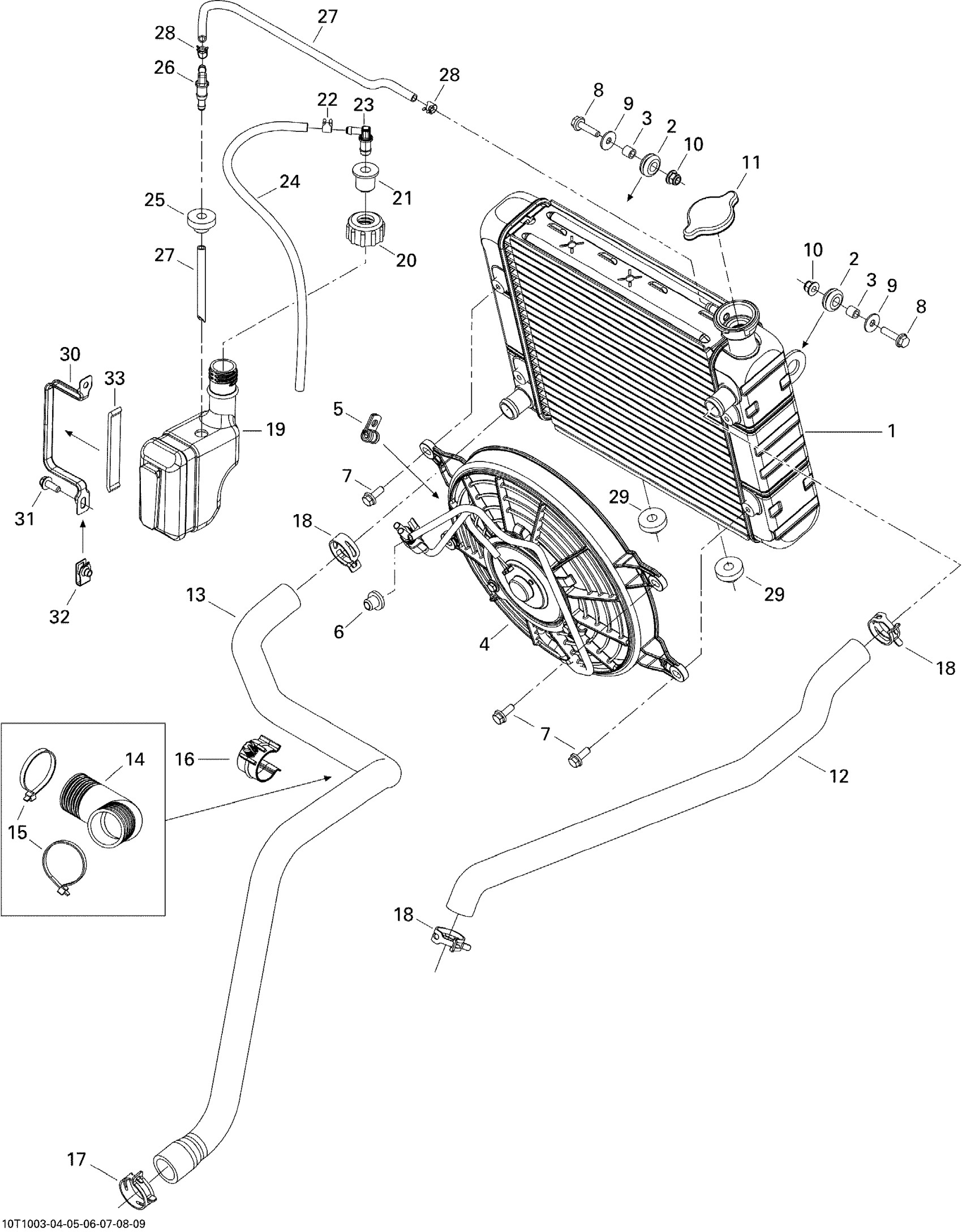

Can-Am Outlander 500 EFI, 2010 01- Cooling System Diagram

#

Description
Price

1

RADIATOR - Call your local BRP dealership

709200410

Unavailable

2

Grommet

709000582

$4.69

3

Bushing

293900105

$7.65

4

Fan Ass'y

709200371

$224.99

5

Clamp

293650256

$5.49

6

Grommet

293720029

$1.59

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

8

Hex. Flange Screw M6 X 25

207662544

$0.64

9

Flat Washer

250200082

$0.42

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Radiator Pressure Cap

709200207

$25.49

12

RADIATOR INLET HOSE - Call your local BRP dealership

709200130

Unavailable

13

HOSE OUTLET - Call your local BRP dealership

709200246

Unavailable

14

Tubing 35 MM 1000MM Long

219704428

$10.99

15

Tie-Rap 180 mm

414115200

$0.11

16

Retainer

275500590

$9.69

17

Norma Spring Clamp

293650108

$4.12

18

Norma Spring Clamp

293650109

$4.12

19

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

20

Cap

709200586

$11.11

21

Grommet

293830136

$10.07

22

Spring Clamp

414554800

$0.88

23

Male Connector

414580700

$4.12

24

Polyurethane Hose 10000Mm Long

219704410

$56.99

25

Grommet

709200285

$9.69

26

Elbow Male Connector

414580600

$4.23

27

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

28

Spring Clamp

414554800

$0.88

29

Grommet

709200285

$9.69

30

TANK ANCHOR - Call your local BRP dealership

709200080

Unavailable

31

Hex. Flange Screw M6 X 16

210261650

$1.67

32

Panel Nut M6 X 1.0

250100198

$2.11

33

Gasket, Neoprene 2000Mm Long

219704476

$15.36
