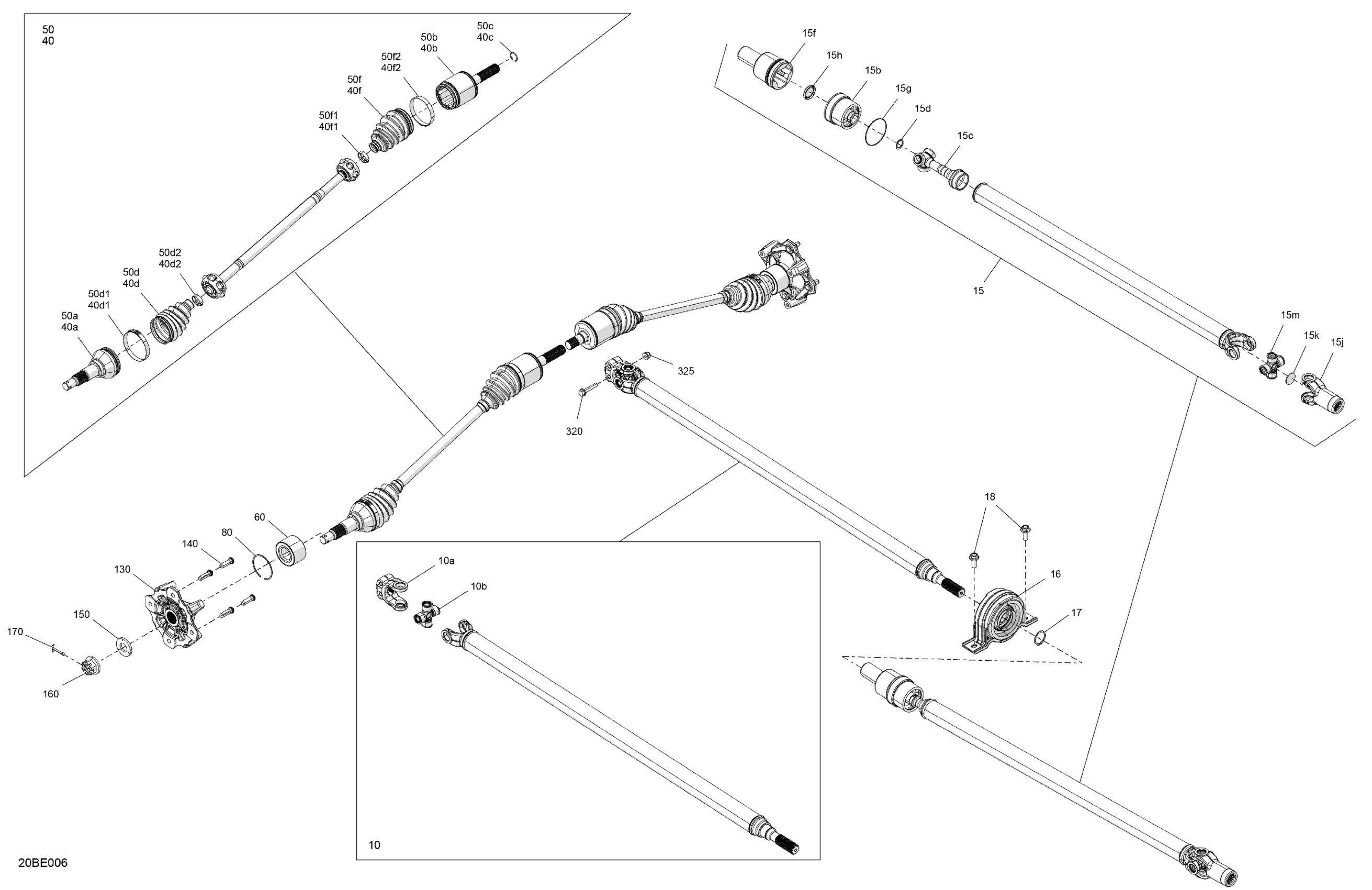

Can-Am International - Commander Max - 1000R EFI - XT - 6KSG - Timeless Black Metallic - 64" Width, 2025 04- Drive - Front - Common Parts Diagram

Description

Price

Drive Axle Ass'y | Includes 10 to 10c

705403684

$254.49

10a

Connecting Yoke 18Th

715900938

$24.99

10b

Universal Joint Ass'y

715900911

$46.49

10c

Snap Ring | Not Shown

715900945

$2.74

Drive Axle Ass'y | Includes 15 to 15m

705403685

$254.49

15a

Large Oetiker Clamp | Not Shown

715900950

$7.09

15b

Dust cover | Not shown

219800426

$26.49

15c

Three Pin Joint | Not shown

219800433

$31.99

15d

Circlip | Not shown

219800427

$1.26

15f

Joint

715900949

$59.49

15g

O-Ring | Not shown

219800429

$6.24

15h

Cover

715900948

$13.75

15j

Slip Yoke

715900947

$24.99

15k

Cover

715900946

$4.44

15m

Universal Joint Ass'y

715900911

$46.49

Ball Bearing Ass'y

705403522

$47.49

Snap Ring

293370098

$3.17

Hex. Flange Screw M10 X 20

207502046

$2.11

RH Front Half Shaft | Includes 40 to 40f2

705402717

$243.99

40a

JOINT_CV EXT - Call your local BRP dealership

715900440

$244.99

40b

RH Plunging Joint

715900441

$275.49

40c

Circlip Joint | Not shown

705401349

$6.50

40d

Boot Kit, Wheel Side

705401345

$42.49

40d1

Oetiker Clamp

715900282

$5.29

40d2

Oetiker Clamp, Small

715900283

$5.29

40f

Boot Kit, Différential Side

705401355

$42.49

40f1

Oetiker Clamp, Small

715900261

$5.29

40f2

Oetiker Clamp, Large

715900262

$10.33

LH Front Half Shaft | Includes 50 to 50f2

705402718

$243.99

50a

JOINT_CV EXT - Call your local BRP dealership

715900440

$244.99

50b

LH Plunging Joint

715900442

$275.49

50c

Circlip Joint | Not shown

705401349

$6.50

50d

Boot Kit, Wheel Side

705401345

$42.49

50d1

Oetiker Clamp

715900282

$5.29

50d2

Oetiker Clamp, Small

715900283

$5.29

50f

Boot Kit, Différential Side

705401355

$42.49

50f1

Oetiker Clamp, Small

715900261

$5.29

50f2

Oetiker Clamp, Large

715900262

$10.33

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

130

Wheel Hub

705502338

$116.49

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

150

Conical Spring Washer M20

250200170

$14.74

160

Castle Nut M20

250100193

$8.05

170

Cotter Pin

250400084

$2.29

320

Hex. Flange Screw M8 X 42

250001050

$1.16

325

Hex. Elastic Flange Nut M8

233281416

$1.48
