09- Body, Rear View 3

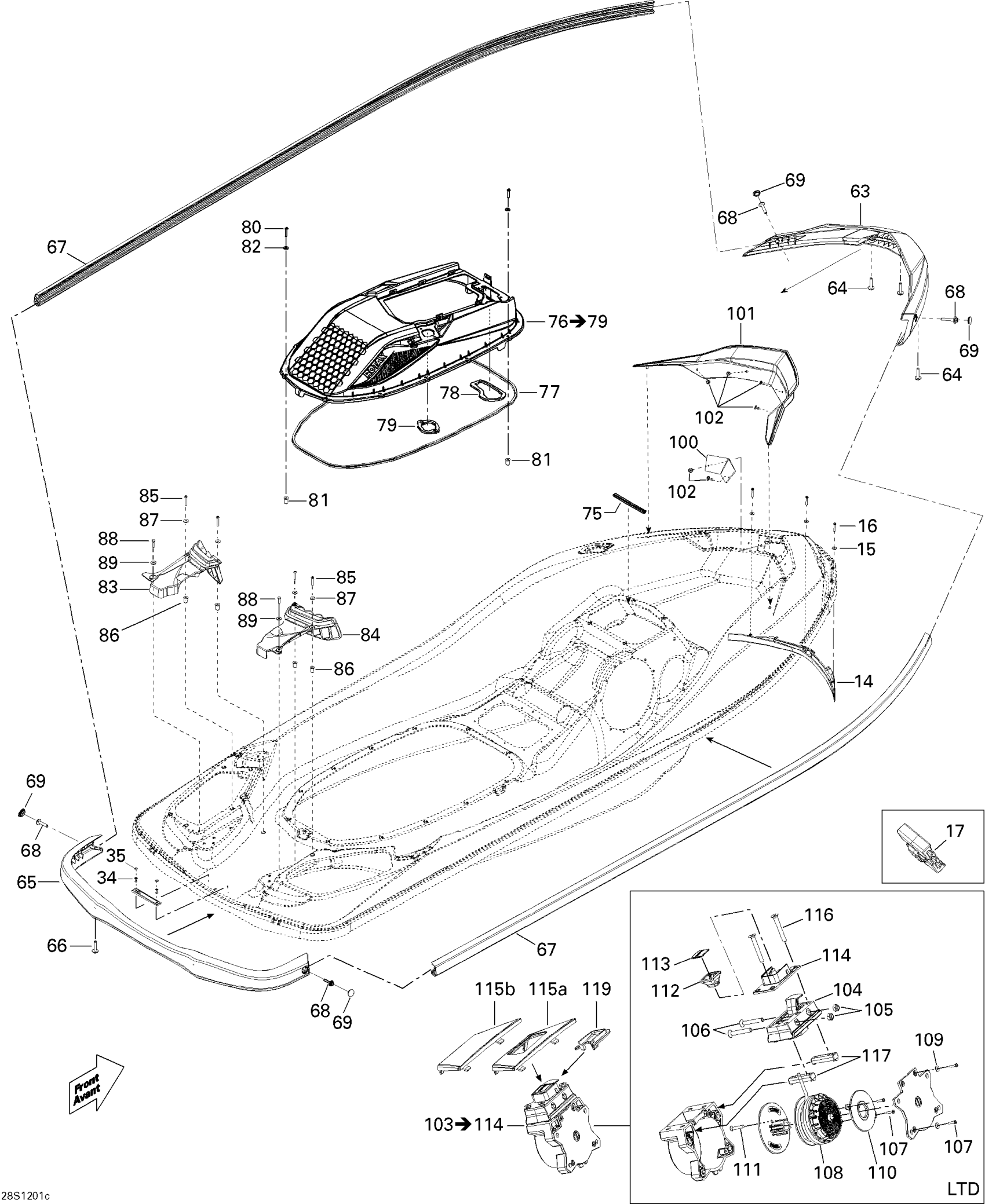

Sea-doo GTX LTD iS 260, 2012 09- Body, Rear View 3 Diagram
#
14
DECK NOSE - Call your local BRP dealership
291002818
$15.99
15
Flat Washer 4 mm, Stainless
234042600
$1.15
16
Hex. Flange Screw K40 X 25
241142560
$2.64
17
Tie-Rap Mount
293750025
$1.25
34
Rivet 1/8"
293150016
$0.40
35
Black, Snap Cap
293000014
$1.09
63
Front Bumper
291004275
$78.49
64
Hexagonal Cap Screw M6 X35
250000399
$4.44
65
Rear Bumper
291004274
$121.49
66
Hexagonal Cap Screw M6 X35
250000399
$4.44
67
Lateral Bumper
291003872
$148.49
68
Hexagonal Cap Screw M6 X35
250000399
$4.44
69
Bumber Cap | Except Cab Package
291002744
$14.49
75
Was 271000110 Protection Trim
219704353
$15.99
76
DECK EXTENSION ASS'Y - Call your local BRP dealership
291002763
Unavailable
77
Lip Seal
293250185
$27.99
78
LIP SEAL - Call your local BRP dealership
293250205
Unavailable
79
LIP SEAL - Call your local BRP dealership
293250209
Unavailable
80
Socket Head Screw M6 X 35
205463560
$2.00
81
Expansion Nut M6 X 1
250100150
$2.11
82
Flat Washer M6, Stainless
234062600
$0.77
83
LH Rear Grille
291002658
$20.99
84
RH REAR GRILL - Call your local BRP dealership
291002698
$19.49
85
Socket Head Screw M6 X 35
205463560
$2.00
86
Expansion Nut M6 X 1
250100150
$2.11
87
Flat Washer M6, Stainless
234062600
$0.77
88
Hex. Screw M6 X 25
207162560
$1.47
89
Flat Washer M6, Stainless
234062600
$0.77
100
GASKET - Call your local BRP dealership
293250231
Unavailable
101
Deflector
291004280
$84.99
102
Pop Rivet 3/16"
293150123
$4.29
103
Retractable Rope Ass'y | Includes 2300 to 2300e
291004019
$158.99
104
JAM CLEAT SYSTEM ASS'Y - Call your local BRP dealership | Includes 2300a to 2300a2
291003023
Unavailable
105
Elastic Stop Nut M6, Brass
232561200
$4.23
106
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
107
Oval Philipp Screw KA30 x 12
241731260
$1.05
108
ROPE 3/16 3000MM LONG - Call your local BRP dealership
219704363
Unavailable
109
Flat Washer M3, Stainless
234032600
$0.55
110
INSIDE COVER - Call your local BRP dealership
291002762
Unavailable
111
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
112
BUTTON - Call your local BRP dealership
291002726
Unavailable
113
Button Cap
291002754
$6.25
114
ROPE GUIDE - Call your local BRP dealership
291002729
Unavailable
115a
FRONT REWINDER COVER - Call your local BRP dealership
291002724
Unavailable
115b
Not Available As Spare Parts
XXX
Unavailable
116
SOCKET SCREW HEAD M6 X 45 - Call your local BRP dealership
205364560
Unavailable
117
DOUBLE CAGE NUT ASS'Y - Call your local BRP dealership
291002755
Unavailable
119
UNDER CAM - Call your local BRP dealership
291002727
Unavailable
