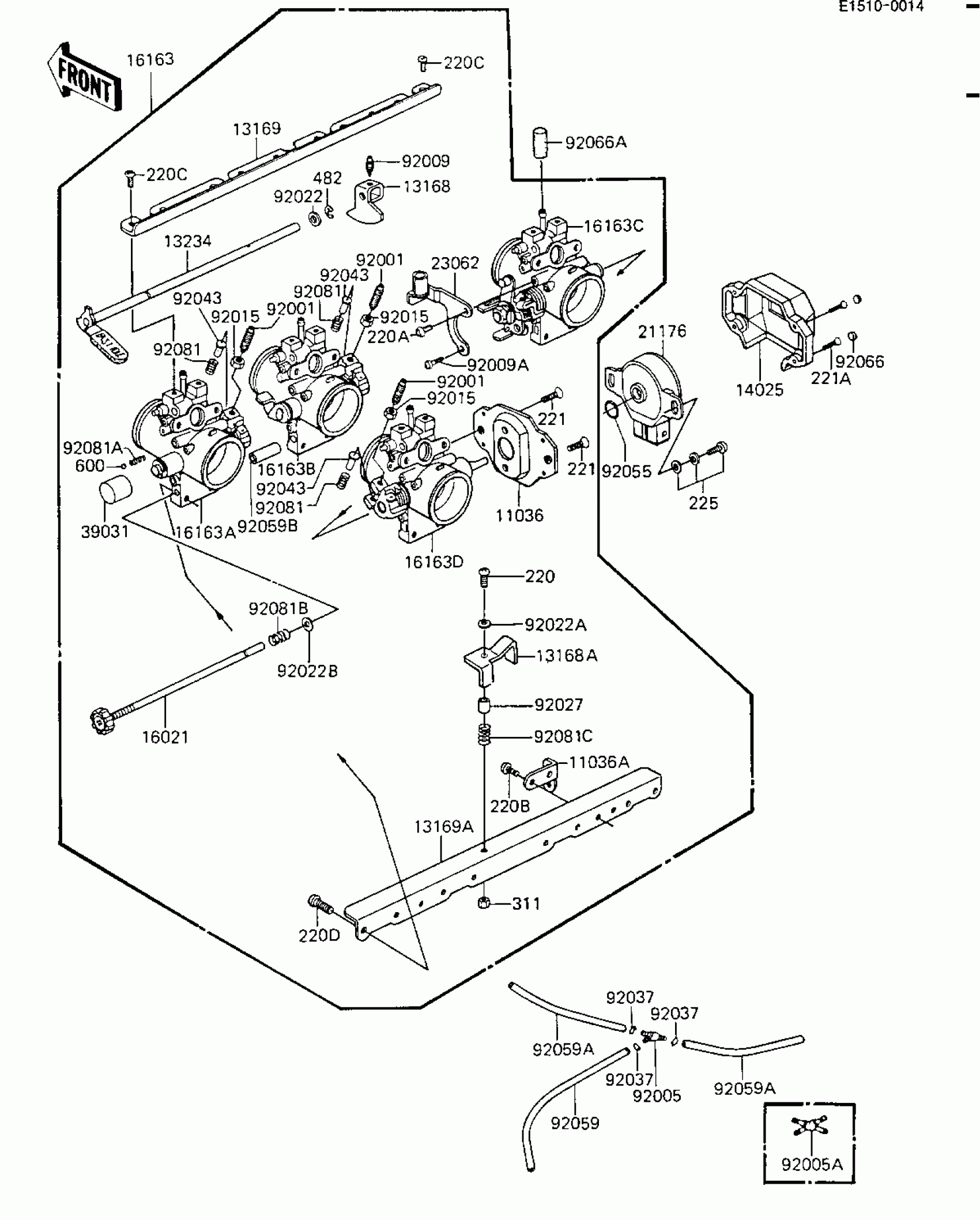

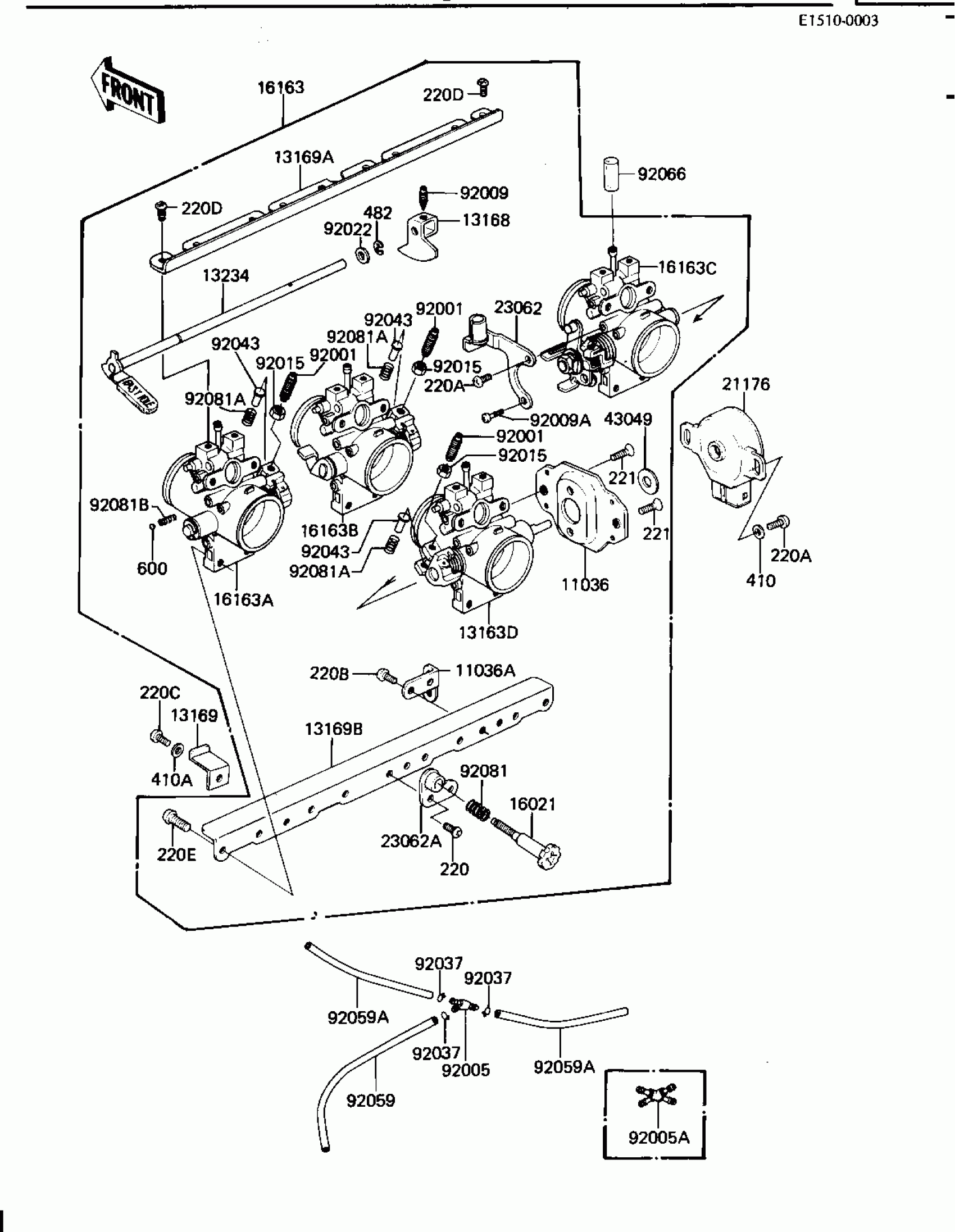

Kawasaki GPz THROTTLE ASSY Diagram

#

Description
Price

11036

BRACKET-A,THROTTLE SE

11036-1481

Unavailable

11036A

BRACKET-A,STAY LWR

11036-1491

Unavailable

13168

LEVER,FAST IDLE

13168-1118

Unavailable

13169

PLATE,PROTECTOR

13169-1441

Unavailable

13169A

PLATE,THROTTLE STAY,U

13169-1521

Unavailable

13169B

PLATE,THROTTLE STAY,L

13169-1522

Unavailable

13234

SHAFT-COMP,FAST IDLE

13234-1008

Unavailable

16021

SCREW,THROTTLE STOP

16021-1010

$32.19

16163

THROTTLE-ASSY

16163-1013

$484.88

16163A

THROTTLE-ASSY,LH,OUTS

16163-1016

$99.52

16163B

THROTTLE-ASSY,LH,INSI

16163-1017

$99.52

16163C

THROTTLE-ASSY,RH,INSI

16163-1018

$99.52

16163D

THROTTLE-ASSY,RH,OUTS

16163-1019

$104.32

21176

SENSOR,THROTTLE

21176-1004

Unavailable

23062

BRACKET-COMP,TH CABLE

23062-1026

$37.02

23062A

BRACKET,IDLING ADJUST

23062-1027

$31.56

43049

PACKING,THROTTLE SENS

43049-1021

$3.27

92001

BOLT,ADJUSTING

92001-1447

$12.04

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING,TUBE,X-TYPE

92005-1051

$11.26

92009

SCREW,FAST IDLE LEVER

92009-1147

$9.12

92009A

SCREW,THROTTLE CABLE

92009-1148

$3.02

92015

NUT,THROTTLE VALVE ADJUSTING

92015-1119

$5.59

92022

WASHER,PLAIN,NYLON

16039-019

Unavailable

92037

CLAMP,TUBE

92037-072

$7.22

92043

PIN,THROTTLE VALVE ADJUST

92043-1079

$6.40

92059

TUBE,4X9X290

92059-1043

$10.19

92059A

TUBE,VACUUM,LONG

92059-1162

$19.09

92066

PLUG,12X25

92068-006

$4.26

92081

SPRING,THROTTLE STOP

16022-017

Unavailable

92081A

SPRING,THROTTLE VALVE ADJUST

92081-1259

$5.31

92081B

SPRING,SHAFT STOP

92081-1260

$5.80

220

SCREW PAN HEAD 5X6

220B0506A

$1.96

220A

SCREW PAN HEAD 5X10

220B0510

$0.69

220B

SCREW-PAN-CROSS

220C0506

$2.22

220C

SCREW-PAN-CROSS

220C0508

$0.55

220D

SCREW-PAN-CROS,5X10

220C0510

$3.57

220E

UNAVAILABLE IN PRICE BOOK

220C061

Unavailable

221

SCREW CNTSNK HD 5X10

221B0510A

$3.67

410

WASHER PLAIN 5MM

410B0500

$0.46

410A

WASHER PLAIN

410F0500

$1.43

482

CIRCLIP-TYPE-E,4MM

482L4000

$0.67

600

BALL,STEEL,1/8"

600A0400

$1.40
