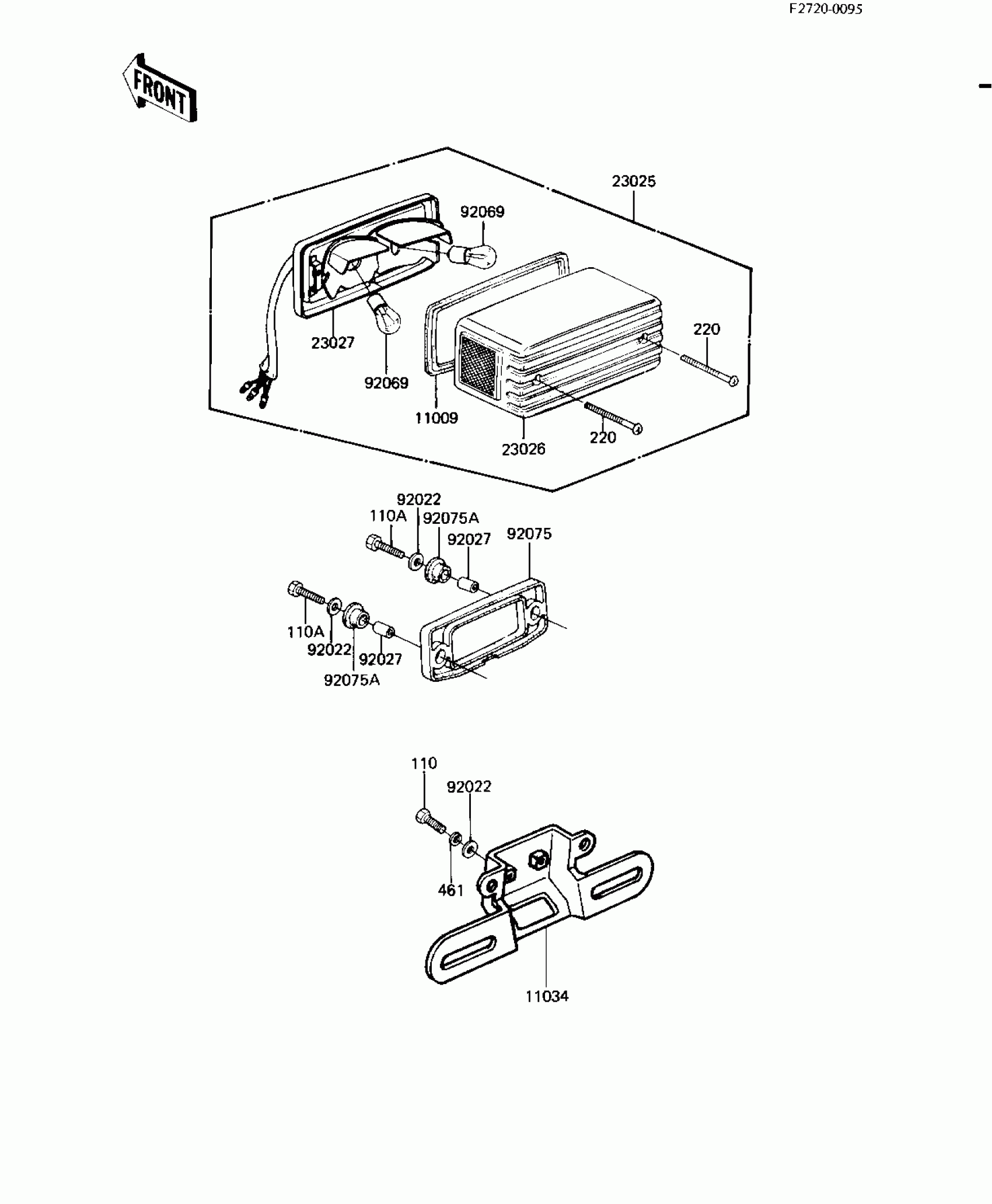

Kawasaki GPz TAILIGHT Diagram

Description

Price

11009

GASKET,TAIL LAMP

11009-1221

$13.85

11034

BRACKET

11034-1922

Unavailable

23025

LAMP-TAIL,BLACK

23025-1038

Unavailable

23026

LENS,TAIL LAMP

23026-1021

$138.60

23027

BODY-COMP-TAIL LAMP,B

23027-1025

$149.97

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92027

COLLAR,6.8X10X21

92027-1400

Unavailable

92069

BULB,12V 27/8W

92069-059

$8.12

92075

DAMPER

92075-1282

Unavailable

92075A

DAMPER,TAIL LAMP

92075-1367

Unavailable

110

BOLT-UPSET,6X20

112G0620

$2.12

110A

BOLT-UPSET

112G0630

$1.36

220

SCREW-PAN-CROS

220C0465

$3.84

461

WASHER SPRING 6MM

461F0600

$0.69
