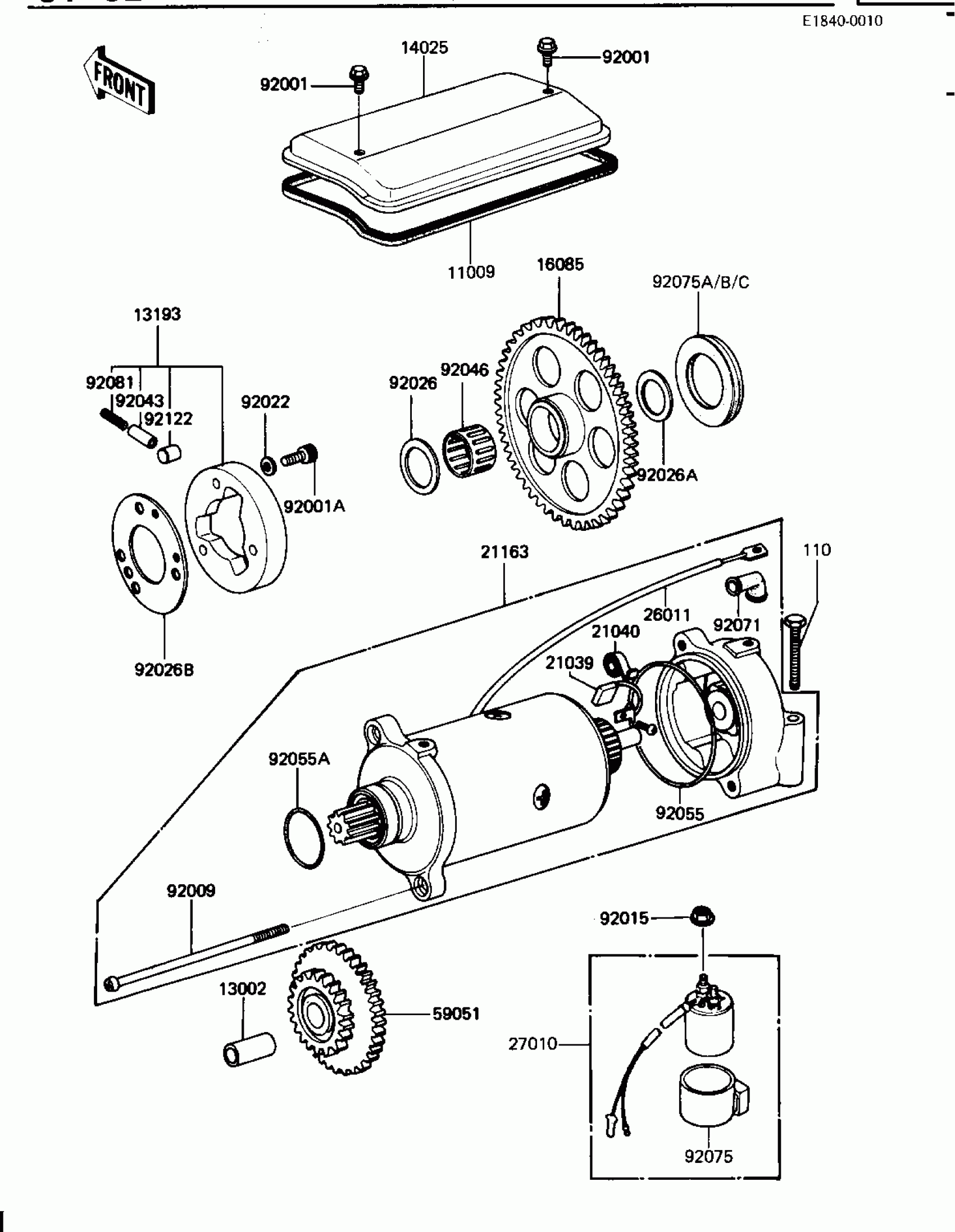

Kawasaki GPz STARTER MOTOR/STARTER CLUTCH (KZ1100-B1) Diagram

#

Description
Price

11009

GASKET,STARTER COVER

21166-001

$36.70

13002

PIN

13002-007

$18.23

13193

CLUTCH-ASSY-ONEWAY

13193-1006

$178.91

14025

COVER,STARTER,BLACK

14025-1378

Unavailable

16085

GEAR,STARTER CLUTCH

16085-1012

Unavailable

21039

BRUSH,CARBON

21039-003

$40.76

21040

SPRING-BRUSH

21040-003

Unavailable

21163

STARTER-ELECTRIC

21163-1019

$625.66

26011

WIRE,STARTER MOTOR

26010-055

$29.04

27010

SWITCH ASSY,MAGNETIC

21164-005

$159.50

59051

GEAR-SPUR,STARTER MOTOR

21167-002

Unavailable

92001

BOLT,6X10

92001-1151

$5.01

92001A

BOLT-SOCKET,8X16

120P0816

$4.15

92009

SCREW,PAN HEAD,5X110

21015-005

$9.81

92015

NUT,SGNL LAMP BRACKET

92015-1073

$4.95

92022

WASHER,8.5X13.5X2

92022-1108

$4.31

92026

SPACER,25X38X1.0

92026-1031

$10.35

92026A

SPACER,25X34X2.0

92026-1033

$7.58

92026B

PLATE,CLUTCH STARTER

92026-112

Unavailable

92043

PIN

92043-087

$12.76

92046

BEARING-NEEDLE,K253020S

92046-1022

$22.97

92055

RING-O,STARTER MOTOR

21027-003

Unavailable

92055A

RING-O,STARTER MOTOR,25MM

21027-004

$9.91

92071

GROMMET,STARTER TERMINAL

21017-017

$9.43

92075

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

92075A

DAMPER,T=6.3

92075-1129

Unavailable

92075B

DAMPER,T=7.3

92075-1130

Unavailable

92075C

DAMPER,T=8.3

92075-1131

Unavailable

92081

SPRING

92081-110

$4.76

92122

ROLLER,15X14.4

92122-001

$11.60

110

BOLT,EXCLUSIVE

92001-1456

$4.90
