Description

Price

11009

GASKET,MANIFOLD EXHAUST

11060-1068

$28.82

11009A

GASKET,EXHAUST PIPE

11009-1906

$11.06

14025

COVER,MUFFLER,LH,BLAC

14025-1647

Unavailable

14025A

COVER,MUFFLER,RH,BLAC

14025-1648

Unavailable

18001

MUFFLER,LH BLACK

18001-5103

$625.30

18001A

MUFFLER,R.H.BLACK

18001-5104

$488.50

18049

PIPE-EXHAUST,#2,BLACK

18049-1210

$231.73

18049A

PIPE-EXHAUST,#3,BLACK

18049-1224

$222.19

18069

HOLDER-EXHAUST PIPE

18069-1019

$37.06

92015

NUT,FLANGED,10MM

92015-1428

$5.00

92015A

NUT,LOCK,8MM,BLACK

92015-1302

Unavailable

92022

WASHER,10.5X22X4.5

92022-1022

$5.24

92022A

WASHER,CUP TYPE,BLACK

92022-1355

$6.21

92027

COLLAR,EXHAUST PIPE,B

92027-1457

$7.75

92037

CLAMP,MUFFLER,BLACK

92037-1270

$20.77

92037A

CLAMP,MUFFLER COVER

92037-1319

$12.72

92075

DAMPER

92075-015

$5.00

92092

UNAVAILABLE IN PRICE BOOK

92092-1031

Unavailable

113

BOLT,FLANGED,10X70

92001-1618

$10.37

131

BOLT-FLANGED,10X55,BLACK

131J1055

$6.21

223

SCREW-PAN-WS-CROS,6X20

223C0620

$4.30

461

WASHER SPRING 10MM

461F1000

$0.67

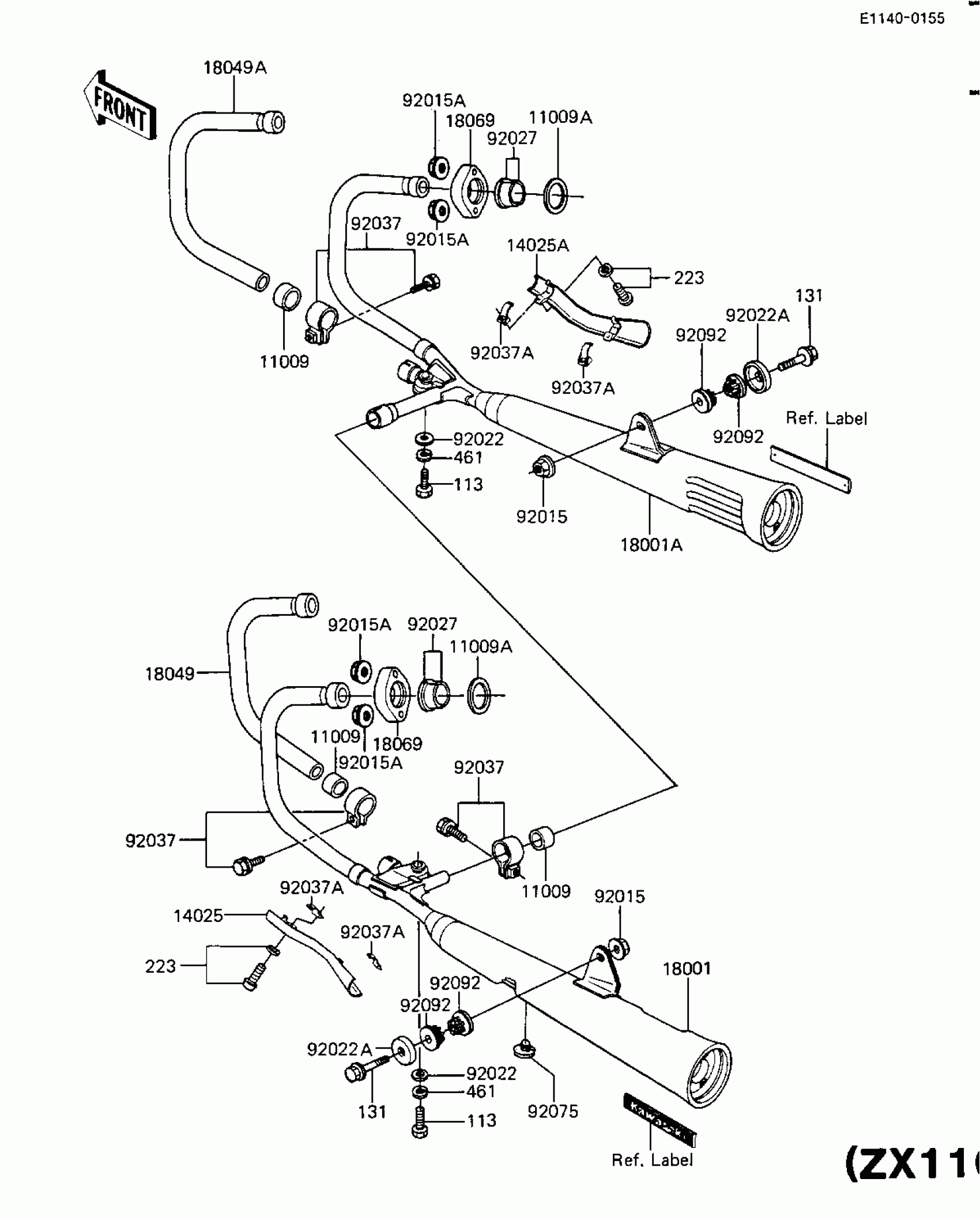

Kawasaki GPz MUFFLERS (ZX1100-A1) Diagram

GASKET,MANIFOLD EXHAUST

GASKET,EXHAUST PIPE

COVER,MUFFLER,LH,BLAC

COVER,MUFFLER,RH,BLAC

MUFFLER,LH BLACK

MUFFLER,R.H.BLACK

PIPE-EXHAUST,#2,BLACK

PIPE-EXHAUST,#3,BLACK

HOLDER-EXHAUST PIPE

NUT,FLANGED,10MM

NUT,LOCK,8MM,BLACK

WASHER,10.5X22X4.5

WASHER,CUP TYPE,BLACK

COLLAR,EXHAUST PIPE,B

CLAMP,MUFFLER,BLACK

CLAMP,MUFFLER COVER

DAMPER

UNAVAILABLE IN PRICE BOOK

BOLT,FLANGED,10X70

BOLT-FLANGED,10X55,BLACK

SCREW-PAN-WS-CROS,6X20

WASHER SPRING 10MM
