Description

Price

11034

BRACKET,HEAD LIGHT

23064-022

Unavailable

13091

HOLDER,HEAD LAMP SOCK

13091-1036

$19.27

23004

LAMP-HEAD

23004-1151

$555.92

23006

RIM-LAMP

23006-1051

Unavailable

23007

LENS-COMP

23007-1041

$242.66

49016

COVER,HEAD LAMP SOCKE

49016-1023

$14.81

92001

BOLT,UPSET-WP,6X22

92002-1262

Unavailable

92009

SCREW,PAN HEAD,5X12

23019-023

$5.43

92009A

SCREW,4MM,FOCUS ADJUST

92009-1047

$4.92

92015

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

92015A

NUT,5MM

23020-023

Unavailable

92022

WASHER,4.1X8X0.8

23021-004

$2.91

92022A

WASHER,PLAIN,5MM

23021-012

$5.43

92027

COLLAR,FUEL TANK FITT

92027-1134

$10.28

92027A

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92075

DAMPER

92160-1007

$5.52

92075A

DAMPER RUBBER,RR FENR

92075-209

$4.69

92081

SPRING,HEAD LAMP LENS

92081-1103

$4.61

115

BOLT-SMALL-UPSET 8X25

115G0825

$5.05

186

BOLT

186B0614

$0.96

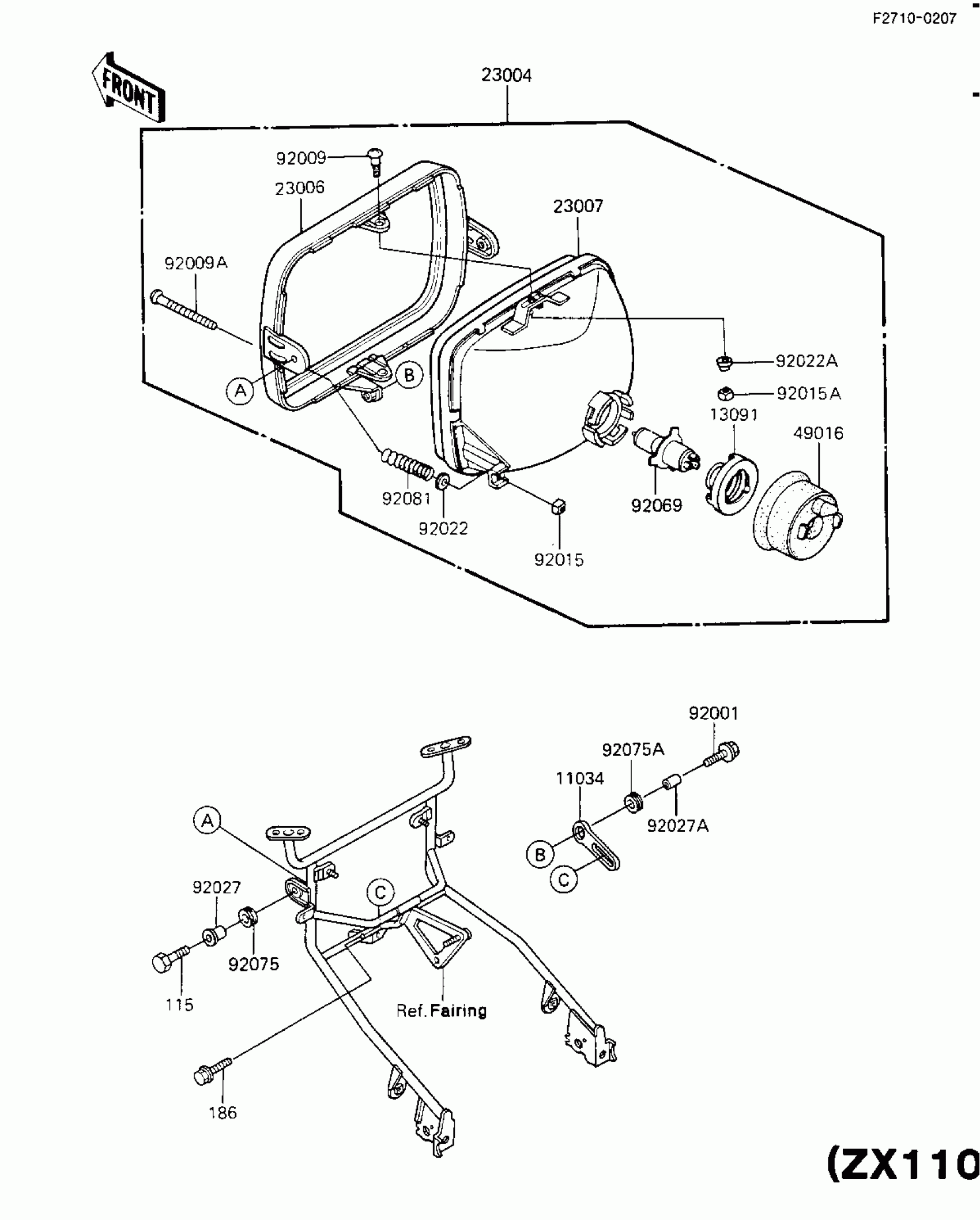

Kawasaki GPz HEADLIGHT (ZX1100-A2) Diagram

BRACKET,HEAD LIGHT

HOLDER,HEAD LAMP SOCK

LAMP-HEAD

RIM-LAMP

LENS-COMP

COVER,HEAD LAMP SOCKE

BOLT,UPSET-WP,6X22

SCREW,PAN HEAD,5X12

SCREW,4MM,FOCUS ADJUST

NUT,4MM,FOCUS ADJUST

NUT,5MM

WASHER,4.1X8X0.8

WASHER,PLAIN,5MM

COLLAR,FUEL TANK FITT

COLLAR,6.8X10X12

BULB,12V 60/55W,H4

DAMPER

DAMPER RUBBER,RR FENR

SPRING,HEAD LAMP LENS

BOLT-SMALL-UPSET 8X25

BOLT
