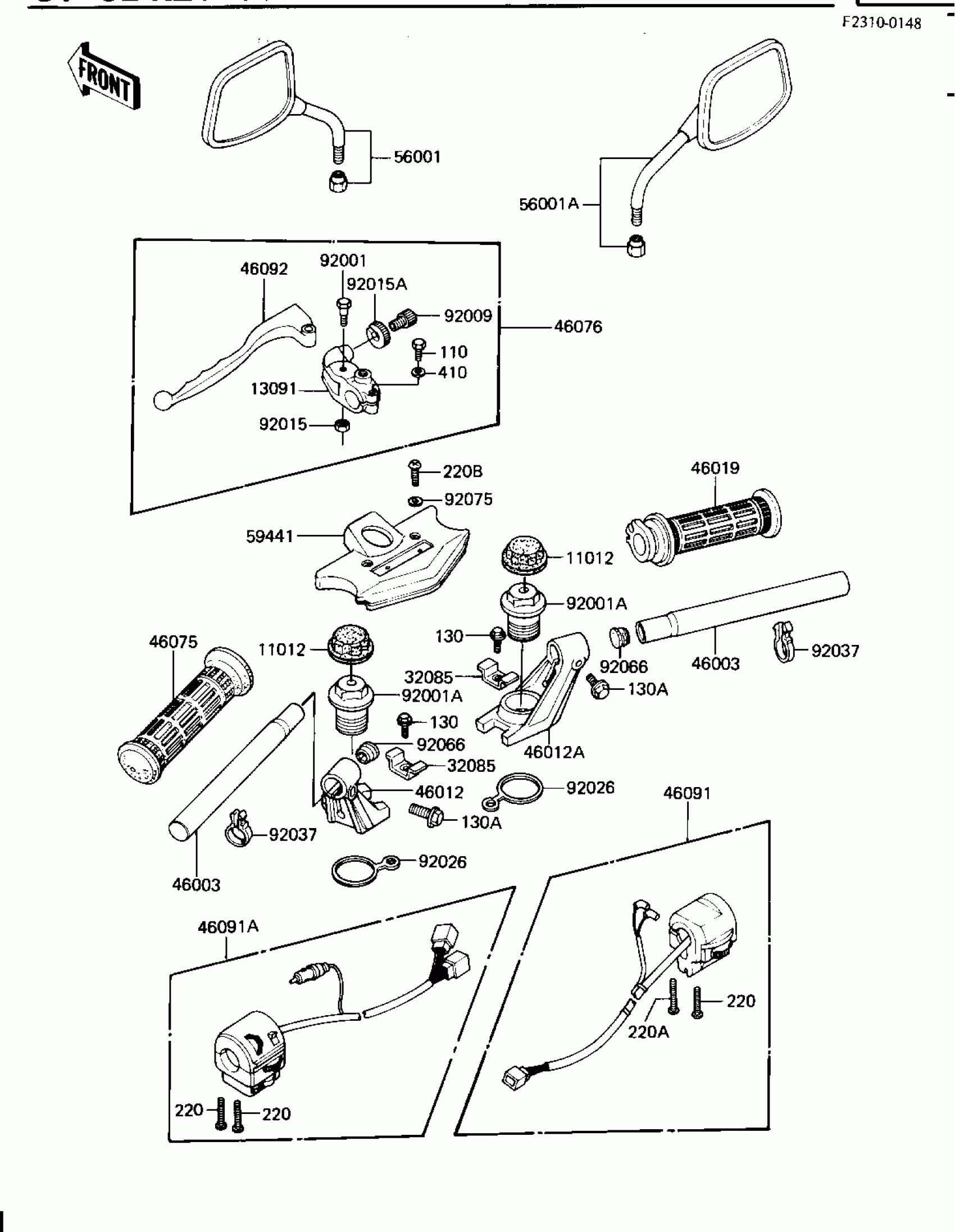

Kawasaki GPz HANDLEBAR (KZ1100-B2) Diagram
#
Description
Price
11012
CAP,BOLT,PP,BLACK
11012-1250
Unavailable
13091
HOLDER,CLUTCH LEVER,F.BLACK
13091-1046
$50.69
32085
STOPPER
32085-1092
Unavailable
46003
HANDLEBAR
46003-1094
$71.67
46012
HOLDER-HANDLE,LH
46012-1022
$301.23
46012A
HOLDER-HANDLE,RH
46012-1023
$174.12
46019
GRIP-ASSY,THROTTLE
46019-1015
$51.06
46075
GRIP,LH
46075-1022
$16.96
46076
LEVER-ASSY-GRIP,CLUTC
46076-1026
Unavailable
46091
HOUSING-ASSY-CNTRL,RH
46091-1214
Unavailable
46091A
HOUSING-ASSY-CNTRL,LH
46091-1228
Unavailable
46092
LEVER-GRIP,CLUTCH
46092-1024
Unavailable
56001
MIRROR-ASSY,LH
56001-1352
Unavailable
56001A
MIRROR-ASSY,RH
56001-1353
Unavailable
59441
COVER-HANDLE
59441-1004
Unavailable
92001
BOLT,CLUTCH LEVER,BLACK
92001-1548
$8.47
92001A
BOLT,FLANGED,34X40,BL
92001-1563
Unavailable
92009
SCREW,CABLE ADJUST,8MM,BLACK
92009-1134
$15.16
92015
NUT,LOCK,6MM,BLACK
92015-1191
Unavailable
92015A
NUT,CABLE ADJUST LOCK,8MM,BLK
92015-1197
$9.91
92026
SPACER,HANDLE HOLDER
92026-1116
Unavailable
92037
CLAMP,ID=16,PP
92037-1334
Unavailable
92066
PLUG
92066-1093
$5.17
92075
WASHER,PLAIN,4MM
23058-002
$2.49
110
BOLT,6X22,BLACK
110C0622
$4.37
130
BOLT-FLANGED,6X16,BLACK
130J0616
$1.92
130A
BOLT-FLANGED,8X25
130S0825
$2.74
220
SCREW-PAN-CROS
220B0535
$3.70
220A
SCREW-PAN-CROS
220B0540
$3.41
220B
SCREW-PAN-CROS
220C0430
$3.57
