Description

Price

11009

GASKET,FUEL GAUGE

11009-1037

Unavailable

11009A

GASKET-FUEL COCK JNT.

92065-081

$5.64

14025

COVER,FUEL GAUGE

14024-1434

$35.39

51001B

TANK-COMP-FUEL,F.RED

51001-5348-B1

$1,357.26

51001C

TANK-COMP-FUEL,G.SILV

51001-5349-F2

$785.29

51001D

TANK-COMP-FUEL,F.RED

51001-5353-B1

$501.77

51001E

TANK-COMP-FUEL,G.SILV

51001-5354-F2

Unavailable

51023

TAP-ASSY-FUEL

51023-1101

Unavailable

51049

CAP-TANK,FUEL

51049-1097

$138.28

52005

GAUGE,FUEL

52005-1039

Unavailable

92001

BOLT,FUEL GAUGE

92001-1069

$7.24

92015

FUEL COCK JOINT NUT

51035-009

Unavailable

92022

WASHER,10.5X26X2.3

92022-044

$3.92

92022A

WASHER,5.3X10X0.8

92022-1038

$3.65

92027

COLLAR,FLANGED,8.8X10.6

92027-1653

$10.28

92055

RING-O

92055-1023

$3.92

92075

DAMPER,FUEL TANK

92075-125

$6.22

92075A

DAMPER,FUEL TANK,RR

92075-1459

Unavailable

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

183

BOLT 8X25

183B0825

Unavailable

220

SCREW PAN HEAD 5X10

220B0510

$0.69

670

O RING,10MM

670B2010

$1.50

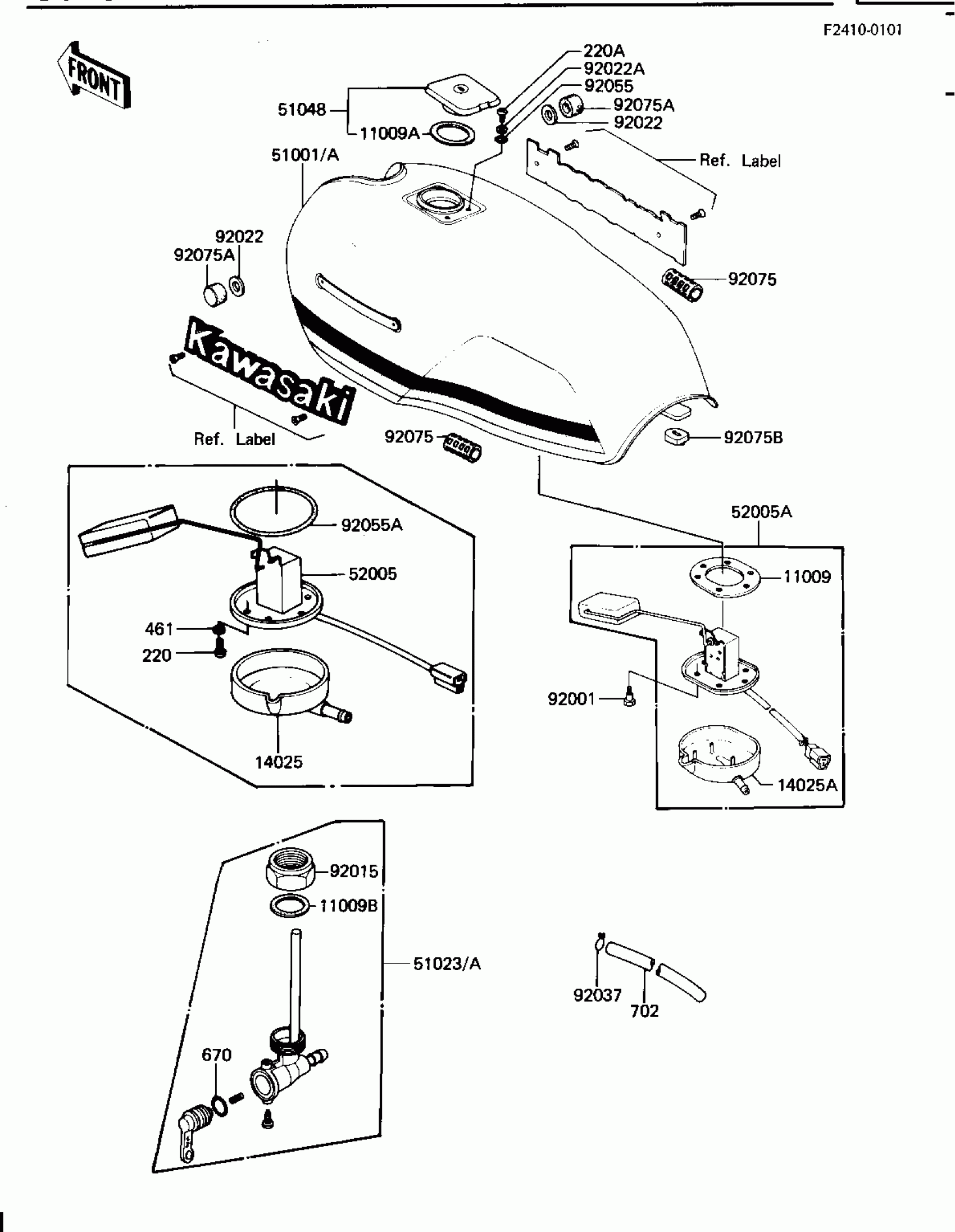

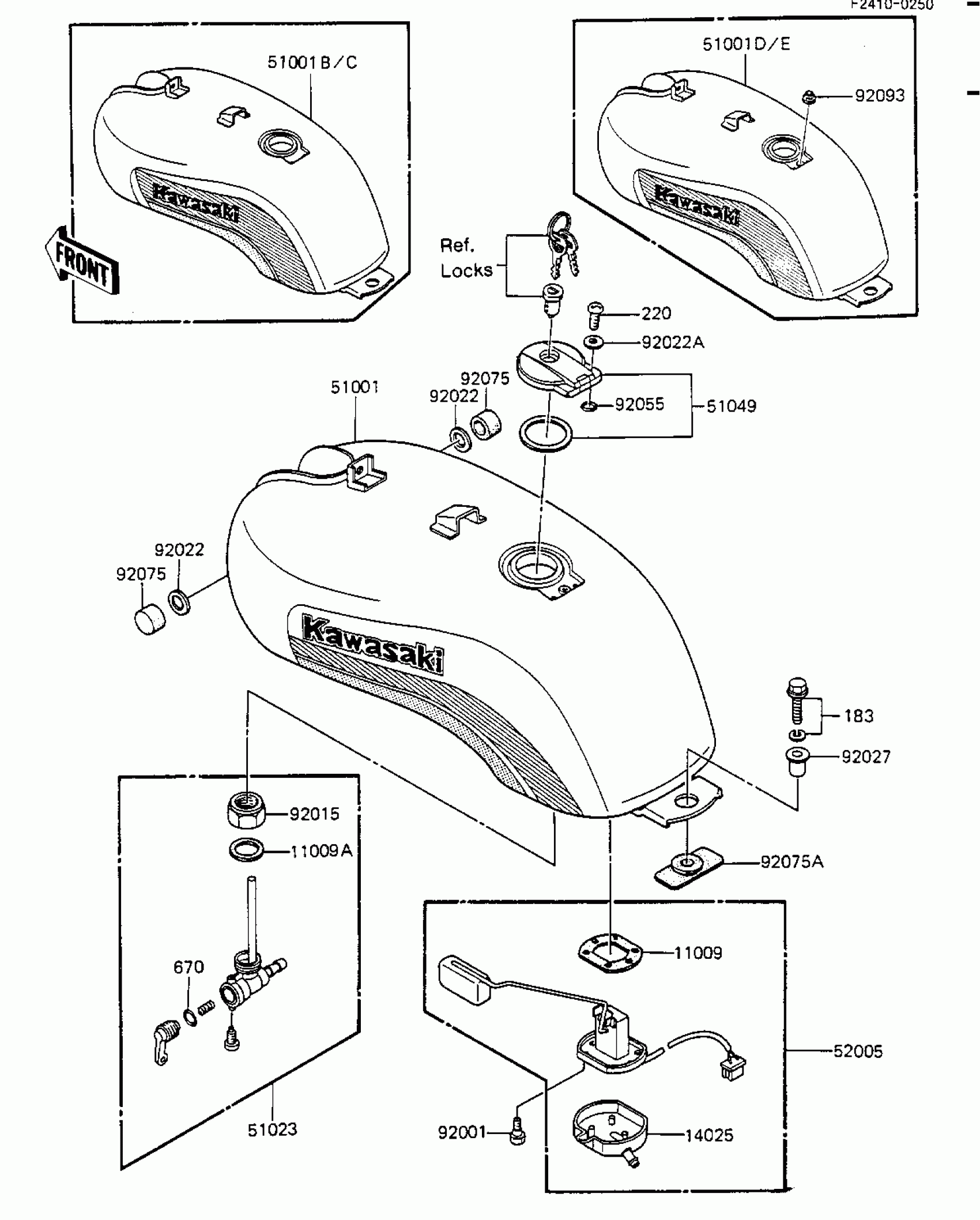

Kawasaki GPz FUEL TANK Diagram

GASKET,FUEL GAUGE

GASKET-FUEL COCK JNT.

COVER,FUEL GAUGE

TANK-COMP-FUEL,F.RED

TANK-COMP-FUEL,G.SILV

TANK-COMP-FUEL,F.RED

TANK-COMP-FUEL,G.SILV

TAP-ASSY-FUEL

CAP-TANK,FUEL

GAUGE,FUEL

BOLT,FUEL GAUGE

FUEL COCK JOINT NUT

WASHER,10.5X26X2.3

WASHER,5.3X10X0.8

COLLAR,FLANGED,8.8X10.6

RING-O

DAMPER,FUEL TANK

DAMPER,FUEL TANK,RR

SEAL,FUEL TANK CAP

BOLT 8X25

SCREW PAN HEAD 5X10

O RING,10MM
