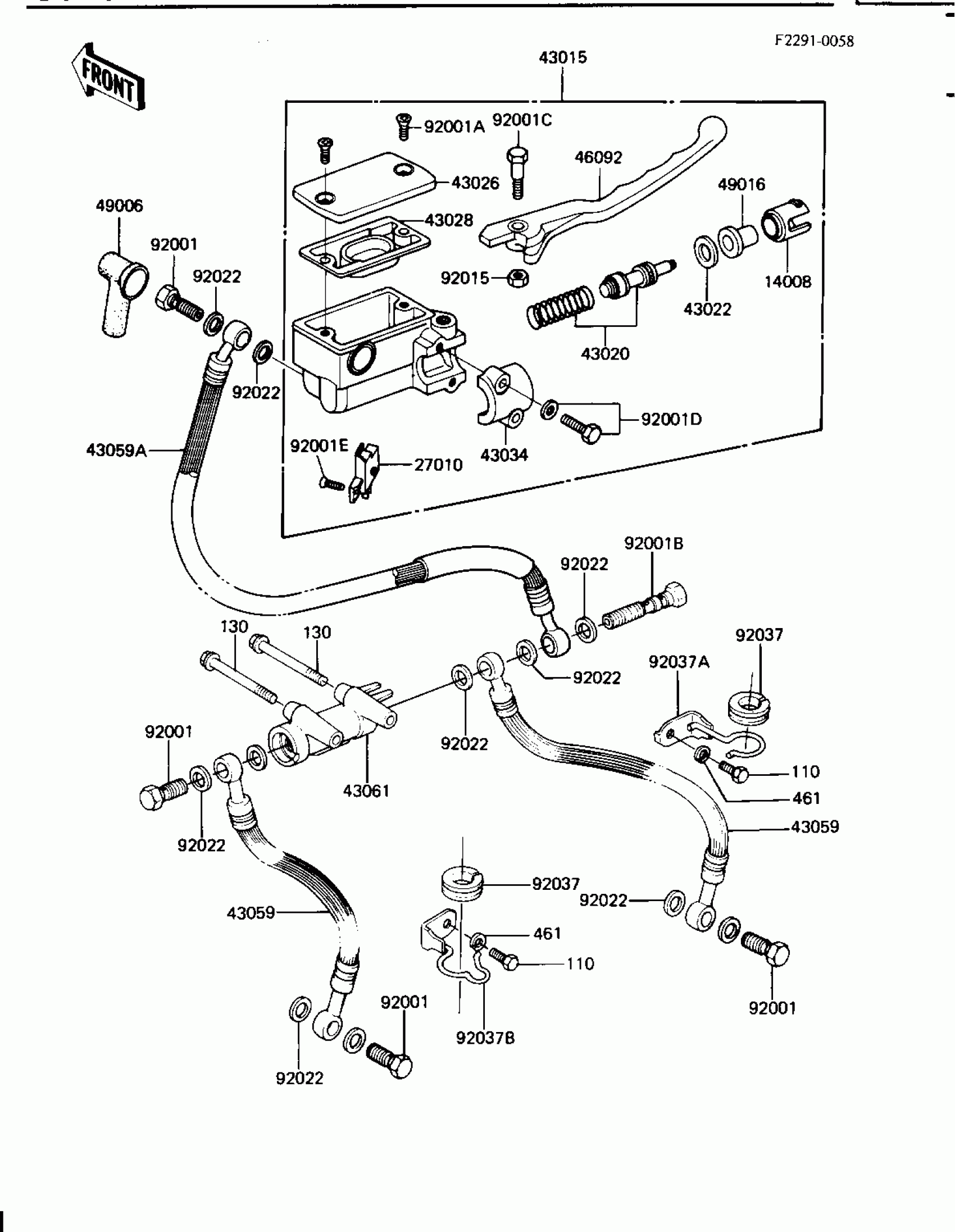

Kawasaki GPz FRONT MASTER CYLINDER (KZ1100-B2) Diagram
#
Description
Price
14008
LINER,PISTON
14008-1035
$12.10
27010
SWITCH,BRAKE
27010-1056
$44.98
43015
CYLINDER-ASSY-MASTER
43015-1085
Unavailable
43020
PISTON-COMP-BRAKE
43020-1079
$88.18
43022
STOPPER-BRAKE,PISTON
43022-1009
$5.78
43026
CAP-BRAKE,FRONT
43026-1017
Unavailable
43028
DIAPHRAGM,MASTER CYLINDER
43028-1029
$27.51
43034
HOLDER-BRAKE,MASTER C
43034-1013
Unavailable
43059
HOSE-BRAKE,FR,L=550
43059-1198
Unavailable
43059A
HOSE-BRAKE,FR,L=360
43059-1133
$85.34
43061
JOINT-BRAKE
43061-1004
$72.14
46092
LEVER-GRIP,MASTER CYL
46092-1026
$29.84
49006
BOOT,DUST
49006-1067
$9.88
49016
COVER-SEAL,BRAKE PISTON
49016-1041
$10.85
92001
BOLT,OIL,L=23
92002-1888
$5.48
92001A
SCREW-CSK-CROS,5X12,BLACK
92001-1055
$5.84
92001B
BOLT,OIL,L=37
92002-1909
$11.83
92001C
BOLT,6X37.3,BLACK
92001-1512
$9.90
92001D
BOLT,6X25,W/WASHER,BLACK
92001-1513
Unavailable
92001E
SCREW-CSK-CROS,4X10,BLACK
92001-1532
$4.87
92015
NUT,LOCK,6MM,BLACK
92015-1191
Unavailable
92022
WASHER,10.5X15X1.5
43067-001
$2.15
92037
GROMMET,HOSE CLAMP
43064-006
$4.31
92037A
CLAMP,BRAKE HOSE,RH
92037-1217
$13.79
92037B
CLAMP,BRAKE HOSE,LH,BLACK
92037-1296
$29.22
110
BOLT, 6X12, BLACK
112C0612
$2.53
130
BOLT-FLANGED,6X60
130G0660
$4.16
461
WASHER-SPRING,6MM,BLACK
461K0600
$0.64
