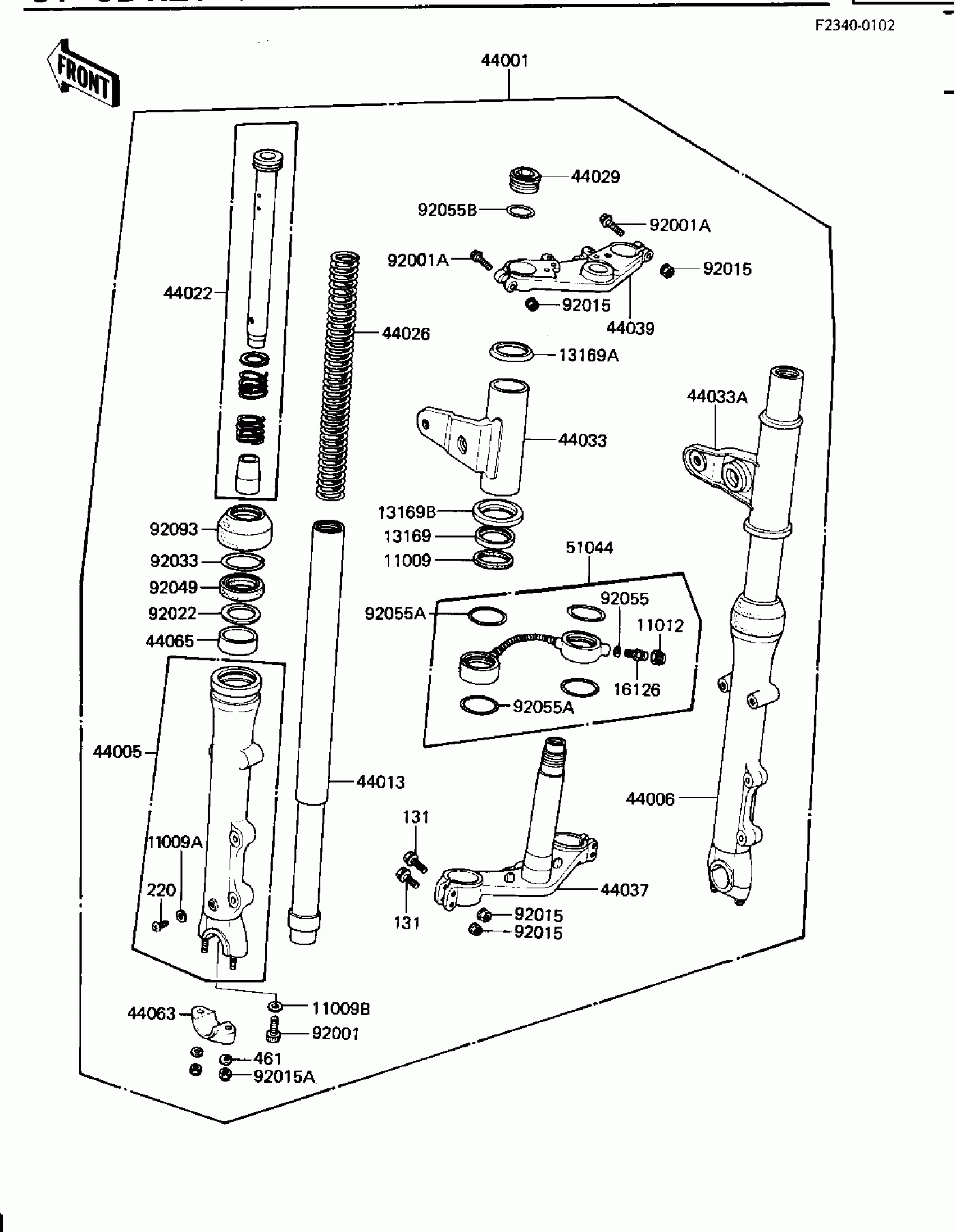

Kawasaki GPz FRONT FORK (KZ1100-B2) Diagram

#

Description
Price

11009

GASKET,FORK COVER

11009-1015

Unavailable

11009A

GASKET,FORK DRAIN PLUG

44045-002

$5.18

11009B

GASKET

44045-057

$4.86

11012

CAP,AIR VALVE

11012-1241

$18.24

13169

WASHER,FRK COVER GIDE

13169-1020

Unavailable

13169A

PLATE,FORK COVER,UPP

13169-1498

Unavailable

13169B

PLATE,FORK COVER,LWR

13169-1499

Unavailable

16126

VALVE,AIR

16126-1052

$35.06

44001

FORK-FRONT

44001-1338

$1,223.89

44005

TUBE,LH,FORK OUTER

44005-1094

Unavailable

44006

TUBE,RH,FORK OUTER

44006-1094

$309.26

44013

PIPE-FORK INNER,INNER

44013-1094

$554.80

44022

CYLINDER-FORK

44022-1063

$69.20

44026

SPRING-FRONT FORK

44026-1147

$62.61

44029

SEAT-FORK SPRING

44029-1036

$23.14

44033

COVER-FORK-LH,F.BLACK

44033-1085

$162.34

44033A

COVER-FORK,RH,F.BLACK

44033-1086

$162.34

44037

HOLDER-FORK UNDER

44037-1072

$462.32

44039

HOLDER-FORK UPPER

44039-1052

$213.90

44063

HOLDER-FRONT AXLE

44063-1006

$43.82

44065

BUSHING-FRONT FORK,OUTER TUBE

44065-1091

$25.96

51044

TUBE-ASSY,AIR,FORK

51044-1021

$219.72

92001

BOLT,SOCKET,FORK CYLINDER

44041-040

$6.57

92001A

BOLT,FLANGED,8X57,BLA

92001-1572

Unavailable

92015

NUT,FLANGED,8MM

92015-1408

$5.38

92015A

NUT,U,8MM,BLACK

92015-1205

Unavailable

92022

WASHER,FORK OUTER PIPE

92022-1262

$8.60

92033

RING-SNAP,FORK

92033-1047

$6.46

92049

SEAL-OIL,FORK OUTER TUBE

92049-1295

$22.14

92055

"0" RING,AIR VALVE

92055-1094

$1.28

92055A

RING-O,ROD

92055-1369

$10.14

92055B

RING-O,FORK SPRING SEAT

92055-1135

$7.55

92093

SEAL

92093-1051

$43.03

131

BOLT-FLANGED,8X55,BLA

131J0855

$2.75

220

SCREW PAN HEAD 4X8

220B0408

$0.67

461

WASHER-SPRING,8MM,BLACK

461K0800

$2.33
